Katool KT-X77 7,700 lb Mid-Rise Scissor Lift
Katool KT-X77 7,700 lb Mid-Rise Scissor Lift - Warehouse Pickup is backordered and will ship as soon as it is back in stock.
Ships fast. Enter your ZIP for a delivery date.
Save $150 Today
Up To15% OffUp to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.
Katool KT-X77 7,700 lb Mid-Rise Scissor Lift
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
Description

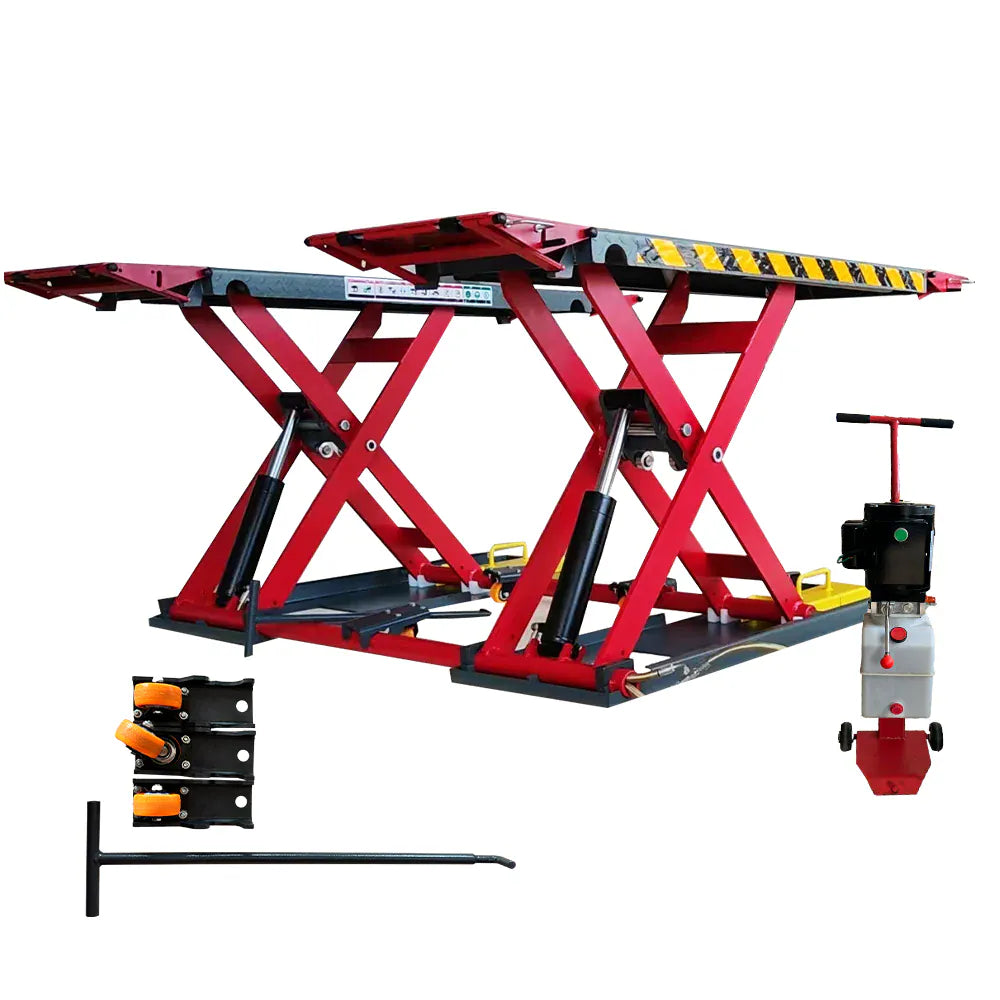

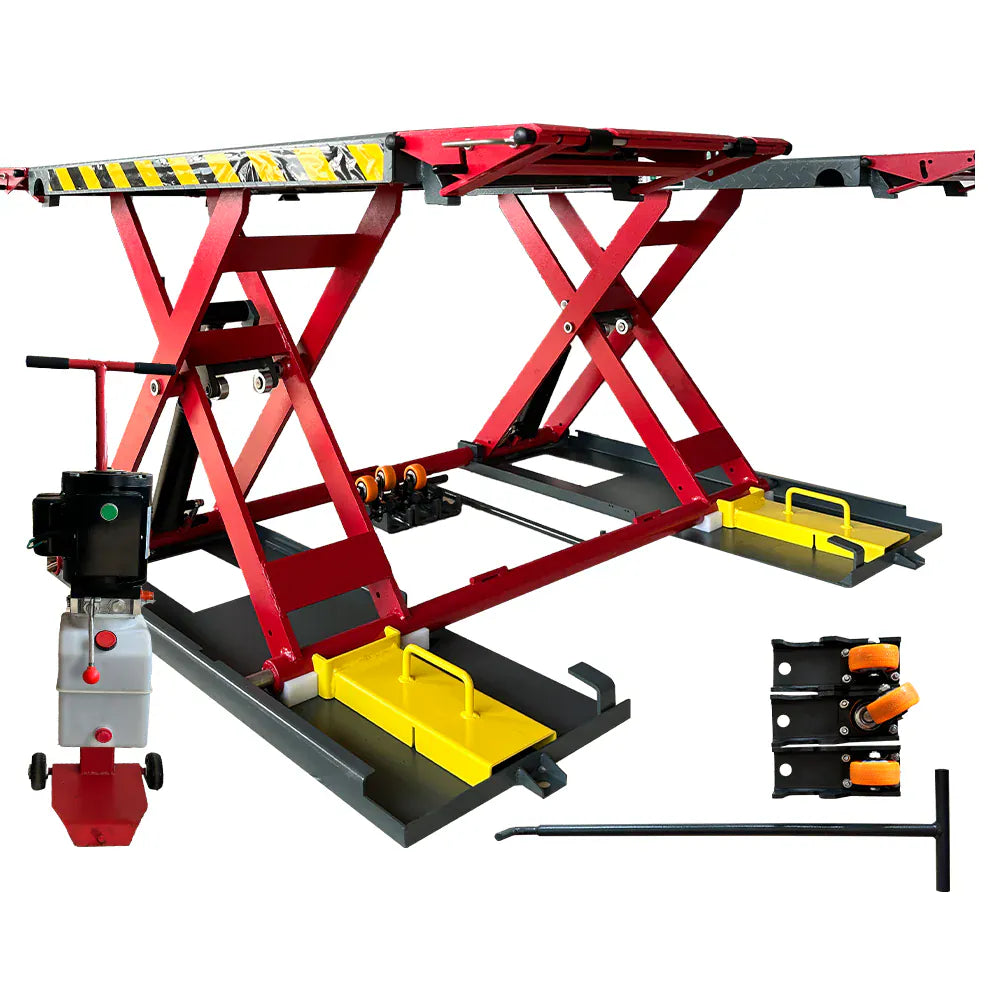

The Katool KT-X77 is a mid-rise scissor lift built for daily under-car service work — brake jobs, tire rotations, oil changes, exhaust inspections, and routine maintenance. Rated at approximately 7,700 lb capacity with a ~39.4" maximum lift height and a low ~4.3" lowered profile, the X77 fits cars, SUVs, and light trucks while leaving enough working room to keep technicians off the floor.

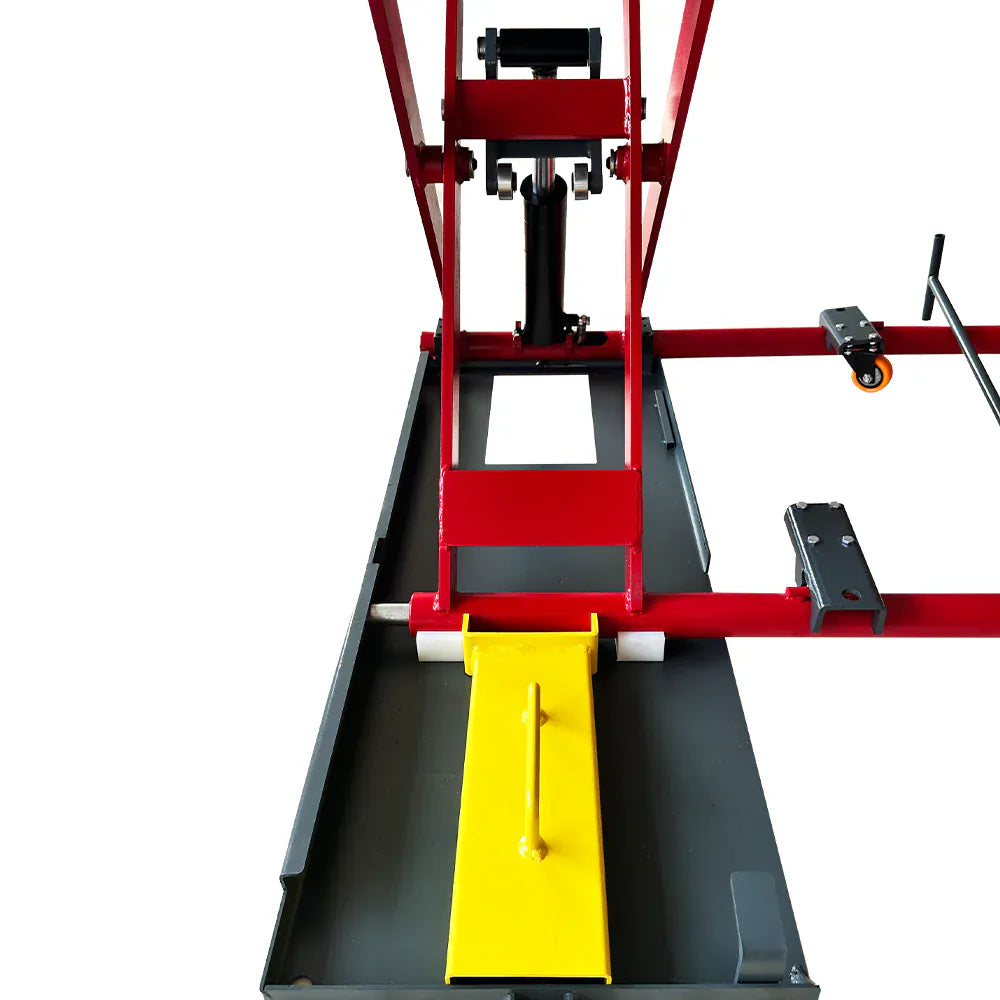

Construction is heavy-gauge alloy steel scissor framing paired with a hydraulic cylinder and an electric power unit mounted on a rolling cart. The drive-on platform includes sliding extension panels for variable wheelbases, and a built-in mechanical locking system holds the lift at working height during service. Descent is controlled through the power unit's hydraulic safety release.
Features
- Heavy-duty reinforced alloy steel scissor frame
- Mid-rise lift height suited for routine maintenance and service work
- Smooth hydraulic lifting for consistent operation across daily cycles

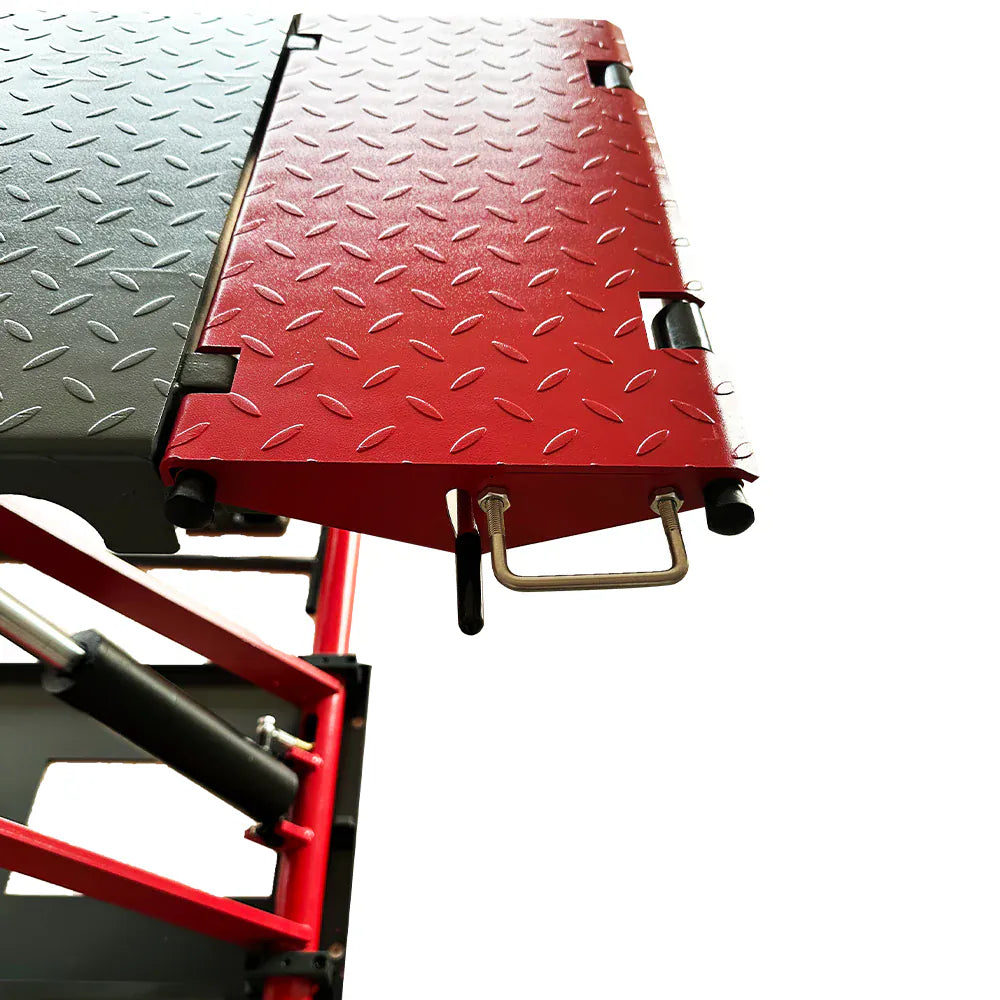

- Wide drive-on platform with sliding extension panels for varied wheelbases
- Low-profile ~4.3" lowered height for easy vehicle entry
- Electric power unit on a mobile cart with rolling handle
- Built-in mechanical safety lock with controlled hydraulic release
- Compatible with cars, SUVs, and light trucks
Specifications
| Katool KT-X77 Mid-Rise Scissor Lift Specifications | |
|---|---|
| Model | KT-X77 |
| Product Type | Mid-Rise Drive-On Scissor Lift |
| Lifting Capacity | ~7,700 lbs |
| Maximum Lifting Height | ~39.4" (1,000 mm) |
| Minimum Lowered Height | ~4.3" (110 mm) |
| Platform Length | ~78" (1,980 mm) |
| Overall Width | ~63" (1,600 mm) |
| Material | Heavy-duty alloy steel |
| Power | Electric 110V (30A breaker); 220V variant available — call to specify |
| Operation | Electric lift with hydraulic safety release |
| Safety | Built-in mechanical locking system |
| Shipping Weight | ~1,300 lbs |
| Vehicle Compatibility | Cars, SUVs, and light trucks |
