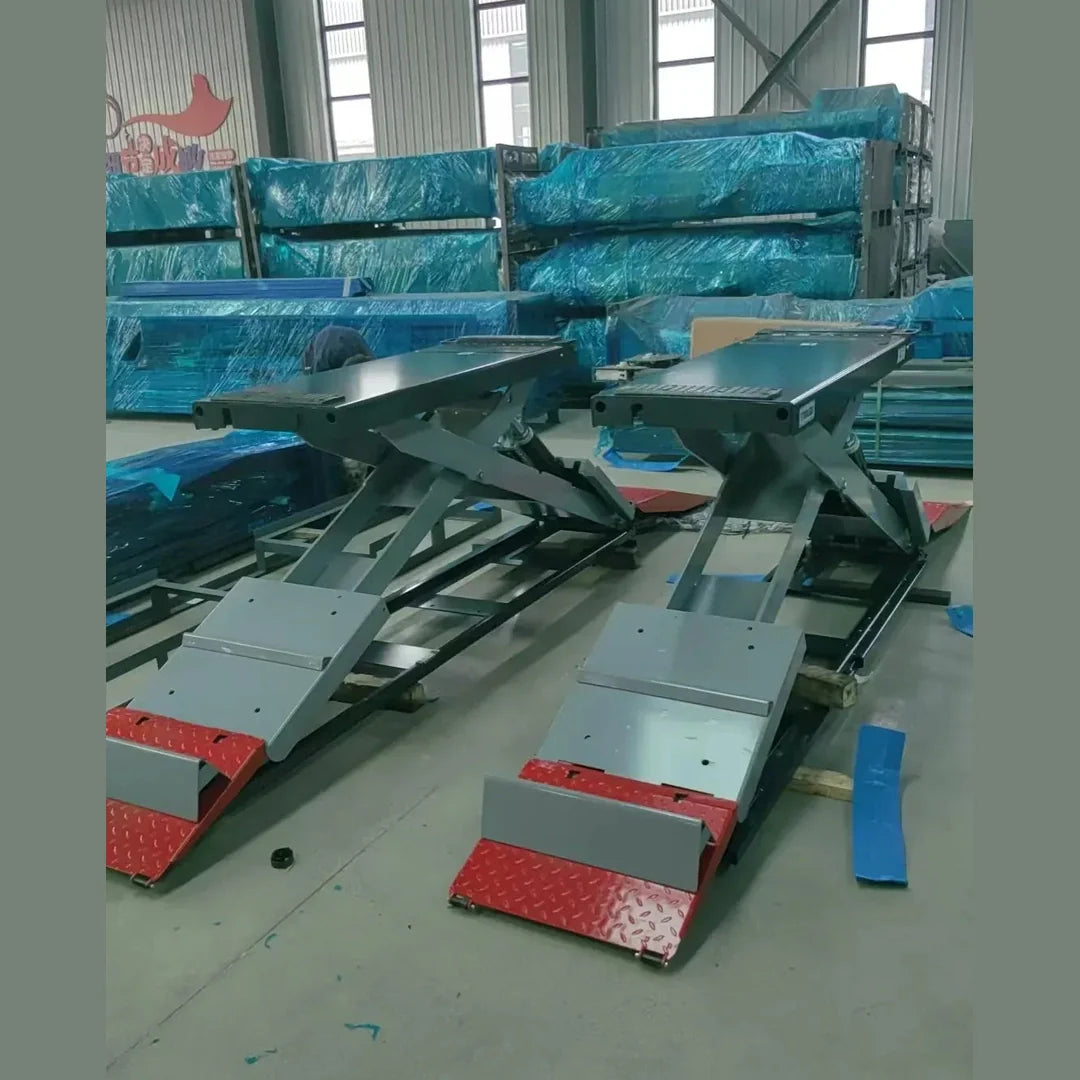

Katool KT-X99 Full-Rise Scissor Lift — 7,700 lb Capacity, 76" Lift Height
Katool KT-X99 Full-Rise Scissor Lift — 7,700 lb Capacity, 76" Lift Height - Warehouse Pickup is backordered and will ship as soon as it is back in stock.
Ships fast. Enter your ZIP for a delivery date.
Save $150 Today
Up To15% OffUp to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.
Katool KT-X99 Full-Rise Scissor Lift — 7,700 lb Capacity, 76" ...
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
Description

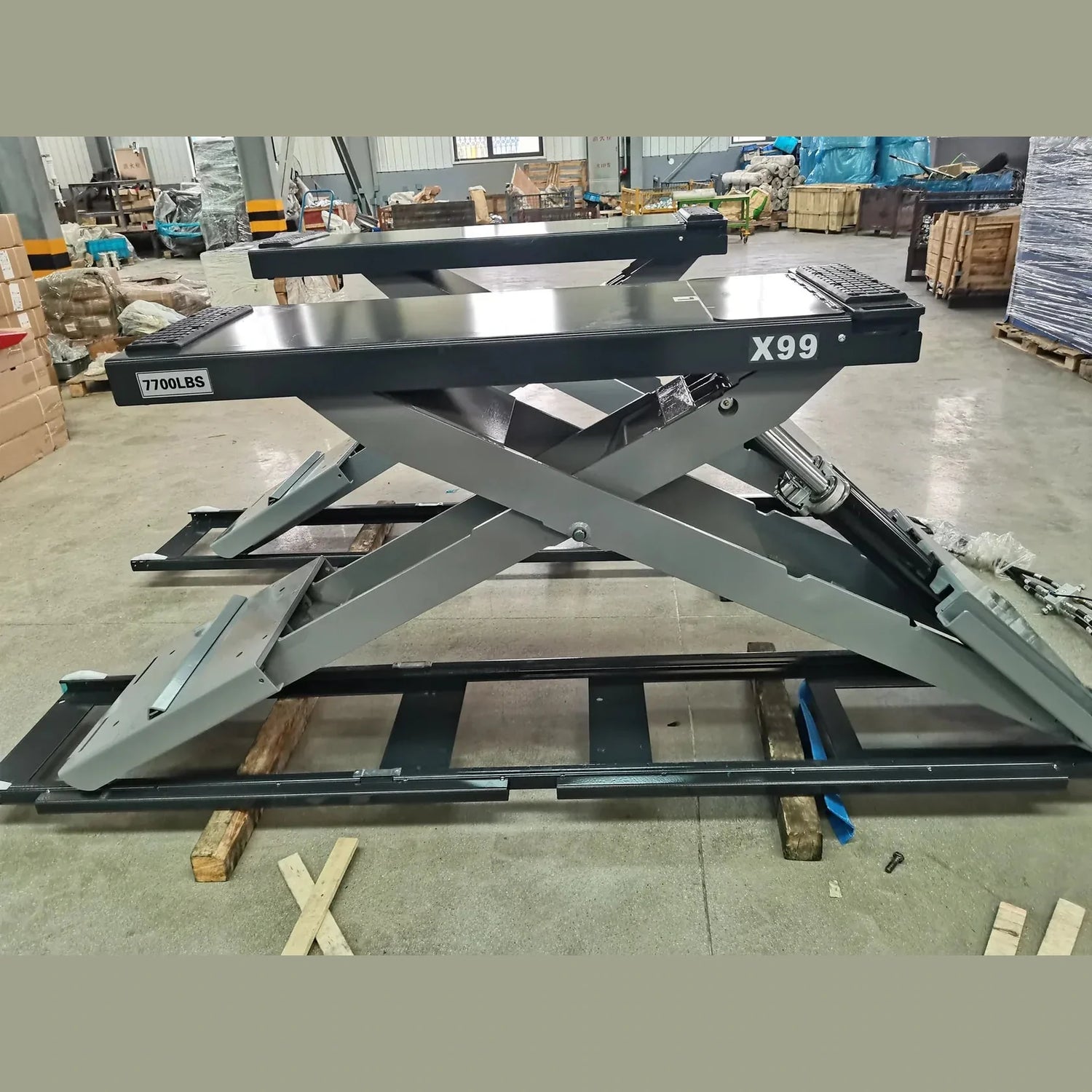

The Katool KT-X99 is a heavy-duty full-rise hydraulic scissor lift built for professional service shops, collision centers, tire bays, and serious enthusiasts who need full undercarriage access without the column footprint of a two-post lift. Rated at 7,700 lb capacity with a 76" maximum lift height, the X99 raises cars, SUVs, and light trucks high enough to stand and work beneath comfortably — the difference between a stooped-over mid-rise and a true full-rise.

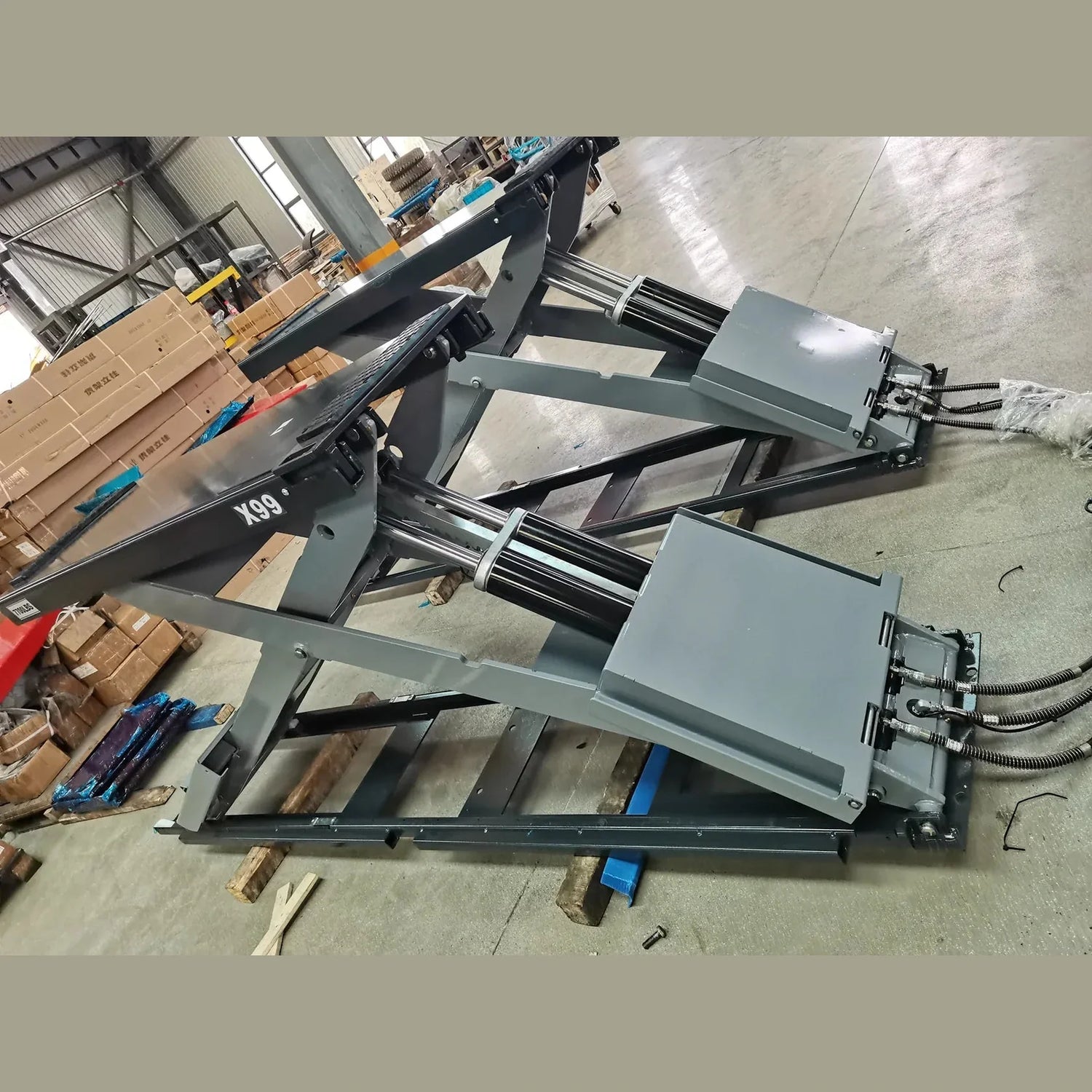

The drive-on platforms sit at 4.5" low-profile when fully retracted, so vehicles roll on without long external ramps fighting low aero. A 2.0 HP electric-hydraulic power unit drives the cylinders at 2,200 PSI for a 30–40 second raise/lower cycle. Multi-position mechanical safety locks hold the lift at any working height, and the welded high-strength steel frame is finished in rust-resistant powder coat (grey and red).
Features
- 7,700 lb (4,082 kg) lifting capacity — covers passenger cars, SUVs, and most light trucks
- 76" maximum lift height — full-rise travel for upright work on exhaust, brakes, suspension, and drivetrain
- 4.5" minimum drive-on height — low-profile decks accept low cars without external ramps
- Hydraulic power — 2.0 HP motor, 2,200 PSI working pressure, ~30–40 second cycle
- Multi-position mechanical safety locks — positive engagement at multiple working heights
- 110V / 220V electric supply (single-phase standard; three-phase optional)
- Welded high-strength steel construction with rust-resistant powder-coat finish
- Anti-slip platform texture for technician footing while loading
- CE Certified
Specifications
| Katool KT-X99 Full-Rise Scissor Lift Specifications | |
|---|---|
| Lift type | Hydraulic full-rise scissor lift |
| Rated capacity | 7,700 lb (4,082 kg) |
| Maximum lift height | 76" |
| Minimum drive-on height | 4.5" |
| Overall length | 78" |
| Overall width | 52" |
| Platform width | 48" |
| Platform thickness | 1.25" |
| Lift cycle time | ~30–40 seconds raise/lower |
| Power supply | 110V / 220V (single-phase standard; three-phase optional) |
| Motor power | 2.0 HP |
| Operating pressure | 2,200 PSI (151.7 bar) |
| Safety locks | Multi-position mechanical safety lock system |
| Frame construction | High-strength welded steel |
| Finish | Powder-coat (grey & red), rust-resistant |
| Shipping weight | ~1,250 lb (567 kg) |
| Package dimensions | 84" L × 56" W × 28" H |
| Certifications | CE Certified |
| Warranty | 1-year parts / 3-year structural |
Shipping & Logistics
The Katool KT-X99 ships via freight at approximately 1,250 lb in a single crate measuring 84" L × 56" W × 28" H.
