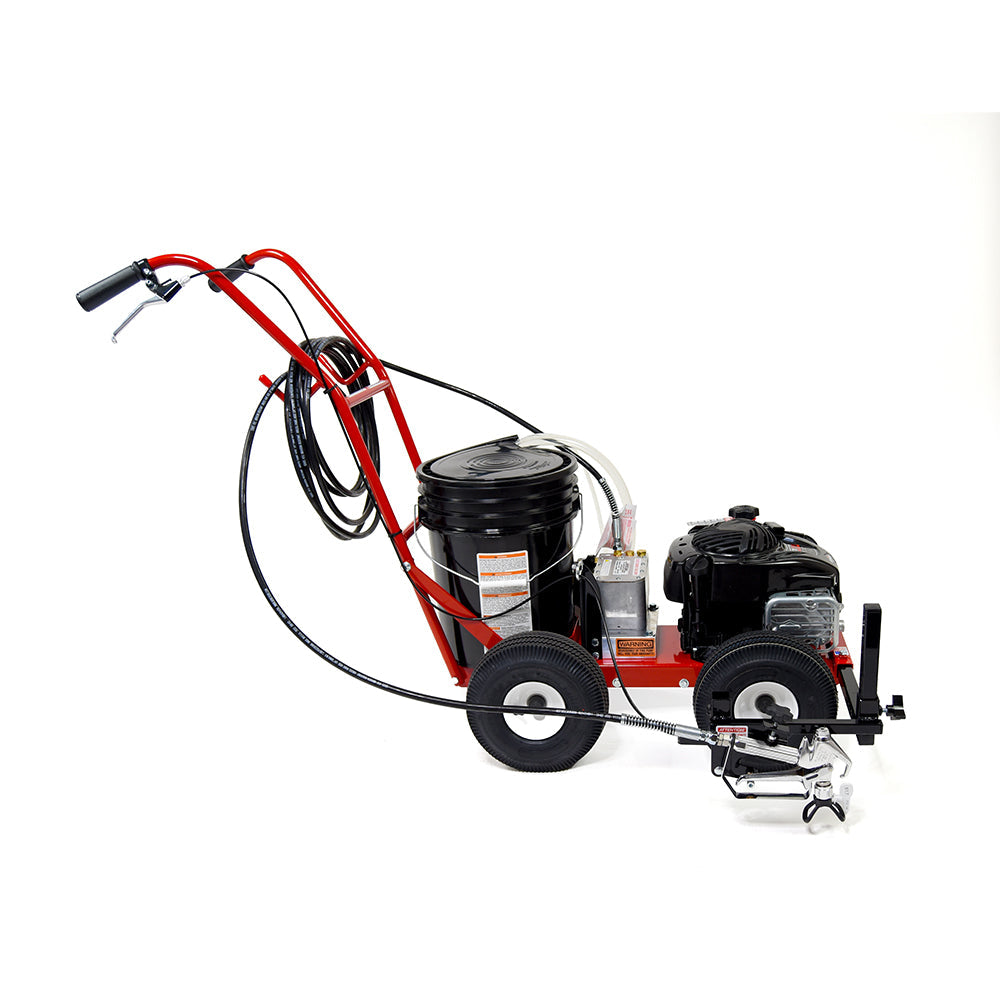

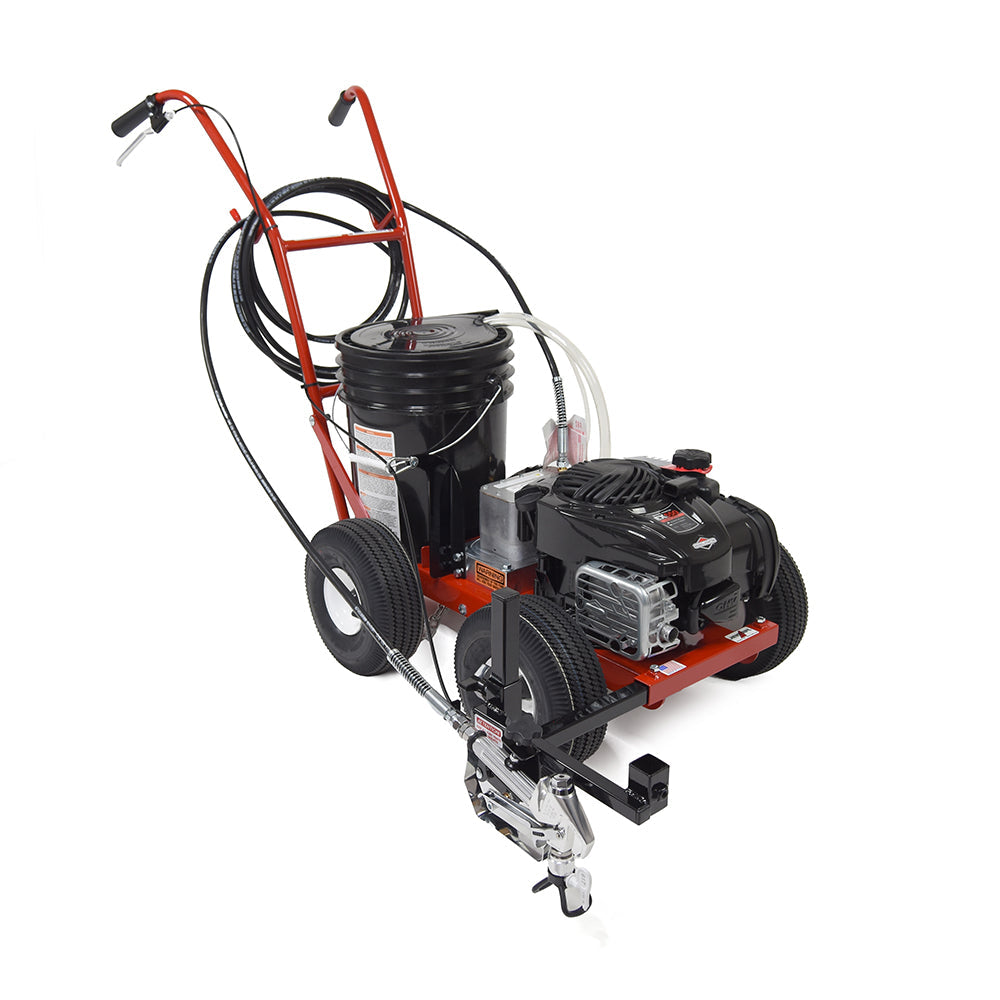

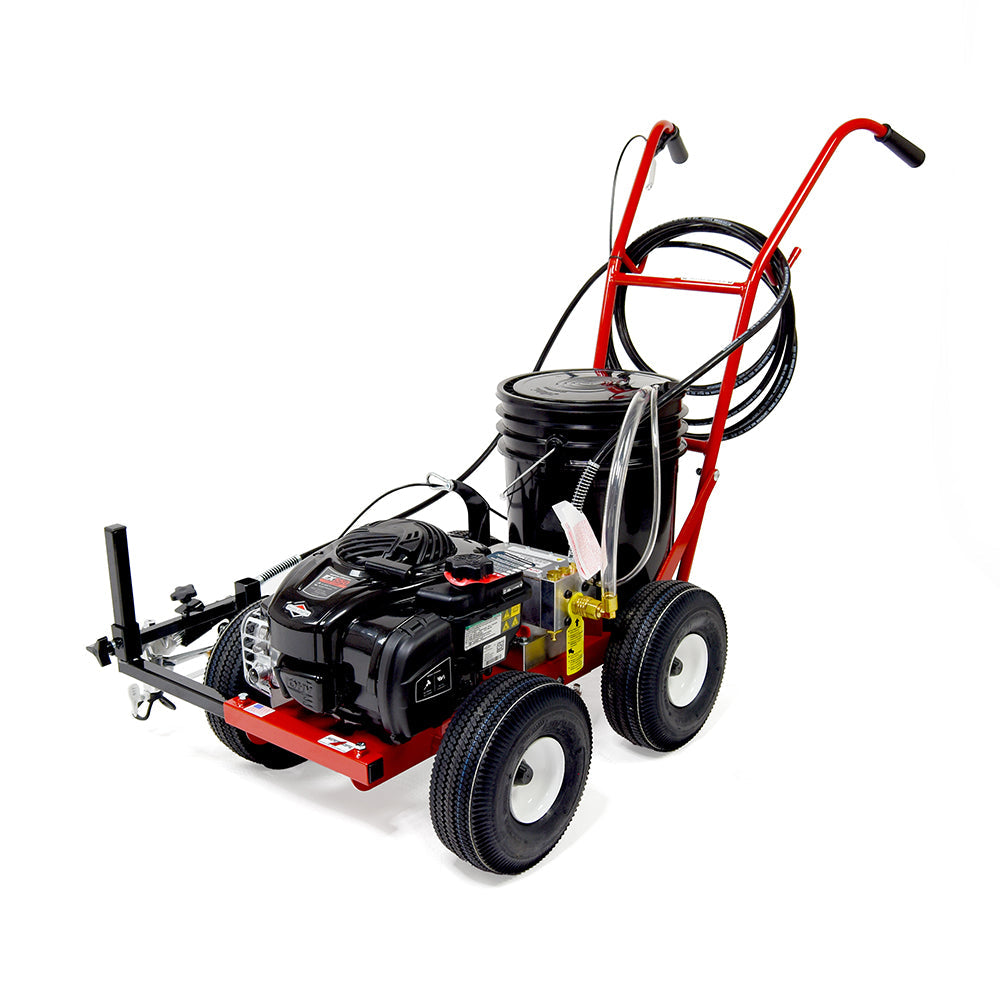

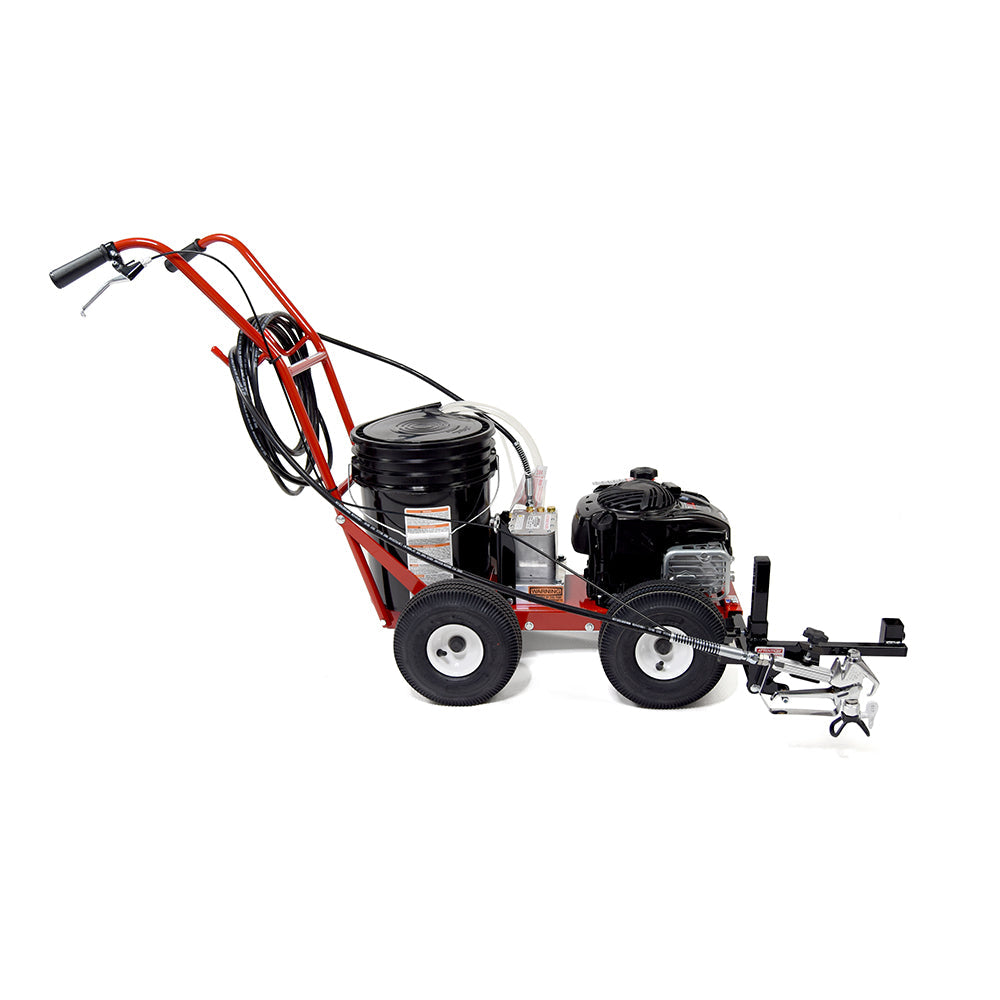

Newstripe 4250 Airless Striping Machine
The Newstripe 4250 Airless Striping Machine delivers airless line striping at 0–3000 PSI for stripe widths of 2 to 6 inches, with a chassis weight of 105 lbs for walk-behind operation across athletic fields, parking lots, pavement, and warehouse floors. Pump pressure is adjustable across the full range to accommodate water-based or oil/solvent-based paint formulations.

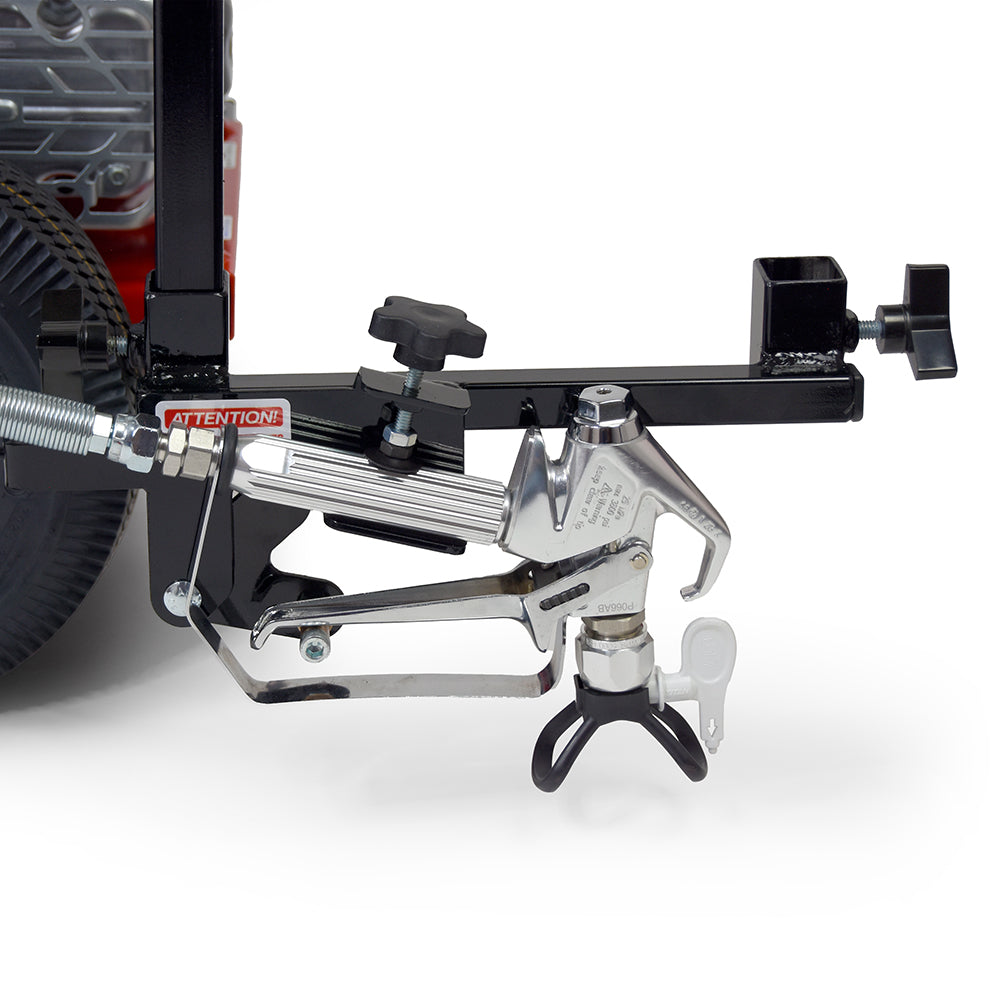

The four-wheel chassis runs on 10-inch pneumatic tires for straight-line tracking on uneven surfaces. The Dual Position Spray Gun Mount supports two configurations: 8 inches in front of the wheels for visible-line offset, or directly next to the front wheels for tight-line work along edges and existing markings.

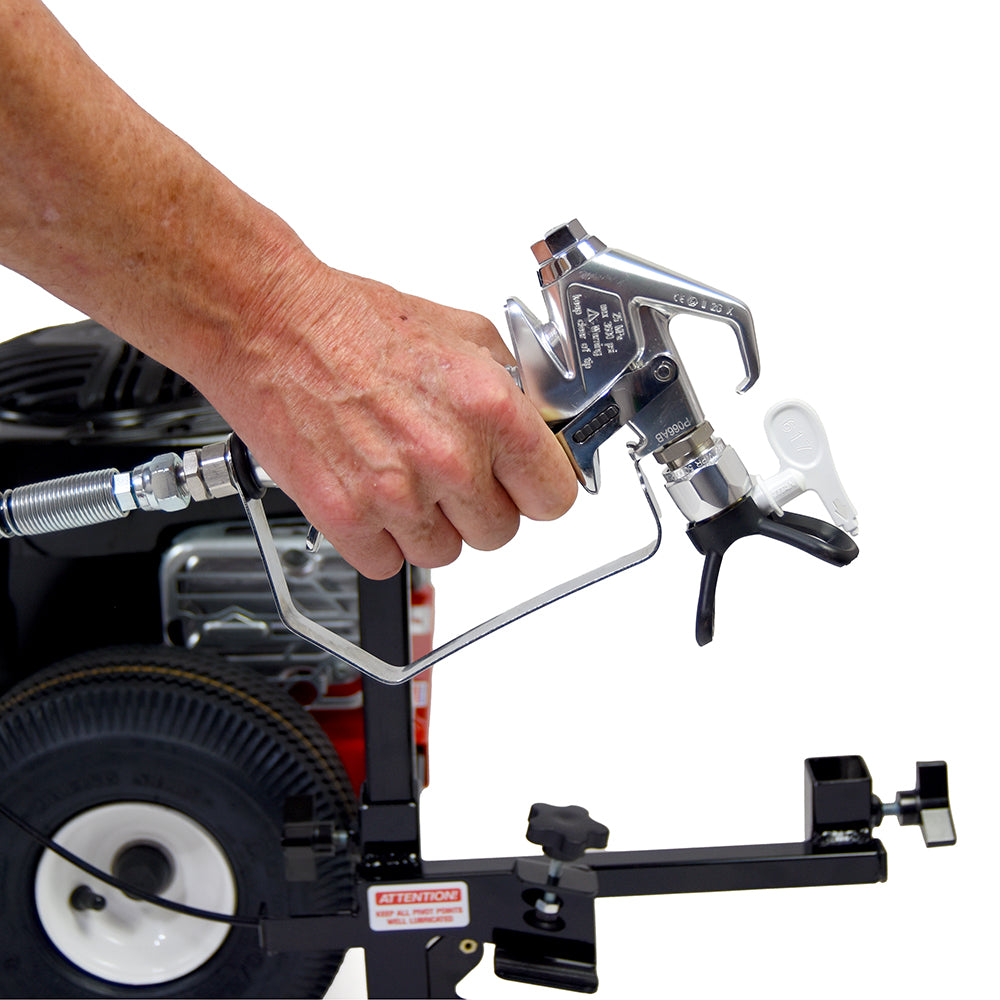

A quick-release clamp removes the spray gun for stencil, curb, and detail work in hard-to-reach areas, with an optional Rear Flip Down Swivel Caster for arc and circle striping. The pump draws directly from standard 5-gallon paint pails and supports water or solvent flush for fast color changes and cleanup.
Features
- 10-inch pneumatic tires for straight-line tracking on uneven surfaces
- Adjustable 0–3000 PSI airless pump for thinned and non-thinned paint
- Compatible with both water-based and oil/solvent-based paints
- User-friendly paint loading system minimizes spills and setup time
- Fast cleanup via pail-swap with water or solvent flush
- Liquid pump protector compatible for storage between jobs
- Quick-release spray gun for stencils, curbs, and detail work
- Optional Rear Flip Down Swivel Caster for arcs and circles
- Suitable for athletic fields, parking lots, pavement, and warehouse floors
Specifications
| APPLICATION | |
|---|---|
| Application | Athletic field striping, pavement and floor striping |
| Propulsion | Walk behind |
| PERFORMANCE | |
| Spray Pump | High pressure airless (0 to 3000 PSI, 0.34 GPM) |
| Paint Capacity | 5 gallon |
| ENGINE | |

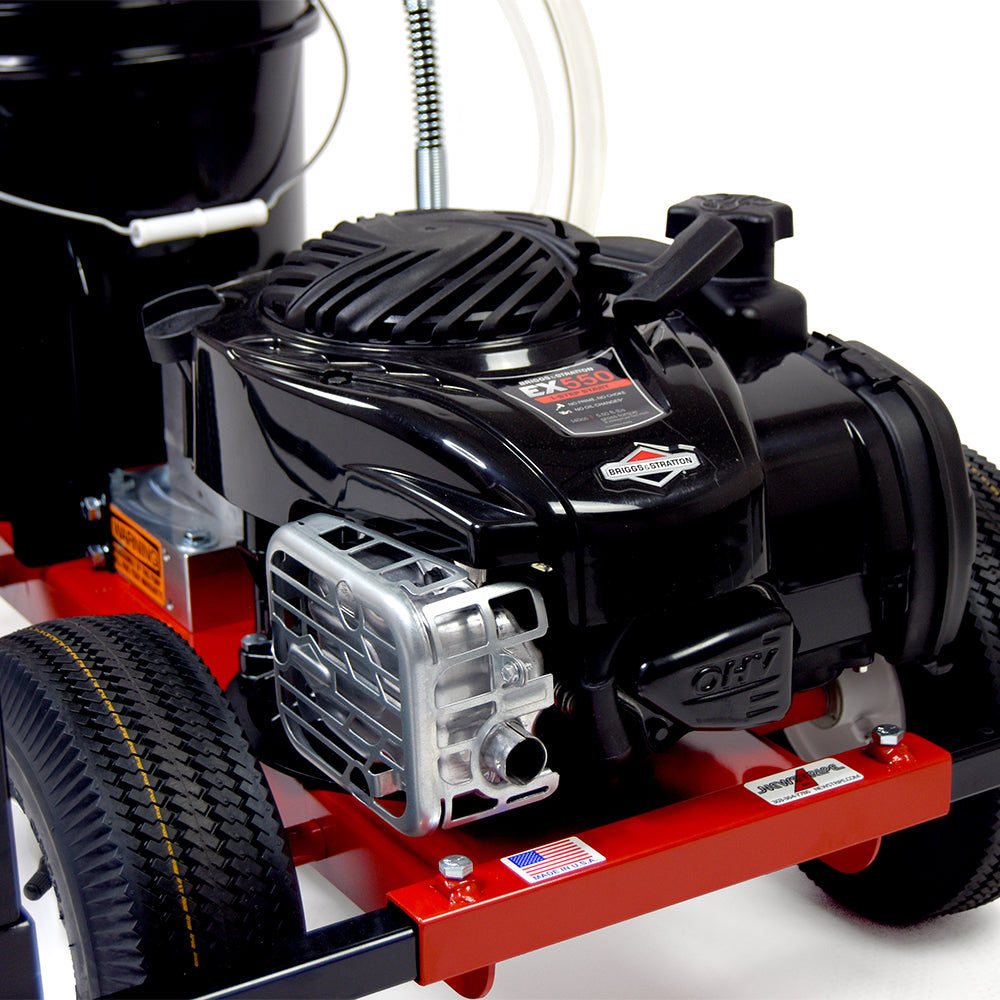

| Engine | Briggs & Stratton EX 550 |
| PHYSICAL | |
| Wheels | 10" pneumatic |
| Dimensions | 53" L × 29" W × 36.5" H |
| Dimensions (Ship) | 37" L × 24" W × 28" H |
| Weight | 105 lbs |
| Weight (Ship) | 120 lbs |
| ORIGIN AND WARRANTY | |
| Origin | Made in the USA |
| Warranty | 24 months |
