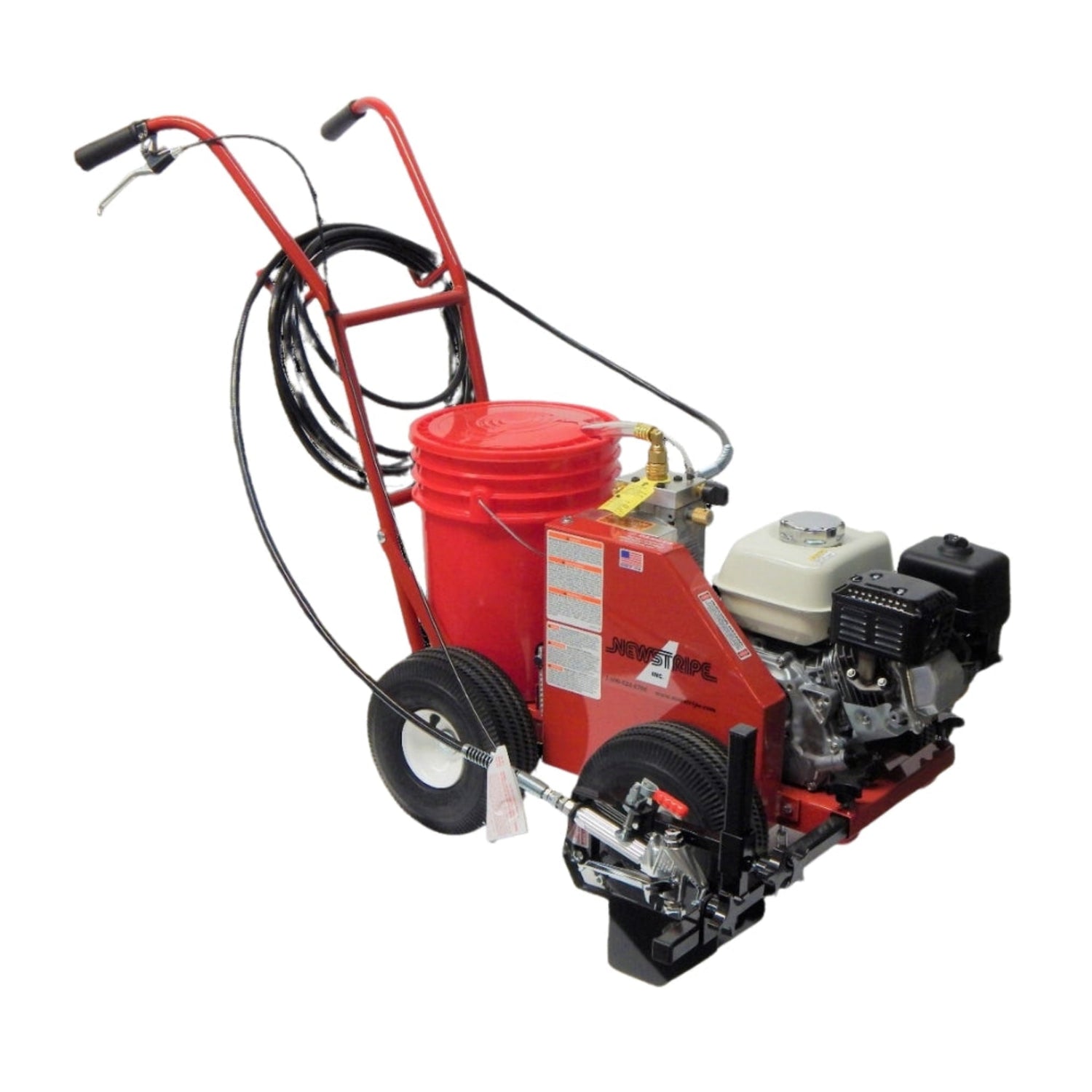

Newstripe 4400 Airless Striping Machine

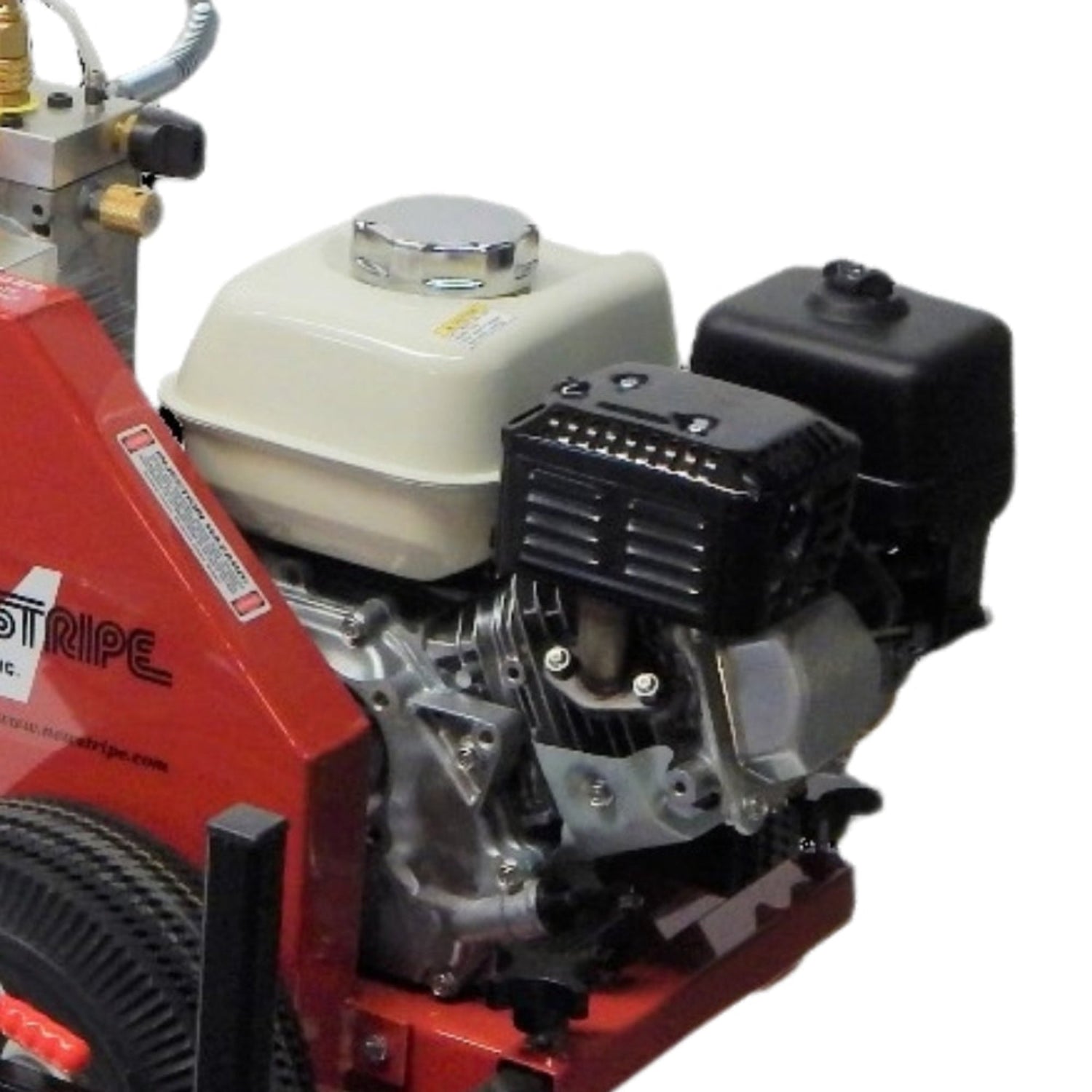

The Newstripe 4400 Airless Striping Machine (CA-Compliant) delivers airless line striping at 0–3000 PSI for stripe widths of 2 to 6 inches. Power comes from a California-compliant Honda GX 120 engine meeting CARB emissions standards for use in California. Pump pressure is adjustable across the full range for thinned or non-thinned paint.
The four-wheel chassis runs on 10-inch pneumatic tires for straight-line tracking on uneven surfaces, with handle-mounted controls for in-stride adjustment. The pump draws directly from standard 5-gallon paint pails fitted with a universal spill-prevention lid, supporting fast pail-swap cleanup via water or solvent flush.

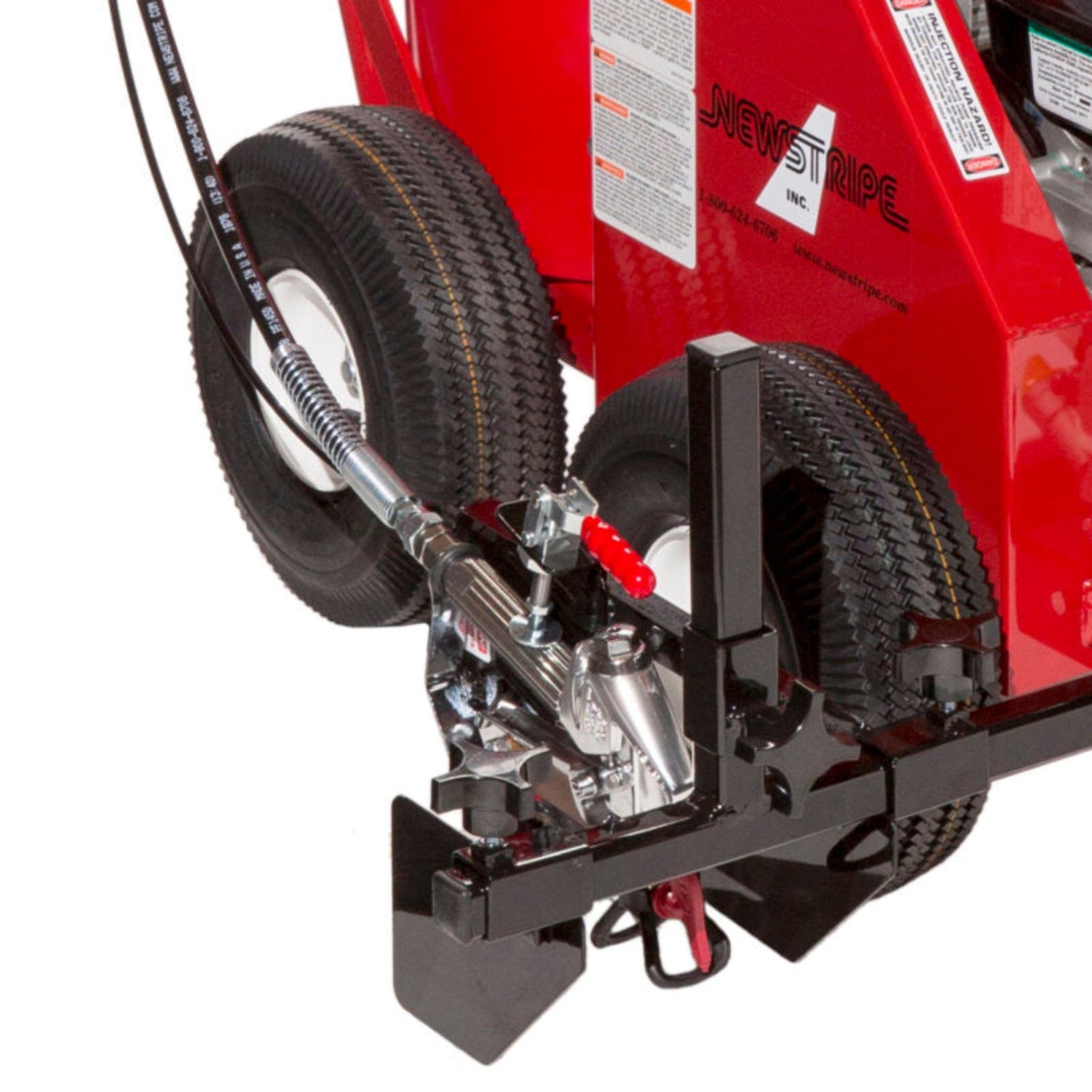

A quick-release clamp removes the spray gun for stencil, curb, and detail work via the included 25-foot hose, with an optional Rear Flip Down Swivel Caster for arc and circle striping. HashMark Master accessory compatible. Compatible applications include athletic fields, parking lots, and floor marking.
Features
- 10-inch pneumatic tires and 4-wheel design for straight lines on uneven surfaces
- Adjustable 0–3000 PSI airless pump for thinned and non-thinned paint
- Stripe widths from 2" to 6"
- Draws paint directly from standard 5-gallon pails with universal spill-prevention lid
- Fast cleanup via pail-swap with water or solvent flush
- Liquid pump protector compatible for storage between jobs
- Quick-release spray gun with 25-foot hose for stencils, curbs, and detail work
- Optional Rear Flip Down Swivel Caster for arcs and circles
- HashMark Master accessory compatible for 5x faster hash marking
- Suitable for athletic fields and parking lot striping
| APPLICATION |
| Application |
Athletic field striping, pavement and floor striping |
| Propulsion |
Walk behind |
| PERFORMANCE |
| Spray Pump |
High pressure airless (0 to 3000 PSI, 0.44 GPM) |
| ENGINE |
| Engine |
Honda GX 120 |
| PHYSICAL |
| Dimensions |
53" L × 32" W × 37" H |
| Dimensions (Ship) |
57" L × 25" W × 44" H |
| Weight |
125 lbs |
| Weight (Ship) |
170 lbs |
| ORIGIN AND WARRANTY |
| Origin |
Made in the USA |
| Warranty |
36 months |
