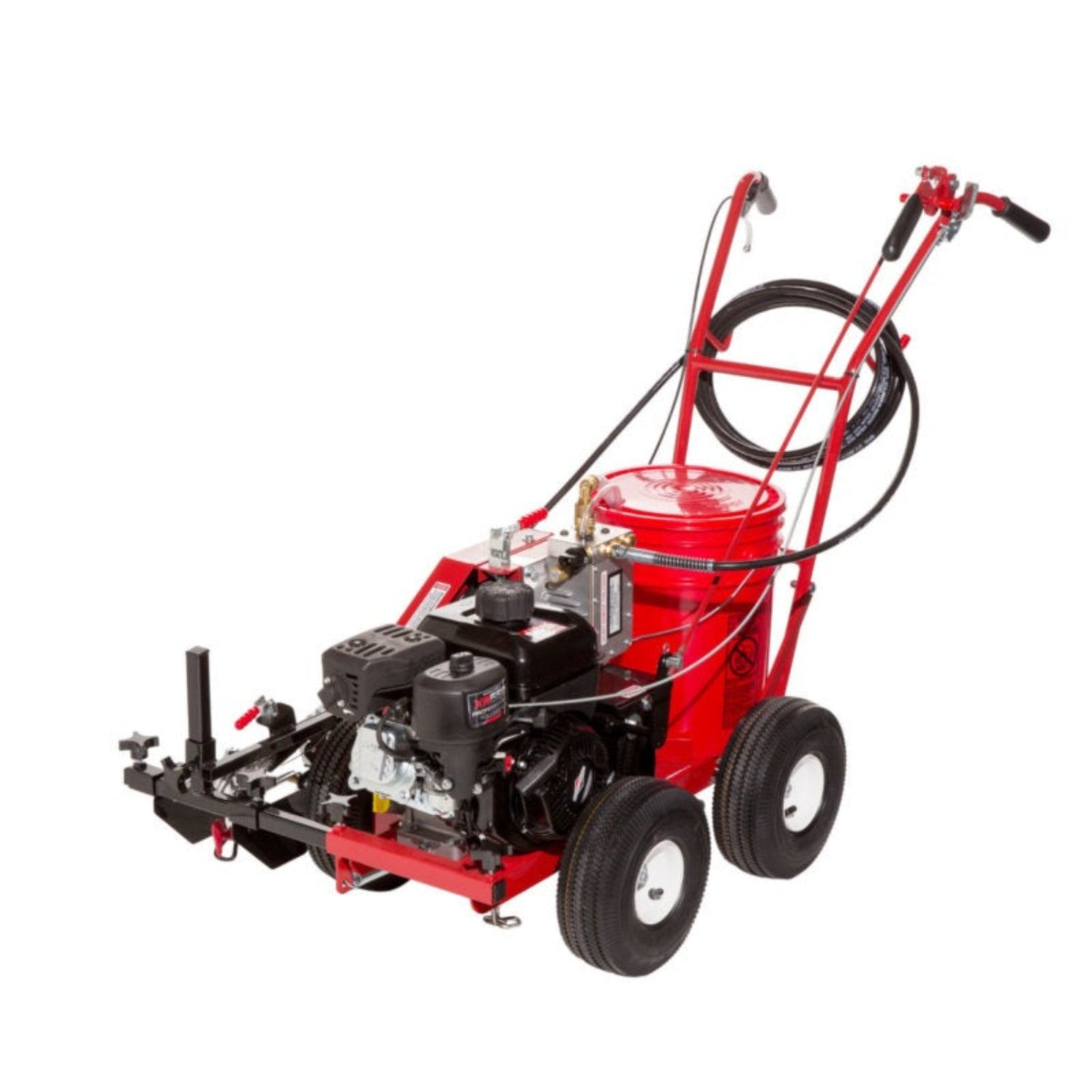

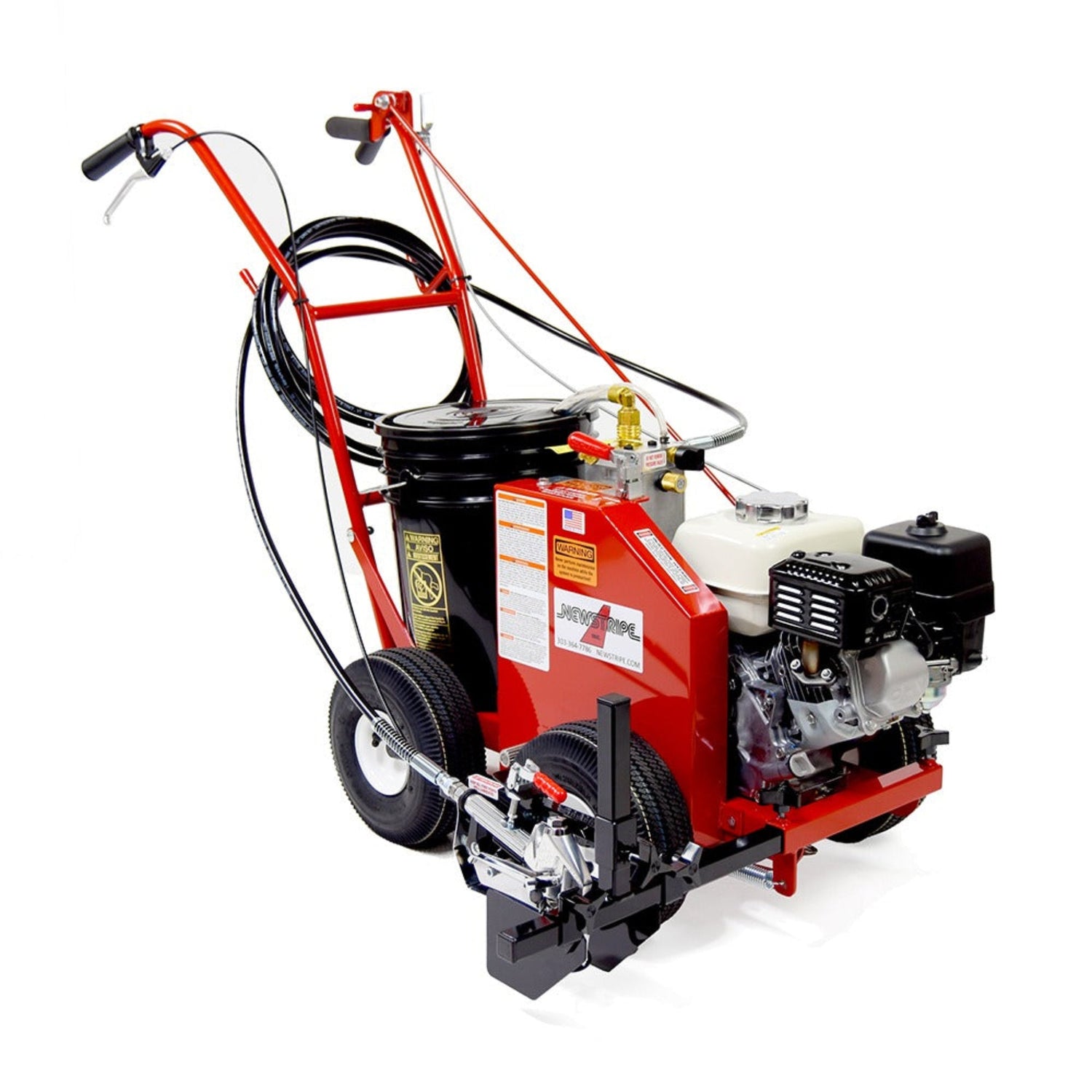

Newstripe 4600 SP Airless Self-Propelled Striping Machine

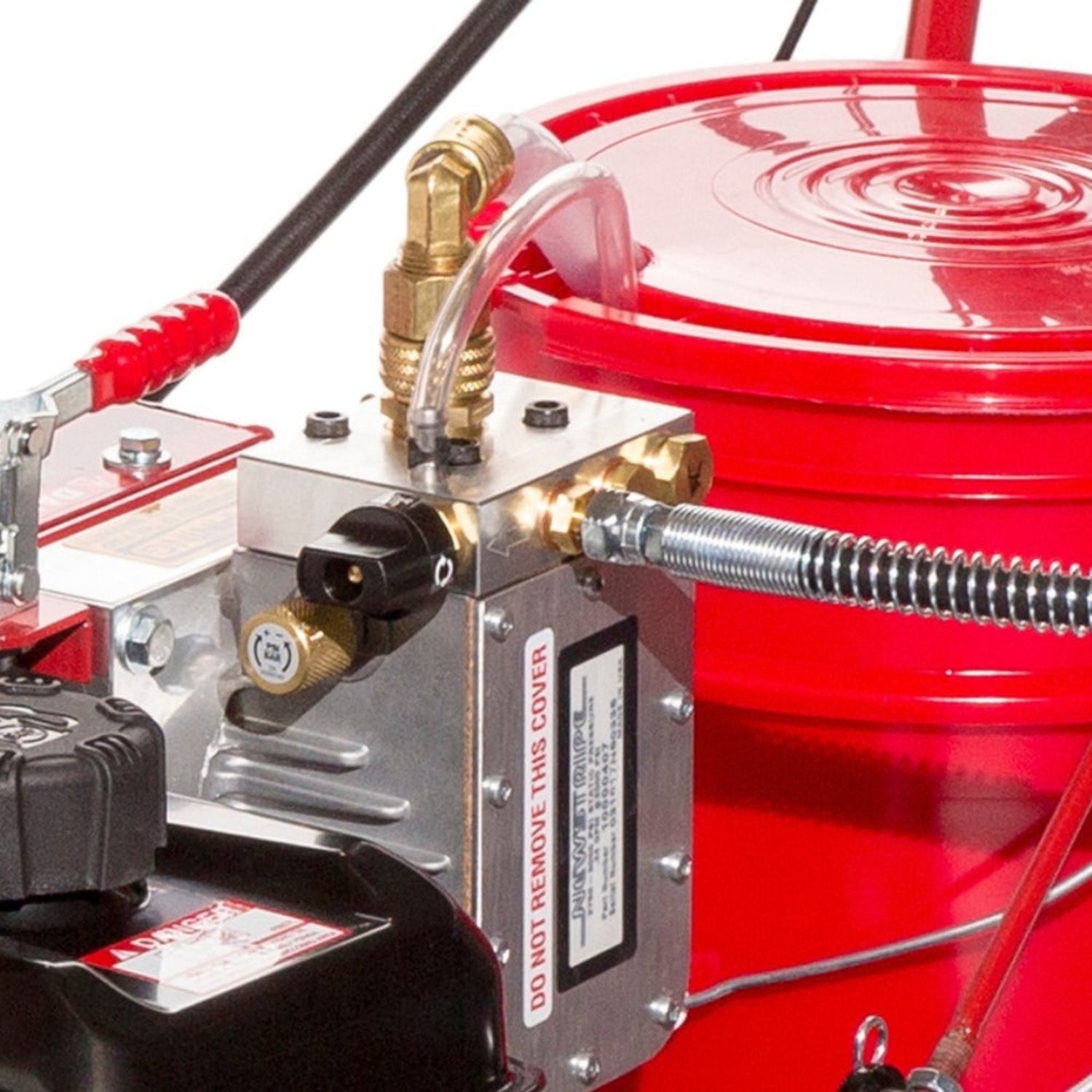

The Newstripe 4600 SP Airless Self-Propelled Striping Machine delivers airless line striping at 0–3000 PSI with 0.44 GPM flow through a hydraulic-driven non-pulsating paint pump for consistent line edges across all paint viscosities. The pump draws directly from standard 5-gallon paint pails fitted with a universal spill-prevention lid.

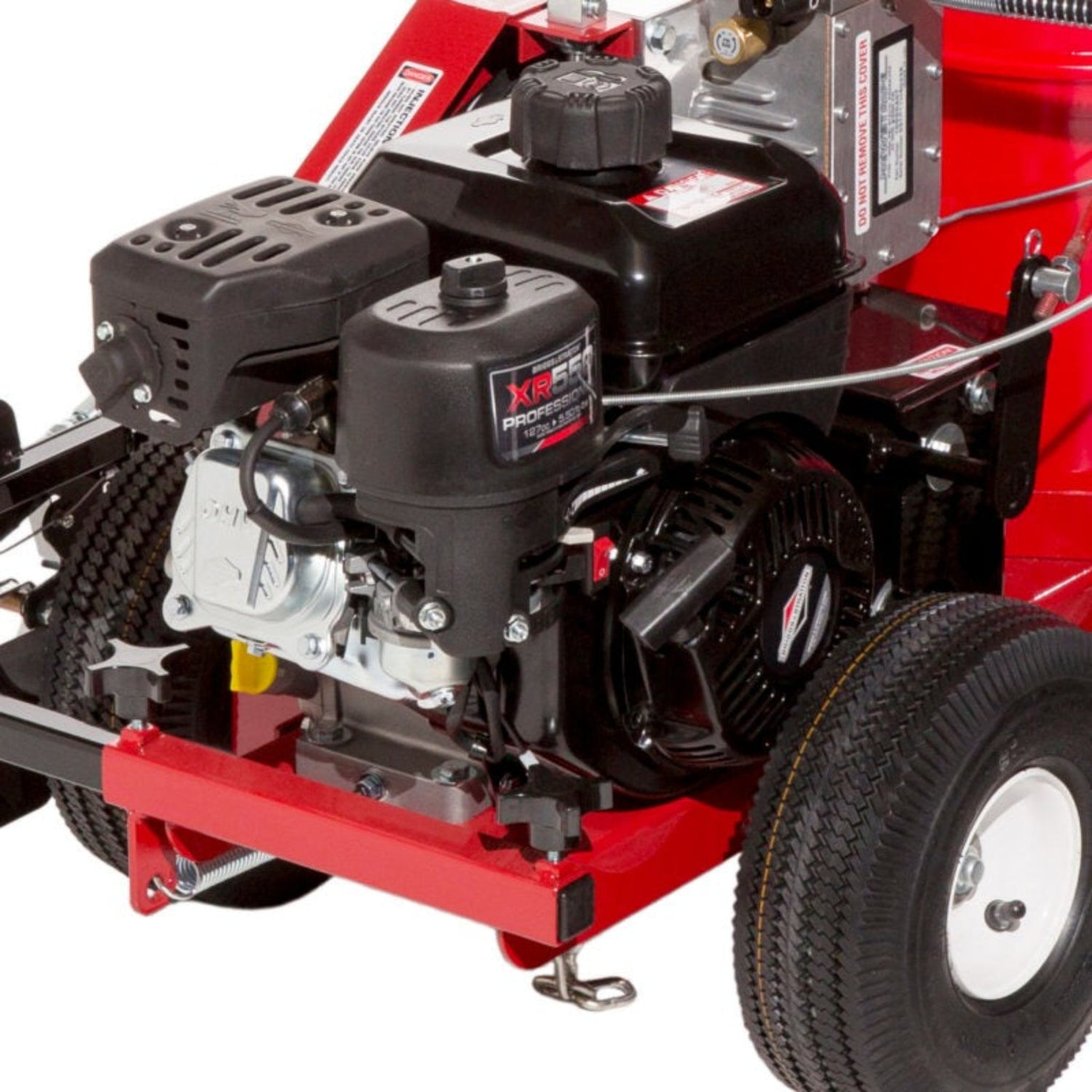

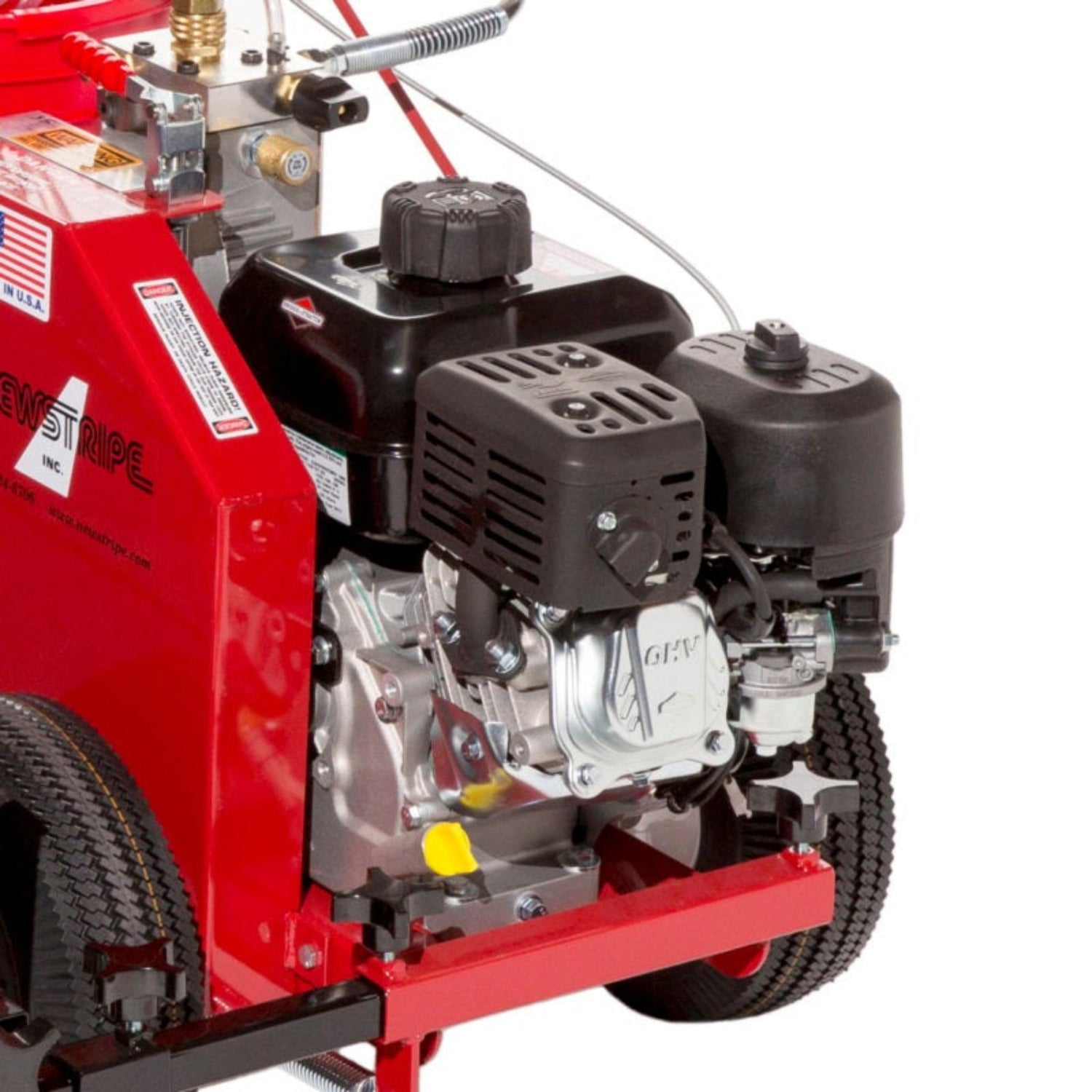

Propulsion is via variable-speed friction drive with single-lever engagement, eliminating manual pushing across uneven surfaces and inclines. The four-wheel chassis runs on 10-inch pneumatic balloon tires for straight-line tracking on smooth concrete, asphalt, and athletic field surfaces. Engine options: Briggs & Stratton XR 550 (standard) or Honda GX 120 (upgrade).

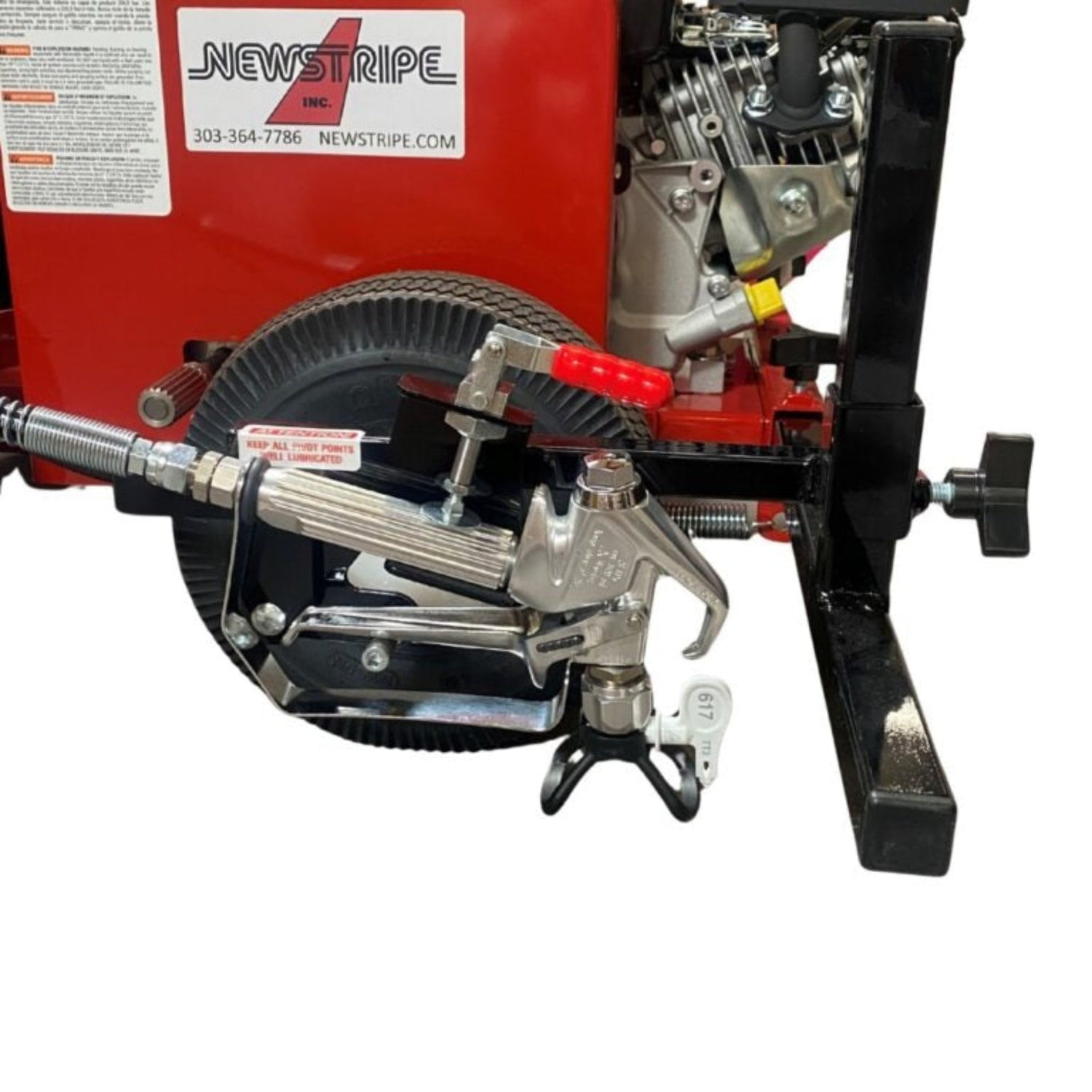

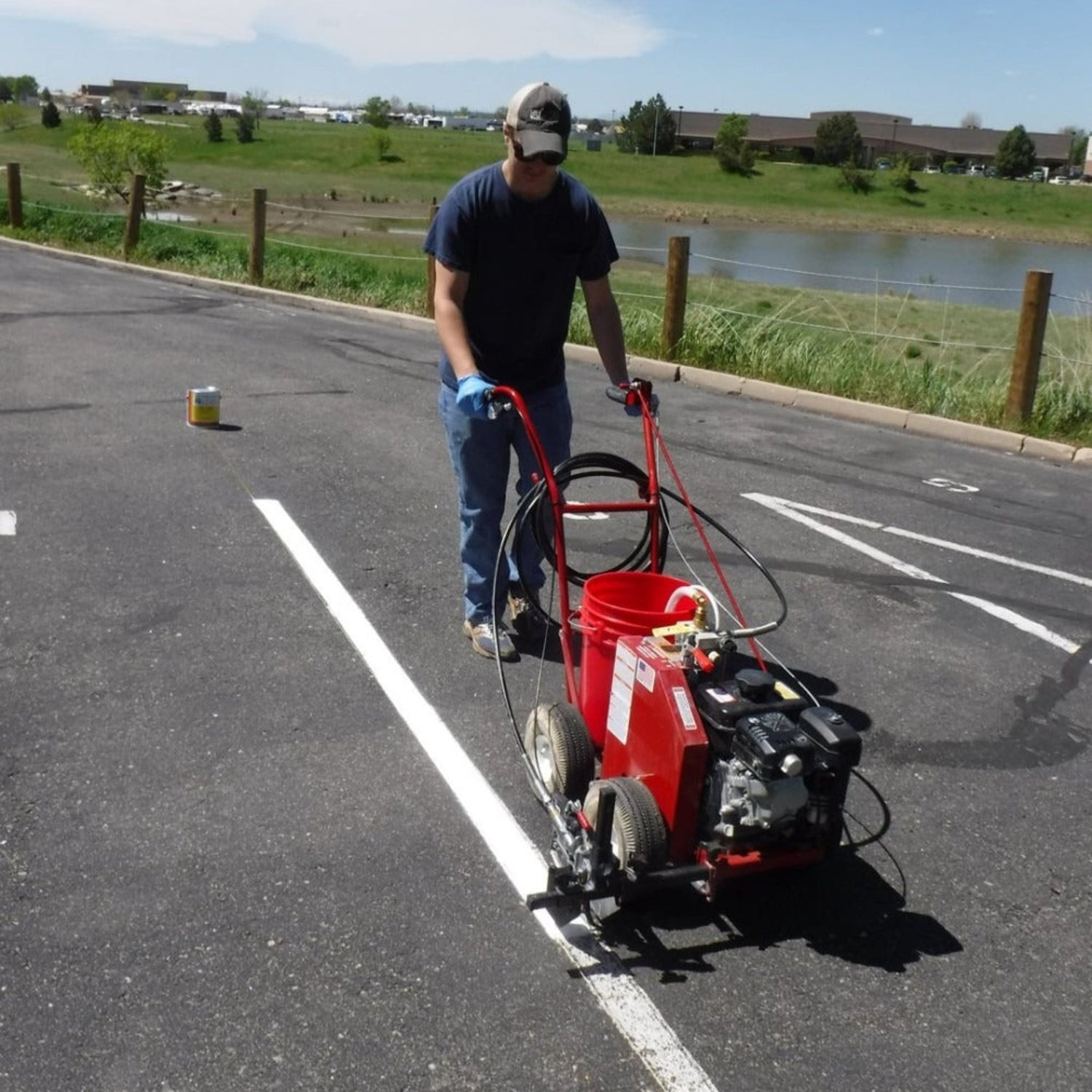

A quick-release clamp removes the spray gun for stencil, curb, and detail work using the included 25-foot hose, with optional rear caster compatibility for arc and circle striping. Compatible applications include parking lots, athletic fields, pavement striping, and floor marking.
Features
- 10-inch pneumatic balloon tires and 4-wheel design for straight lines on concrete, asphalt, and athletic fields
- Adjustable 0–3000 PSI airless pump handles thinned and non-thinned paint
- Hydraulic-driven, non-pulsating pump for clean, consistent line edges
- Self-propelled friction drive handles inclines and uneven surfaces
- Single-lever drive engagement reduces operator fatigue
- Draws paint directly from standard 5-gallon pails with universal spill-prevention lid
- Cleanup and color changes in under 5 minutes
- Quick-release spray gun with 25-foot hose for stencils, curbs, and detail work
- Optional rear caster for arcs and circles
- Compatible with HashMark Master II for 5x faster hash marking
Specifications
| APPLICATION | |
|---|---|
| Application | Athletic field striping, pavement and floor striping |
| Propulsion | Self propelled, walk behind |
| PERFORMANCE | |
| Spray Pump | High pressure airless (0 to 3000 PSI, 0.44 GPM) |
| Paint Capacity | 5 gallon |
| ENGINE | |
| Engine | Briggs & Stratton XR 550 (standard), Honda GX 120 (upgrade) |
| PHYSICAL | |
| Wheels | 10" pneumatic |
| Dimensions | 54" L × 32" W × 38.5" H |
| Dimensions (Ship) | 57" L × 25" W × 44" H |
| Weight | 145 lbs |
| Weight (Ship) | 190 lbs |
| ORIGIN AND WARRANTY | |
| Origin | Made in the USA |
| Warranty | 36 months |
