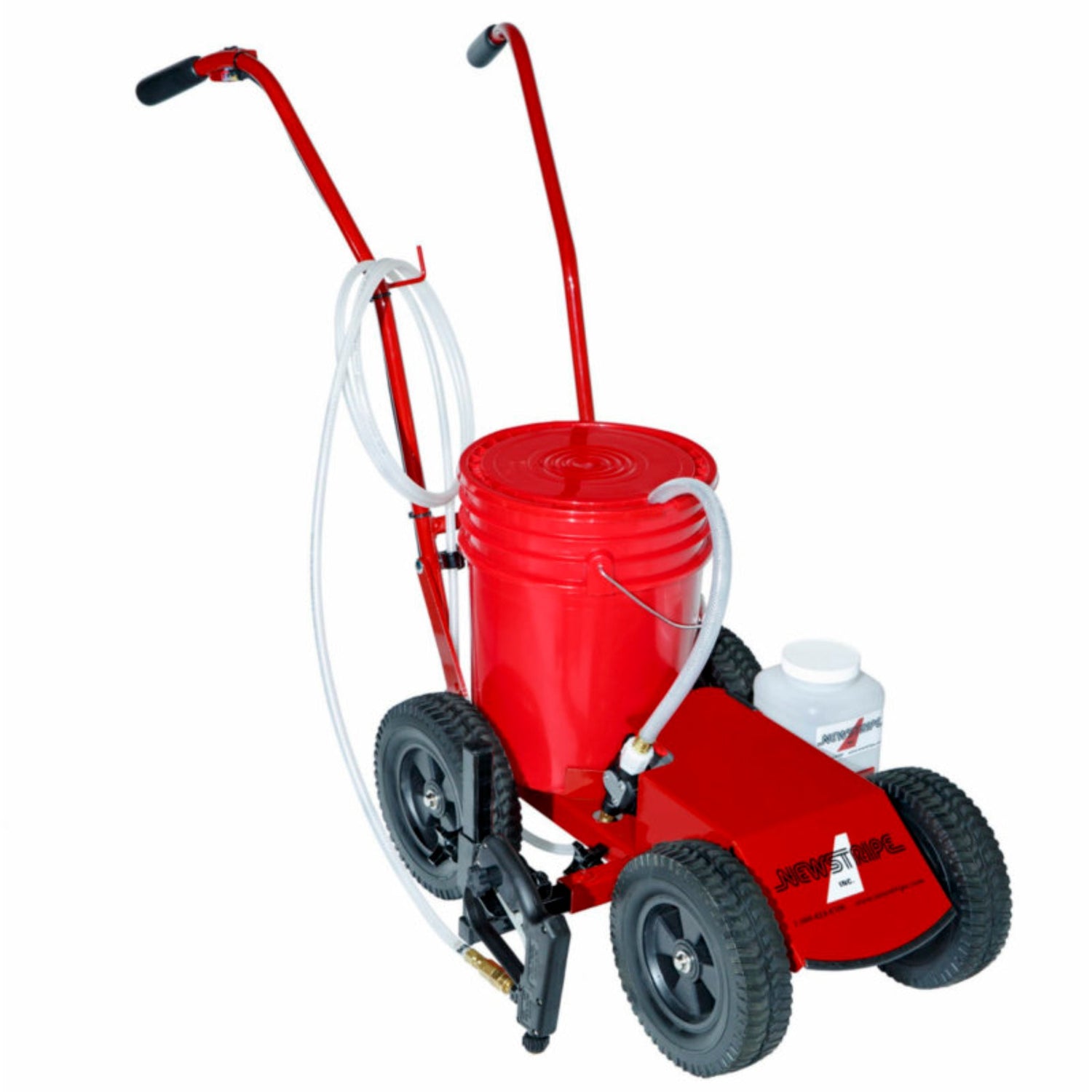

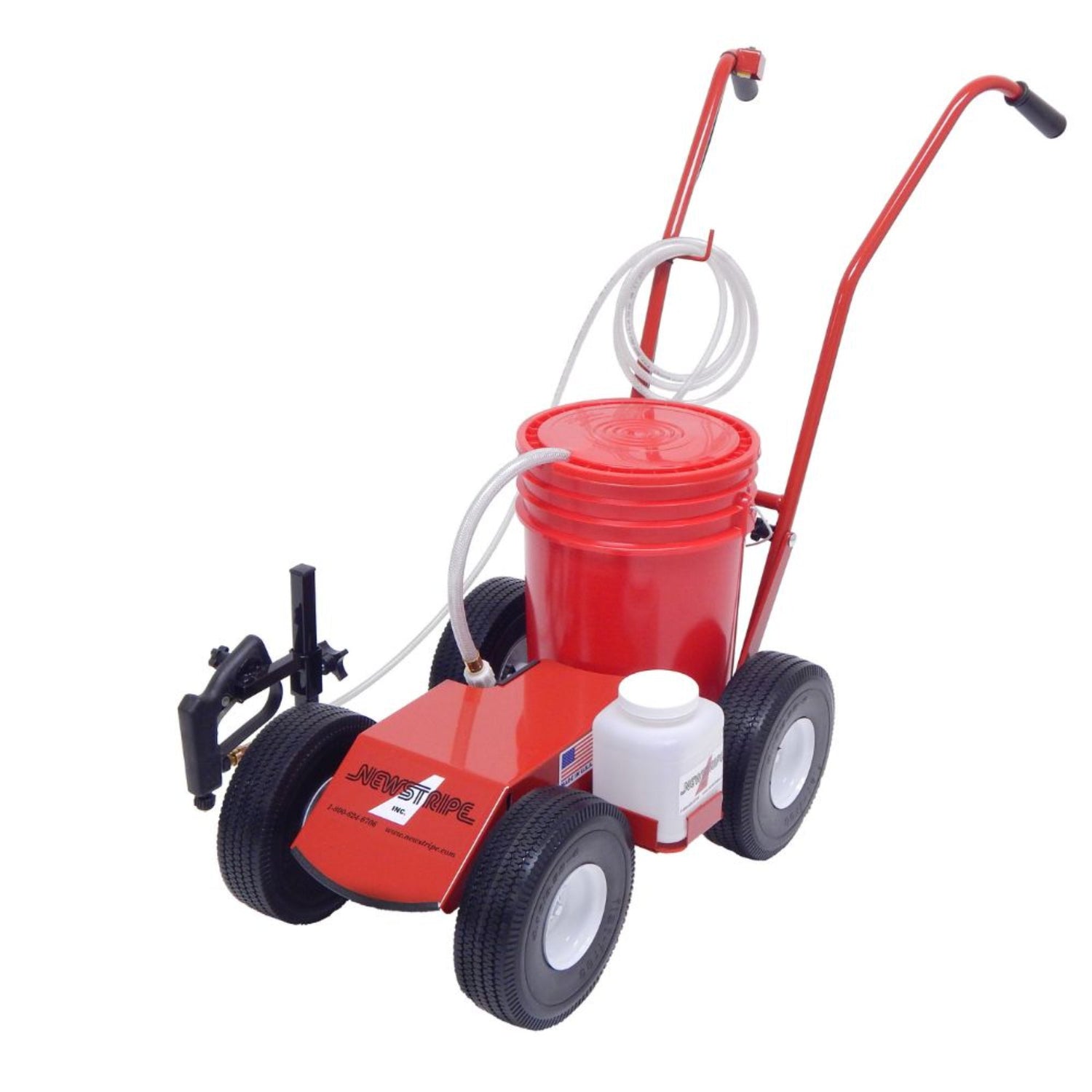

Newstripe EcoLiner Plus Battery Powered Field Striper
The EcoLiner™ Plus Battery Powered Field Striper is a 12V deep cycle battery-powered athletic field striping machine with a low-pressure pump rated at 1.8 gpm. The unit accepts a 5-gallon pail of premixed paint mounted directly to the chassis and supports fully adjustable line widths from 2″ to 6″. Construction is welded steel throughout for extended service life. The unit is engineered for athletic field striping and is not rated for pavement striping applications.
A heavy-duty detachable spray gun with 12 ft hose connects via quick-release clamp for stencil work and corner detail. An onboard 1-gallon cleaning tank provides integrated water flush for the spray system without requiring external buckets. Filtration includes a large mesh intake filter, inline filter, and check valve to prevent tip clogging and drip-off. Knobby-tread flat-free tires support operation over uneven turf surfaces.
The machine ships with a 120V quick-charge plug-in battery charger; the 12V deep cycle battery is sold separately. Performance is optimized for thinned athletic field paint per manufacturer paint-to-striper viscosity recommendations. The system operates without pressurized tanks, eliminating depressurization steps before refilling or cleaning.
Features
- 12V deep cycle battery-powered operation (battery sold separately)
- Low-pressure pump rated at 1.8 gpm

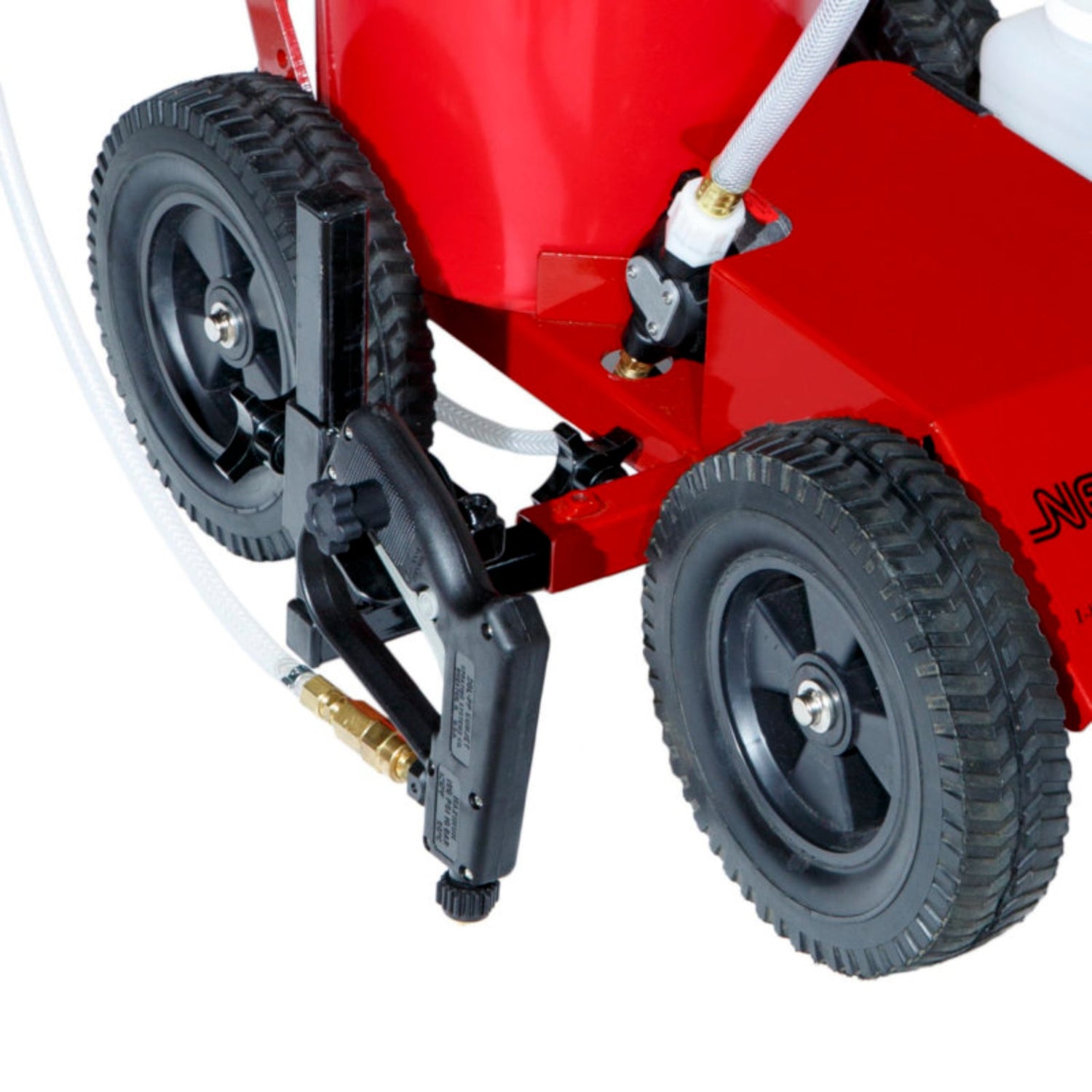

- Heavy-duty detachable spray gun with 12 ft hose and quick-release clamp

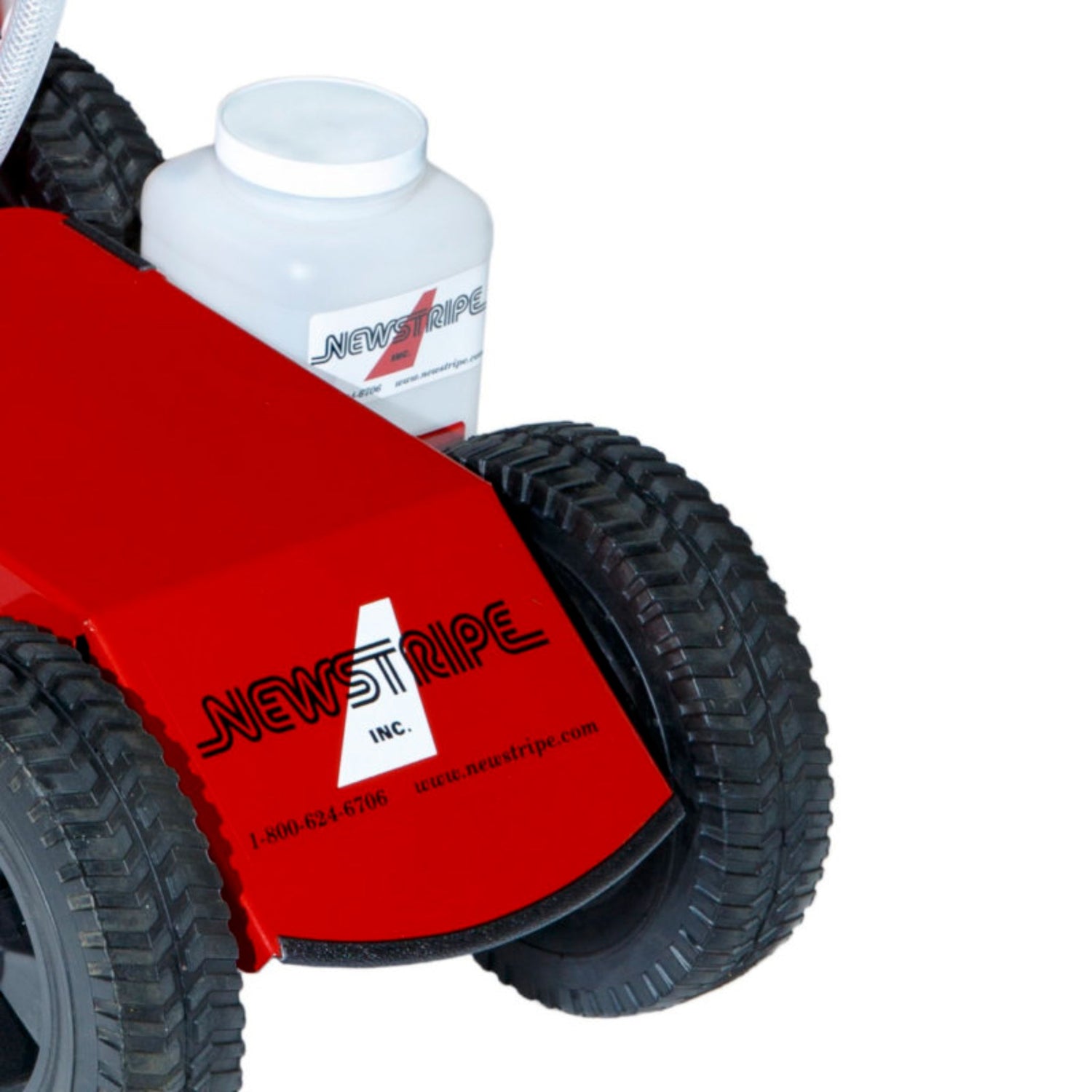

- Onboard 1-gallon cleaning tank for integrated system flush
- Adjustable line width from 2″ to 6″
- Accepts 5-gallon pail of premixed paint mounted directly to chassis
- Mesh intake filter, inline filter, and check valve for clog prevention

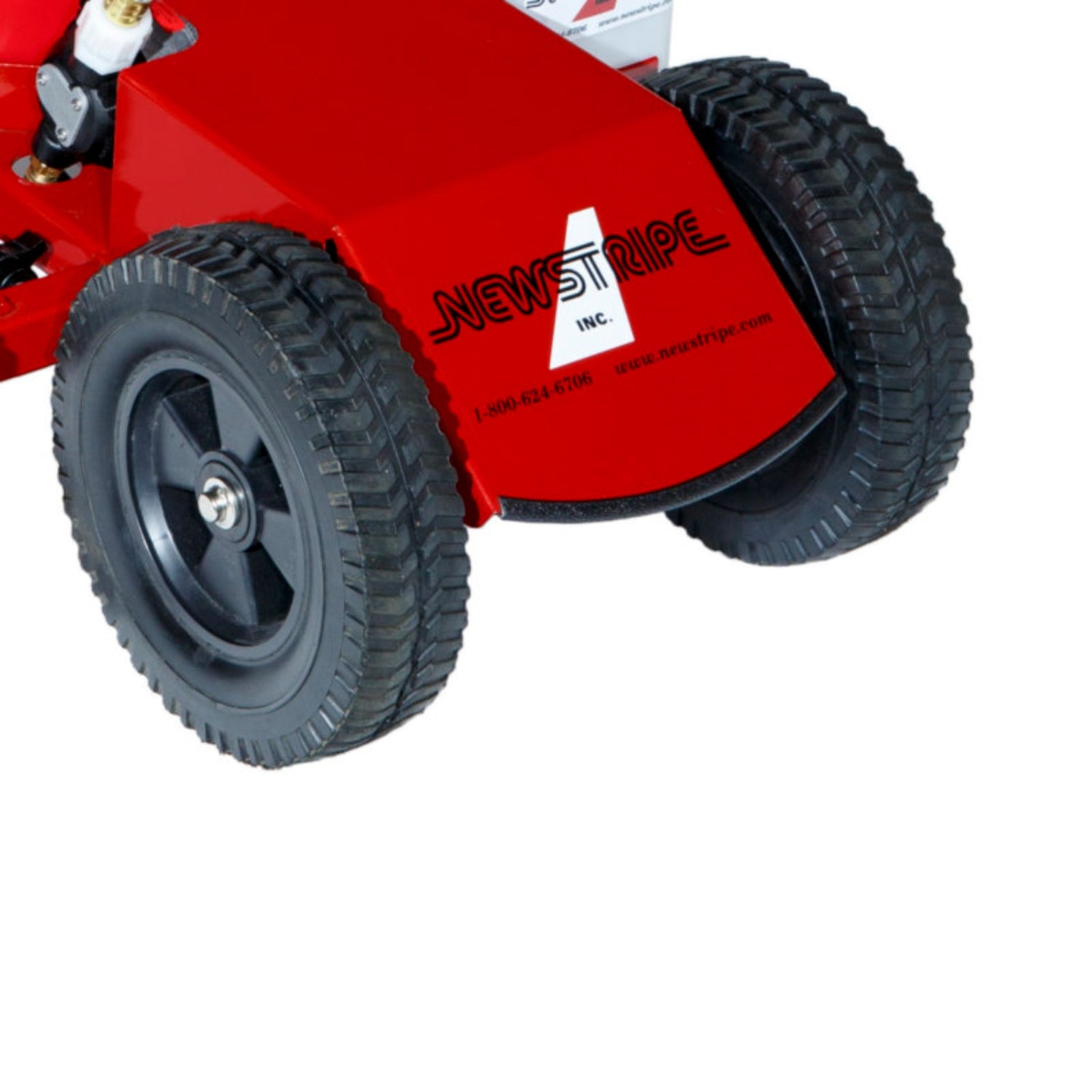

- Knobby-tread flat-free tires for uneven turf
- Welded steel construction throughout
- 120V quick-charge plug-in battery charger included
- No pressurized tanks (no depressurization required for refill or cleaning)
What's Included
- Chassis/Handle Assembly with Paint Hose
- Paint Pail Snap-On Lid
- Cloth/Mesh Strainer
- Cleaning Tank
- (2) Female Star Knobs
- (2) Large Star Knobs
- (2) Carriage Bolts
- Spray Head Support Arm
- Spray Gun Assembly with Gun Mount
- Paint Suction Hose
- Product Manual
Specifications
| APPLICATION | |
|---|---|
| Application | Athletic Field Striping |
| Propulsion | Walk Behind |
| POWER & PERFORMANCE | |
| Engine | Electric, 12V 18Ah AGM Battery |
| Spray Pump | Low Pressure (1.8 gpm) |
| CAPACITY & MOBILITY | |
| Paint Capacity | 5 Gallon |
| Wheels | 10" Flat Free |
| DIMENSIONS & WEIGHT | |
| Dimensions | 46" L × 21.25" W × 37" H |
| Ship Dimensions | 39" L × 22" W × 12" H |
| Ship Weight | 63 lbs |
| ORIGIN & WARRANTY | |
| Origin | Made in the USA |
| Warranty | 24 Months |
