Newstripe EcoLiner SP Self-Propelled Field Striping Machine
Newstripe EcoLiner SP Self-Propelled Field Striping Machine - Briggs & Stratton XR 550 is backordered and will ship as soon as it is back in stock.
Ships fast. Enter your ZIP for a delivery date.
Save $150 Today
Up To15% OffUp to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.
Newstripe EcoLiner SP Self-Propelled Field Striping Machine
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description

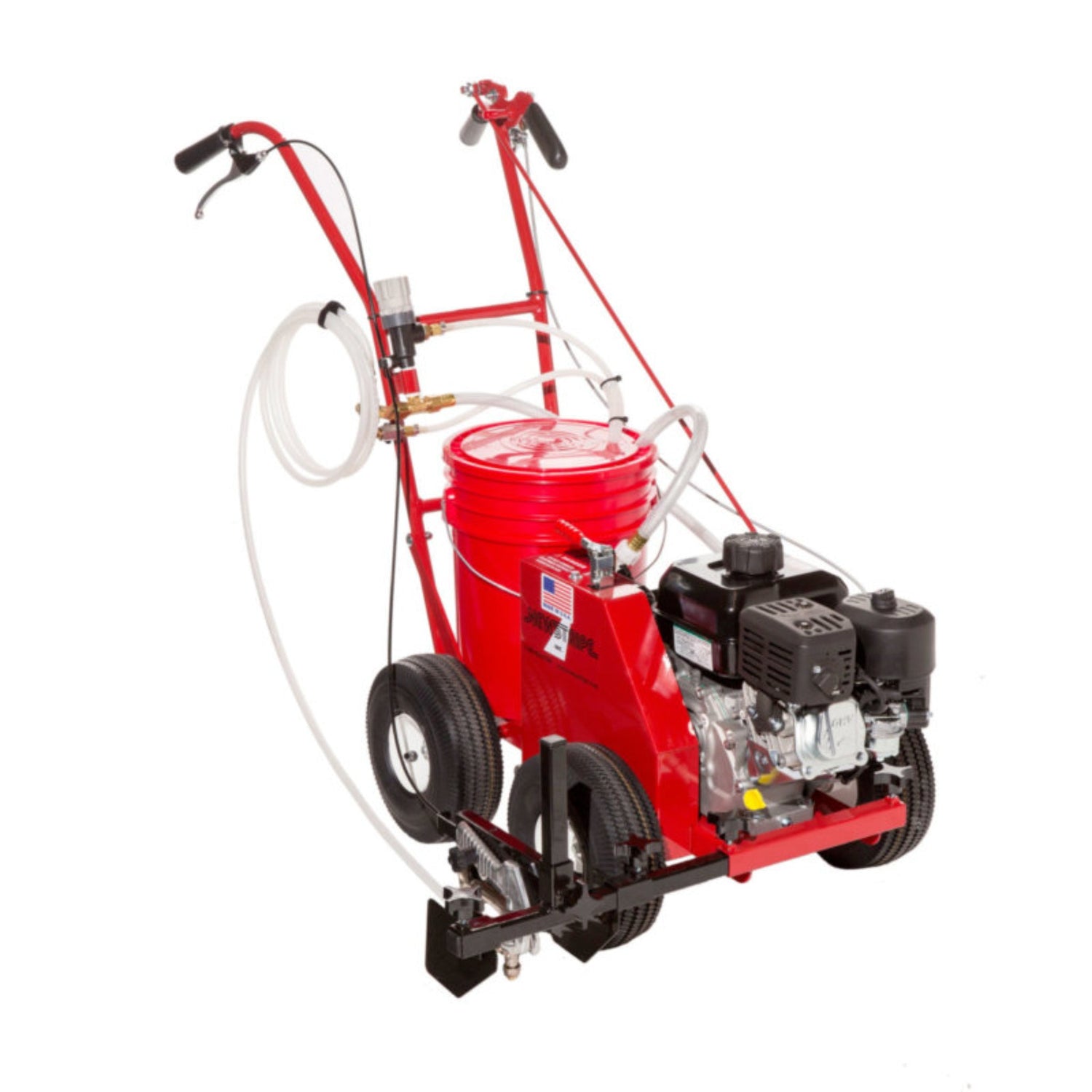

Newstripe EcoLiner SP Self-Propelled Field Striping Machine
The EcoLiner™ SP Self-Propelled Field Striping Machine is a gas-powered athletic field striper with friction drive self-propulsion, eliminating manual pushing across turf surfaces. The unit ships with a Briggs & Stratton XR 550 engine standard, with an optional upgrade to a Honda GX 120 engine. The spray system uses a low-pressure pump rated at 1.8 gpm with a recirculating circuit that continuously mixes paint and prevents pigment settling during operation, removing the need for stir stops.
The machine accepts a standard 5-gallon pail of premixed paint mounted directly to the chassis. A detachable spray gun with 12″ hose connects for stencil work and hard-to-reach areas. Filtration uses a large replaceable foot filter on the intake hose, serviceable in under 30 seconds. An optional rear flip-down swivel caster is available for spraying arcs and circles. Construction is welded steel throughout.
The unit is engineered for athletic field striping and is not rated for pavement applications. Performance is optimized for thinned athletic field paint per manufacturer paint-to-striper viscosity recommendations. The system operates without pressurized tanks, eliminating depressurization before refilling or cleaning. Cleanup uses a clear water flush through the spray circuit.
Features
- Self-propelled friction drive system (no manual pushing required)

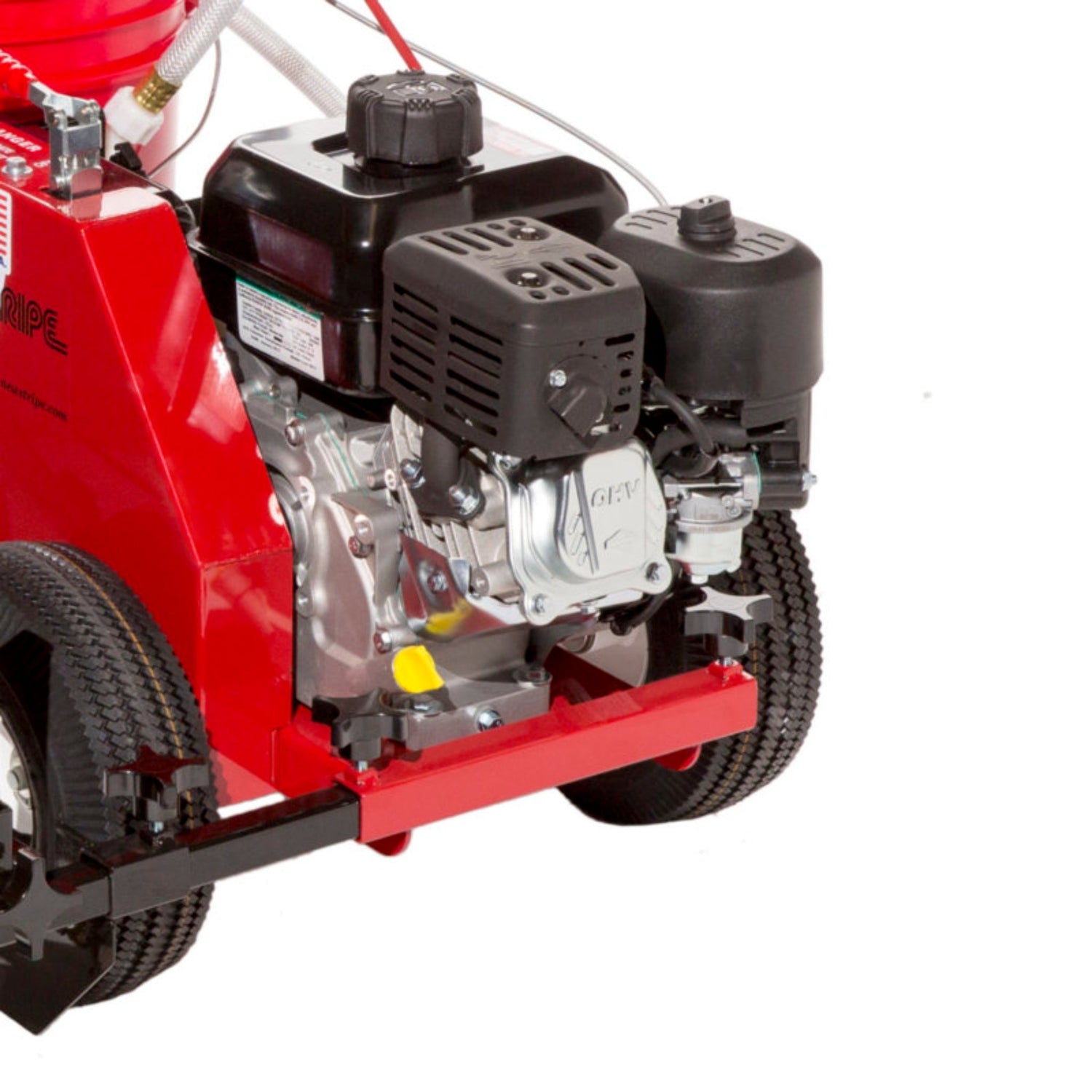

- Briggs & Stratton XR 550 engine standard (optional Honda GX 120 upgrade)
- Low-pressure spray pump rated at 1.8 gpm
- Recirculating pump for continuous paint mixing (no stir stops)

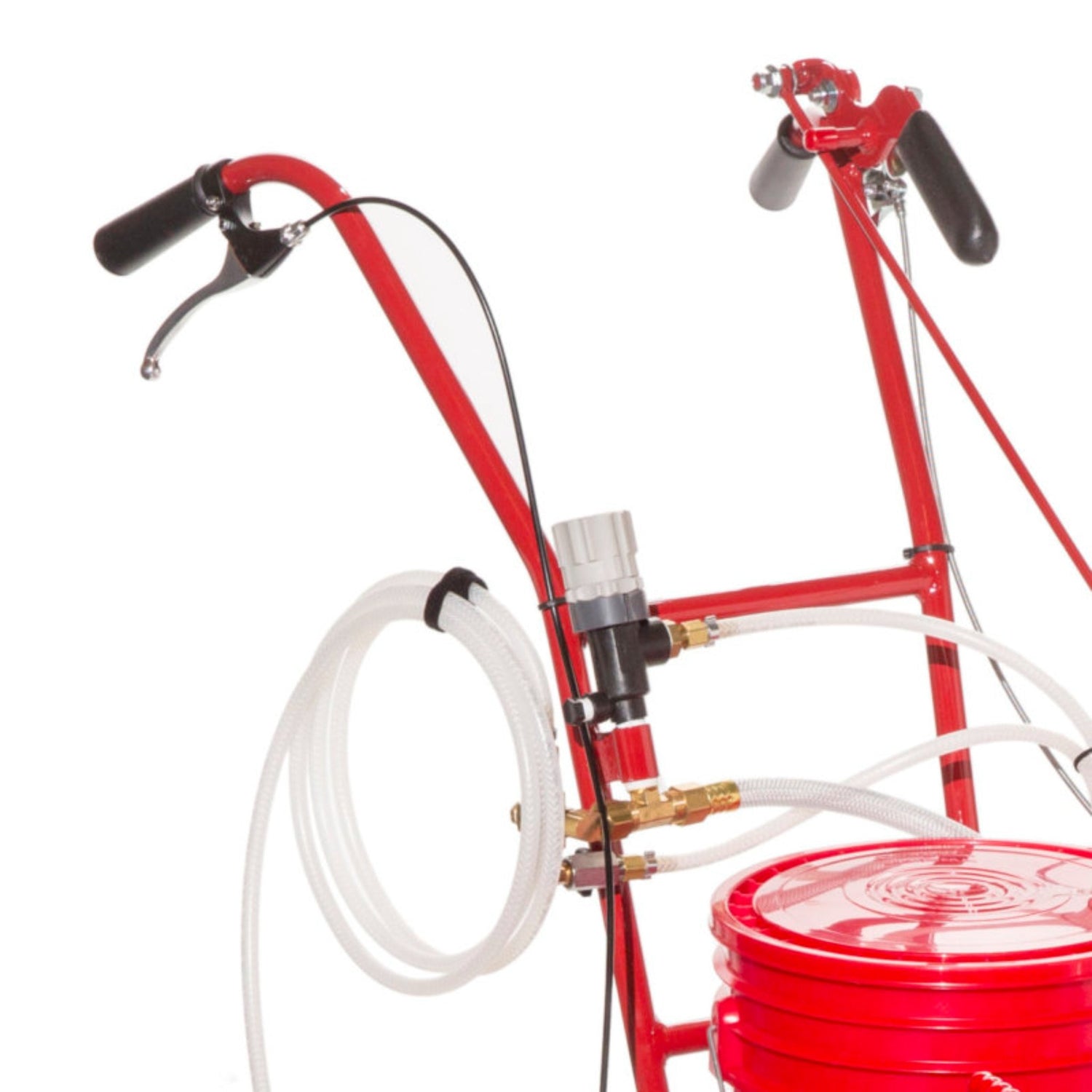

- Detachable spray gun with 12″ hose for stencils and detail work
- Accepts standard 5-gallon pail of premixed paint mounted to chassis
- Large replaceable foot filter on intake hose (under 30-second cleaning)
- No pressurized tanks (no depressurization required for refill or cleaning)
- Welded steel construction
- Optimized for thinned athletic field paint (not for pavement striping)
- Optional rear flip-down swivel caster for arcs and circles
What's Included
- EcoLiner™ SP Self-Propelled Field Striping Machine
- Briggs & Stratton XR 550 engine (standard configuration)
- Detachable spray gun with 12″ hose
- Replaceable foot filter on intake hose
- Operator documentation
Specifications
| APPLICATION | |
|---|---|
| Application | Athletic Field Striping |
| Propulsion | Self-Propelled Walk Behind |
| POWER & PERFORMANCE | |
| Engine | Briggs & Stratton XR 550 (standard), Honda GX 120 (upgrade) |
| Spray Pump | Low Pressure (1.8 gpm) |
| CAPACITY & MOBILITY | |
| Paint Capacity | 5 Gallon |

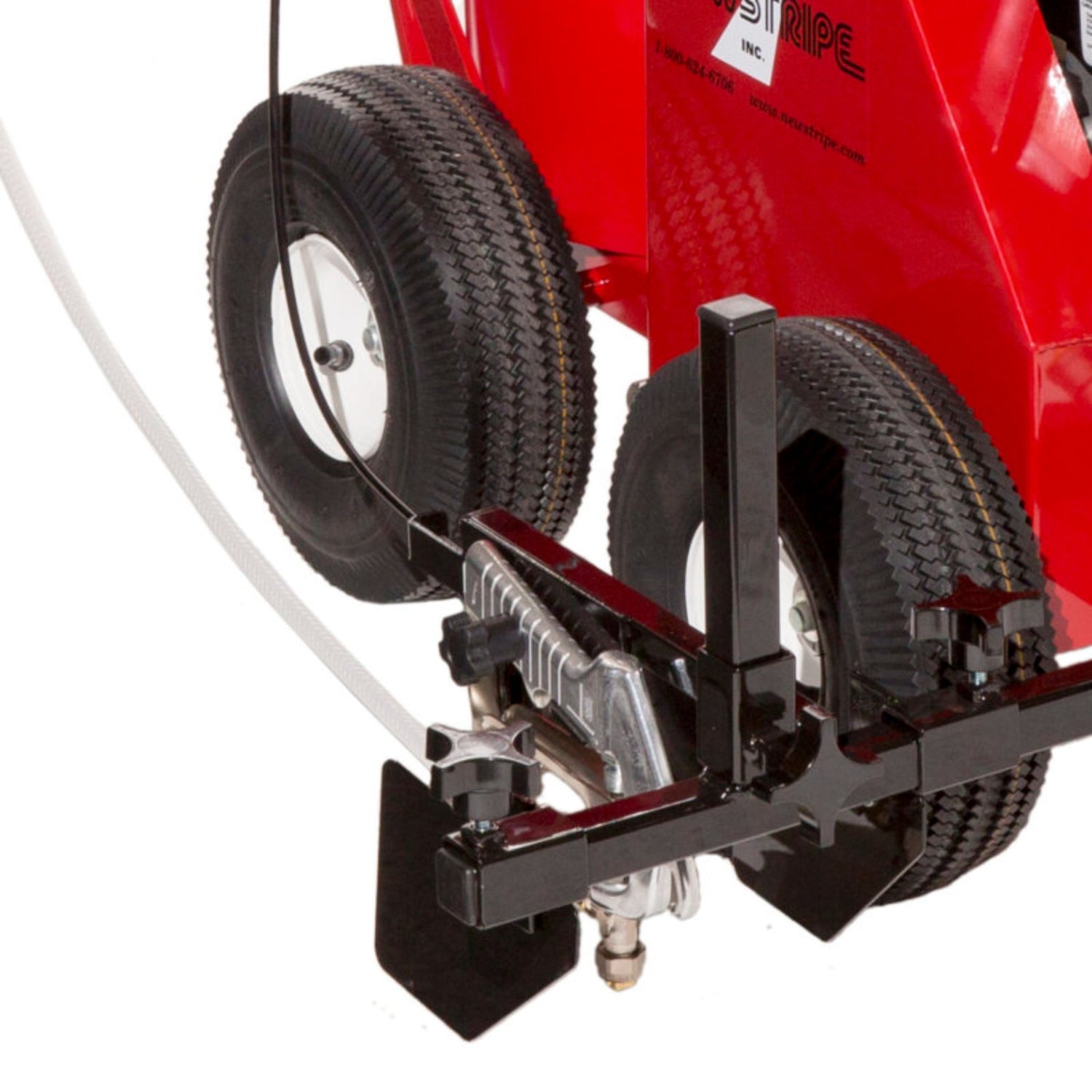

| Wheels | 10" Pneumatic |
| DIMENSIONS & WEIGHT | |
| Dimensions | 53" L × 32" W × 39" H |
| Weight | 125 lbs |
| Ship Dimensions | 57" L × 25" W × 44" H |
| Ship Weight | 170 lbs |
| ORIGIN & WARRANTY | |
| Origin | Made in the USA |
| Warranty | 24 Months |
