Newstripe NewRider 1700 Airless Riding Field Line Striper

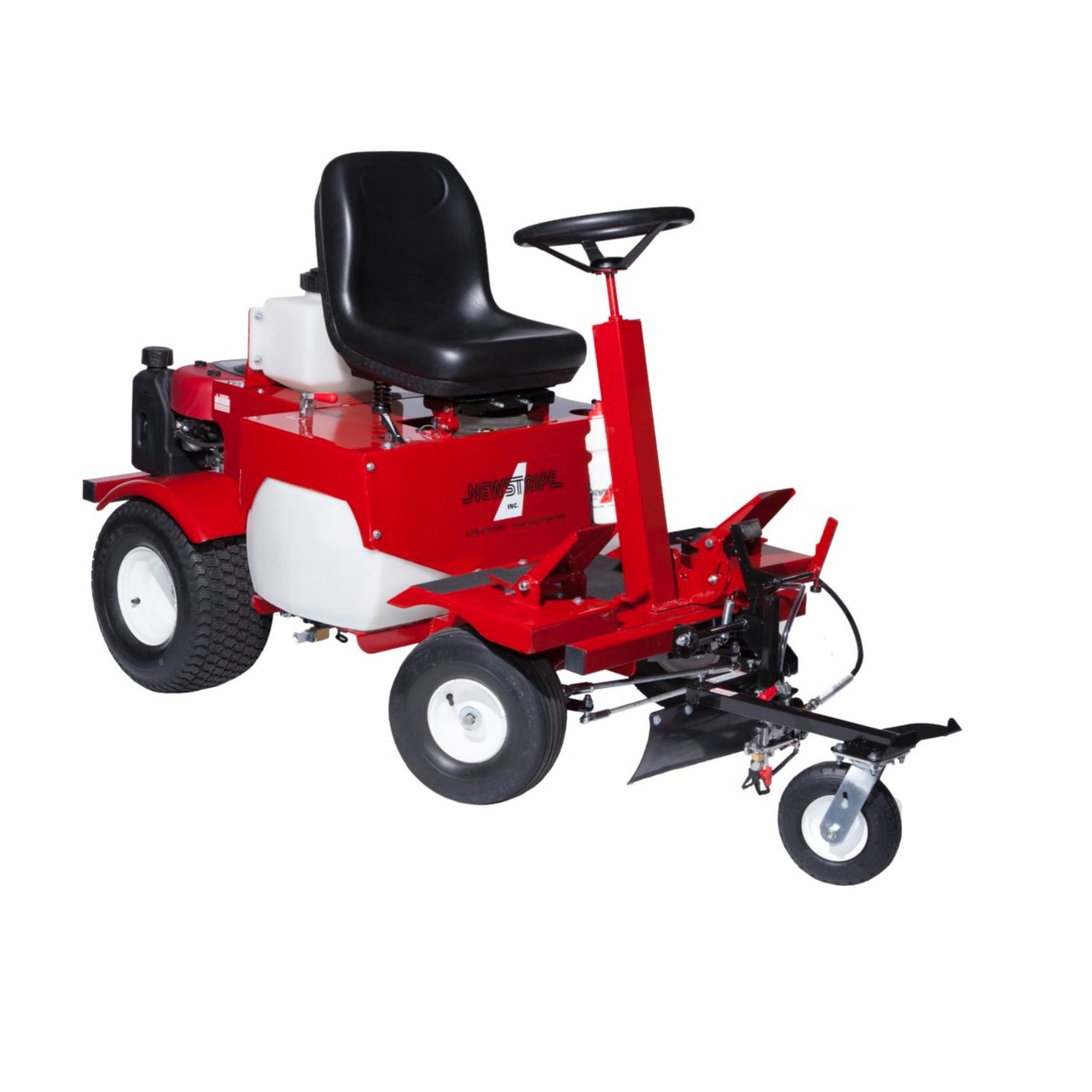

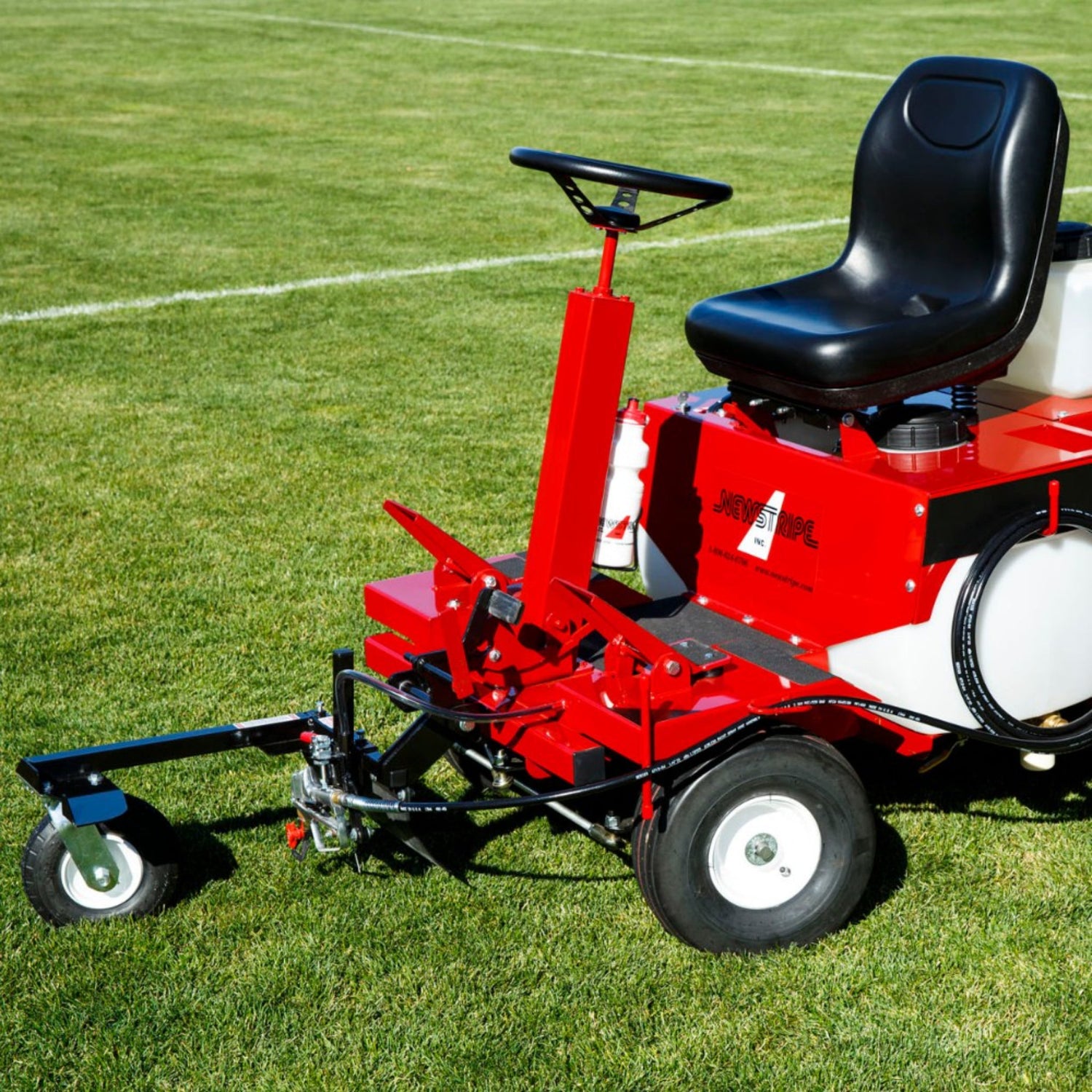

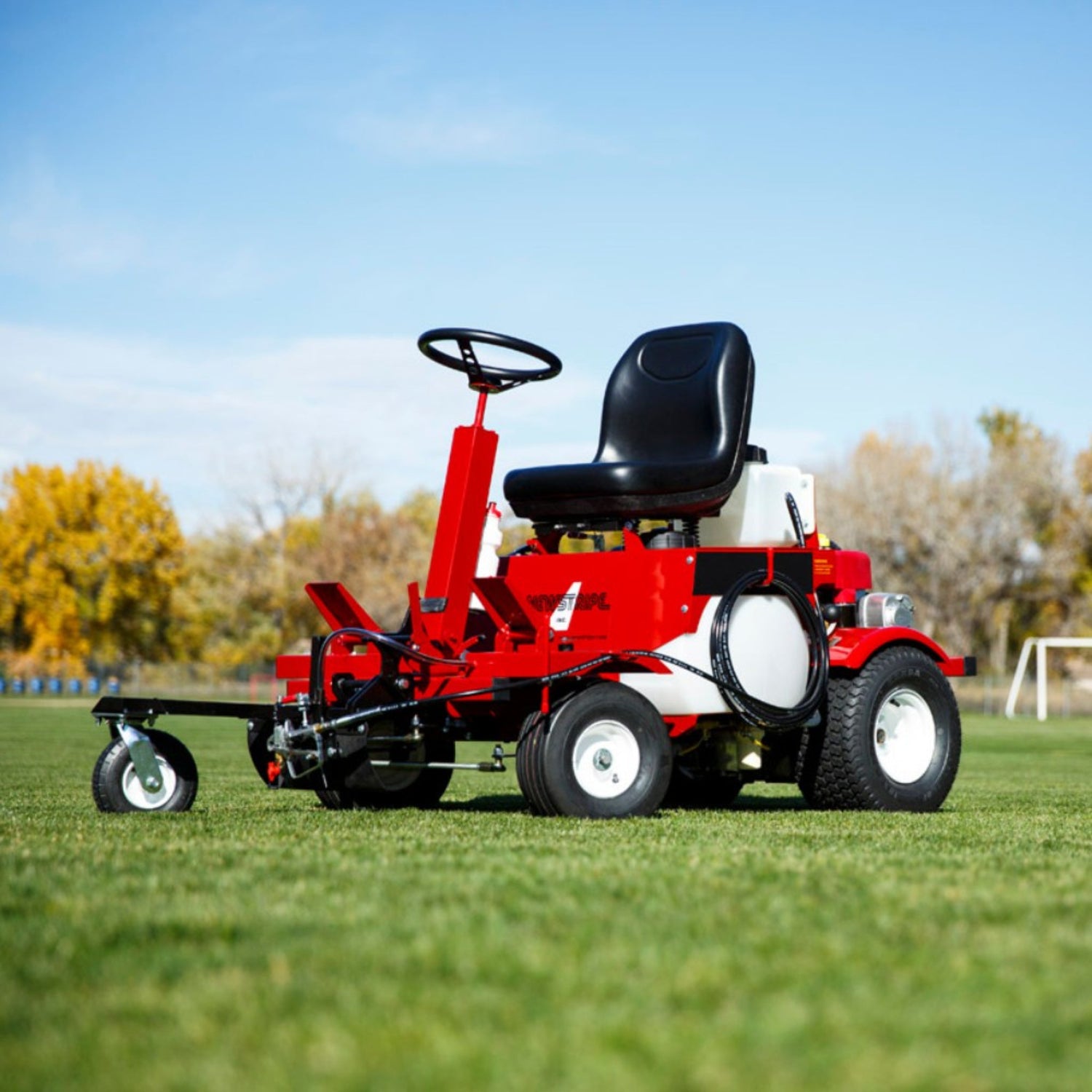

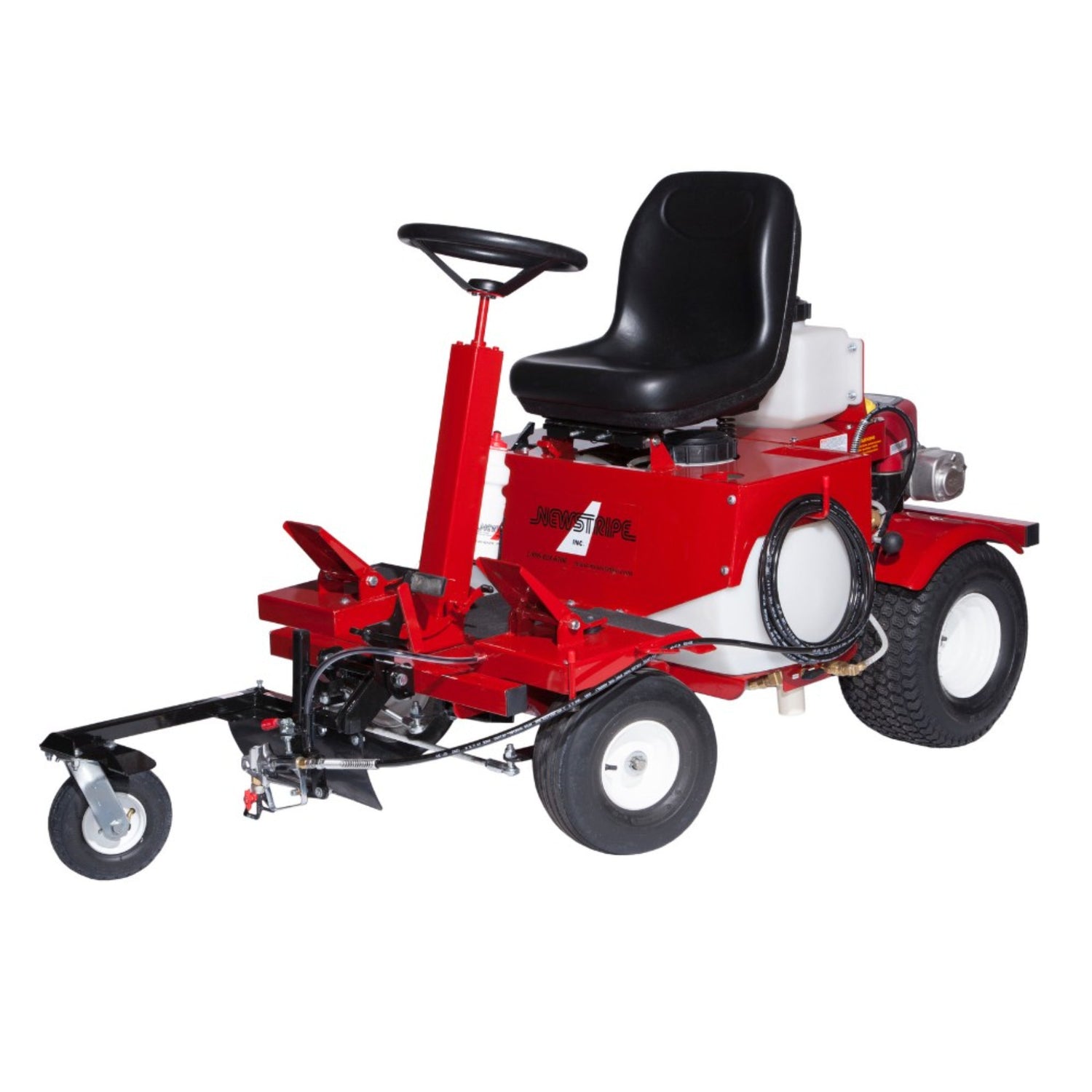

The NewRider™ 1700 Airless Riding Field Line Striper is a ride-on athletic field striping machine powered by a Briggs & Stratton Intek 11.5 HP engine driving a hydrostatic trans-axle and airless spray pump. Pump output is fully adjustable from 0 to 3000 psi, supporting both thinned and non-thinned athletic field paints. The 25-gallon poly paint tank provides sufficient capacity to stripe an entire football field or up to four full-size soccer fields per fill.
Operator controls are seat-mounted, with ignition, throttle, and parking brake at the operator station. Foot pedals manage forward/reverse drive speed and spray gun activation. A floating front swivel caster allows the spray gun to follow ground contours over uneven terrain while maintaining consistent line width. A quick-release clamp on the spray gun pairs with a 25-foot hose for stencils, curves, and detail areas away from the chassis.
An onboard 2.5-gallon purge tank supports in-field cleaning of the spray gun and hose without returning to a wash station. An in-line filter prevents clogging at the tip during operation. The unit is engineered for athletic field striping and is not rated for pavement striping applications.
Features
- Briggs & Stratton Intek 11.5 HP engine with hydrostatic trans-axle
- Airless spray pump with fully adjustable 0–3000 psi pressure
- Compatible with both thinned and non-thinned athletic field paints

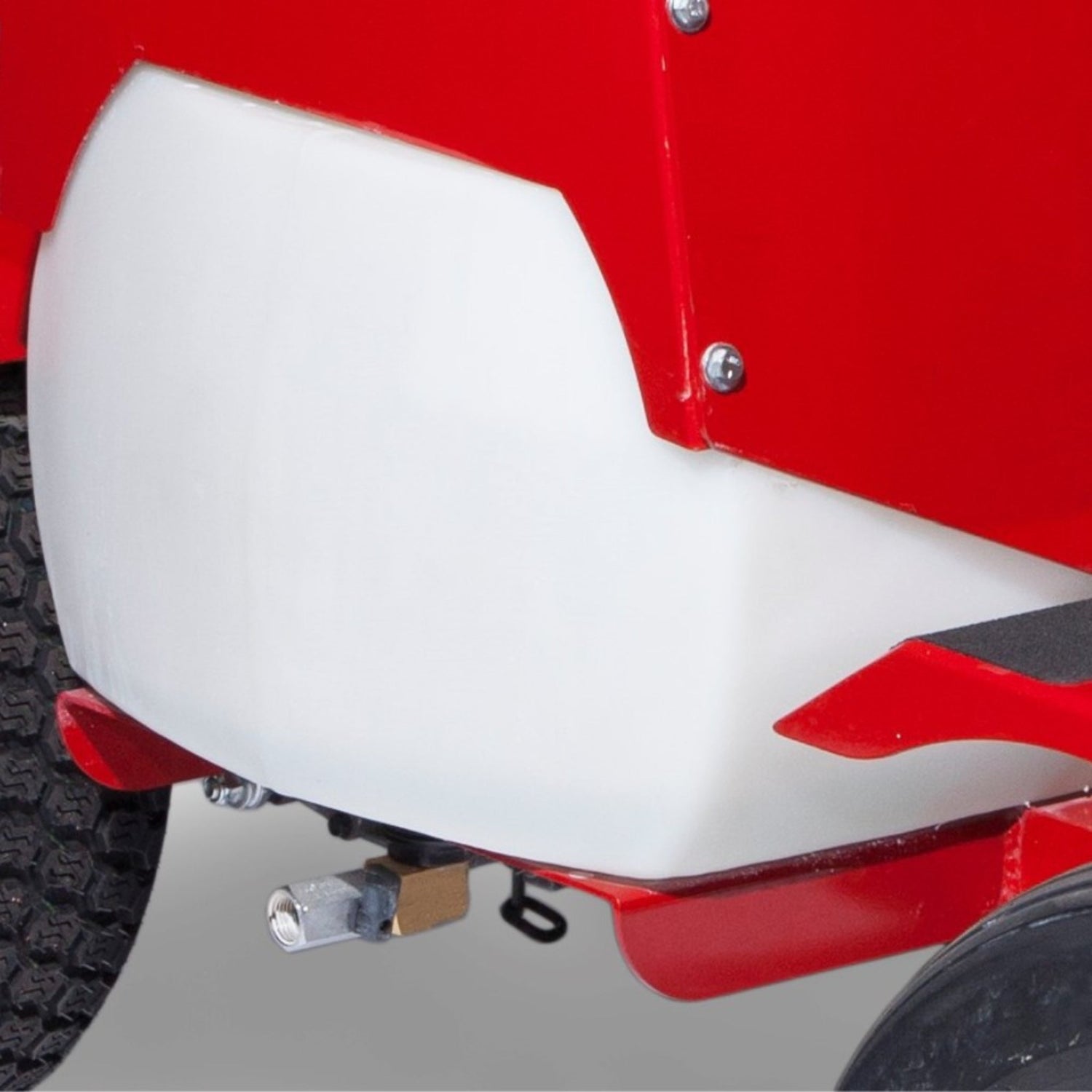

- 25-gallon poly paint tank (covers one full football field or up to four soccer fields per fill)
- Seat-based operator controls (ignition, throttle, parking brake)
- Foot pedal control for forward/reverse speed and spray gun activation

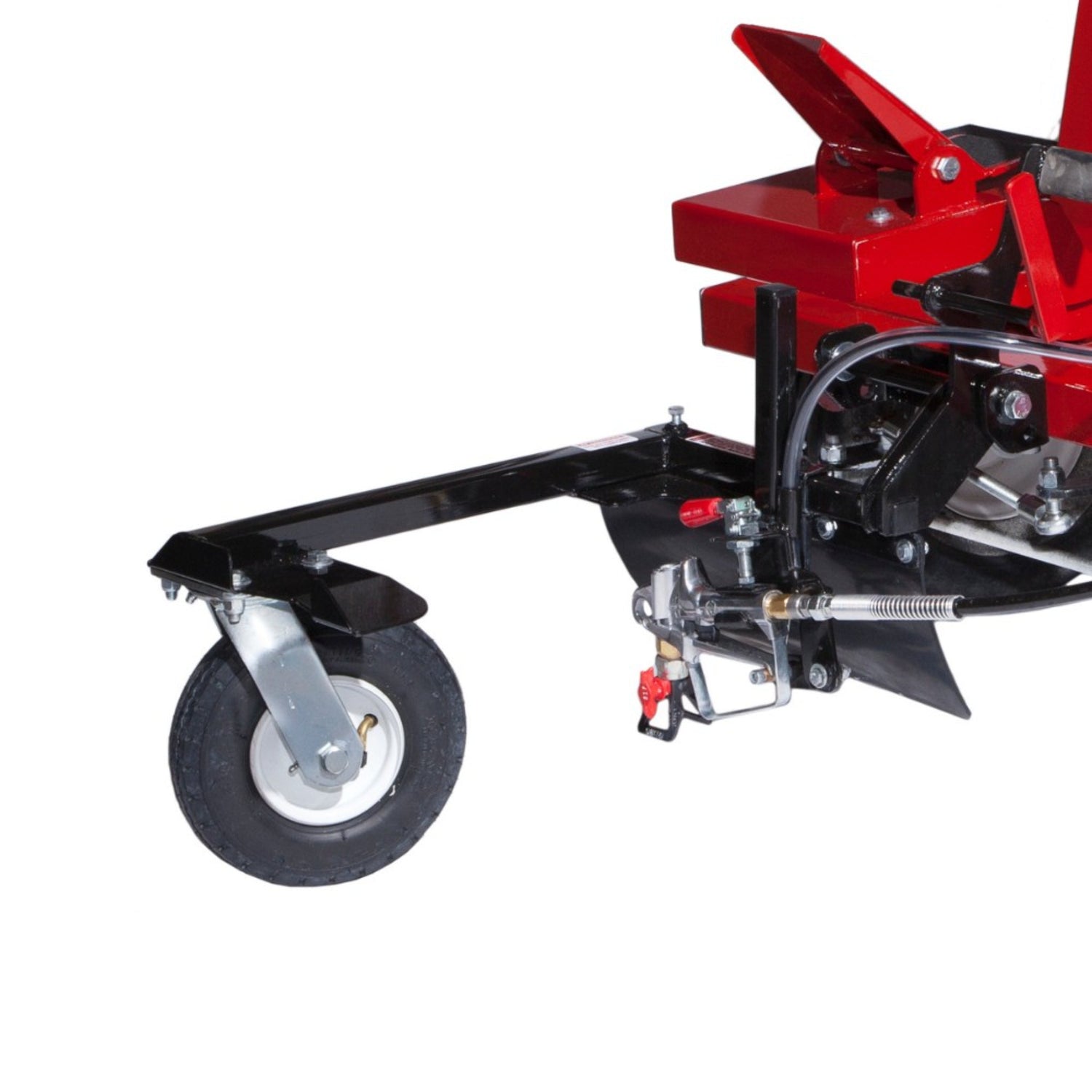

- Floating front swivel caster maintains line width over uneven terrain
- Quick-release detachable spray gun with 25-foot hose for stencils and detail work
- Onboard 2.5-gallon purge tank for in-field cleanup
- In-line filter prevents tip clogging
- Made in the USA
- 36-month Equipment Protection warranty
What's Included
- NewRider™ 1700 Airless Riding Field Line Striper
- Briggs & Stratton Intek 11.5 HP engine
- Detachable spray gun with 25-foot hose and quick-release clamp
- Onboard 25-gallon poly paint tank
- Onboard 2.5-gallon purge tank
- In-line filter
- Operator documentation
Specifications
| APPLICATION | |
|---|---|
| Application | Athletic Field Striping |
| Propulsion | Riding |
| POWER & PERFORMANCE | |
| Engine | Briggs & Stratton Intek 11.5 HP |
| Spray Pump | High Pressure Airless (0 to 3000 psi, 0.44 gpm) |
| CAPACITY & MOBILITY | |
| Paint Capacity | 25 Gallon |
| Wheels | 15" Pneumatic (front), 18" (rear) |
| DIMENSIONS & WEIGHT | |
| Weight | 625 lbs |
| Ship Dimensions | 73" L × 44" W × 56" H |
| Ship Weight | 750 lbs |
| ORIGIN & WARRANTY | |
| Origin | Made in the USA |
| Warranty | 36 Months |
