Newstripe PackMaster Air Powered Compactor
Newstripe PackMaster Air Powered Compactor is backordered and will ship as soon as it is back in stock.
Ships fast. Enter your ZIP for a delivery date.
Save $150 Today
Up To15% OffUp to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.
Newstripe PackMaster Air Powered Compactor
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description

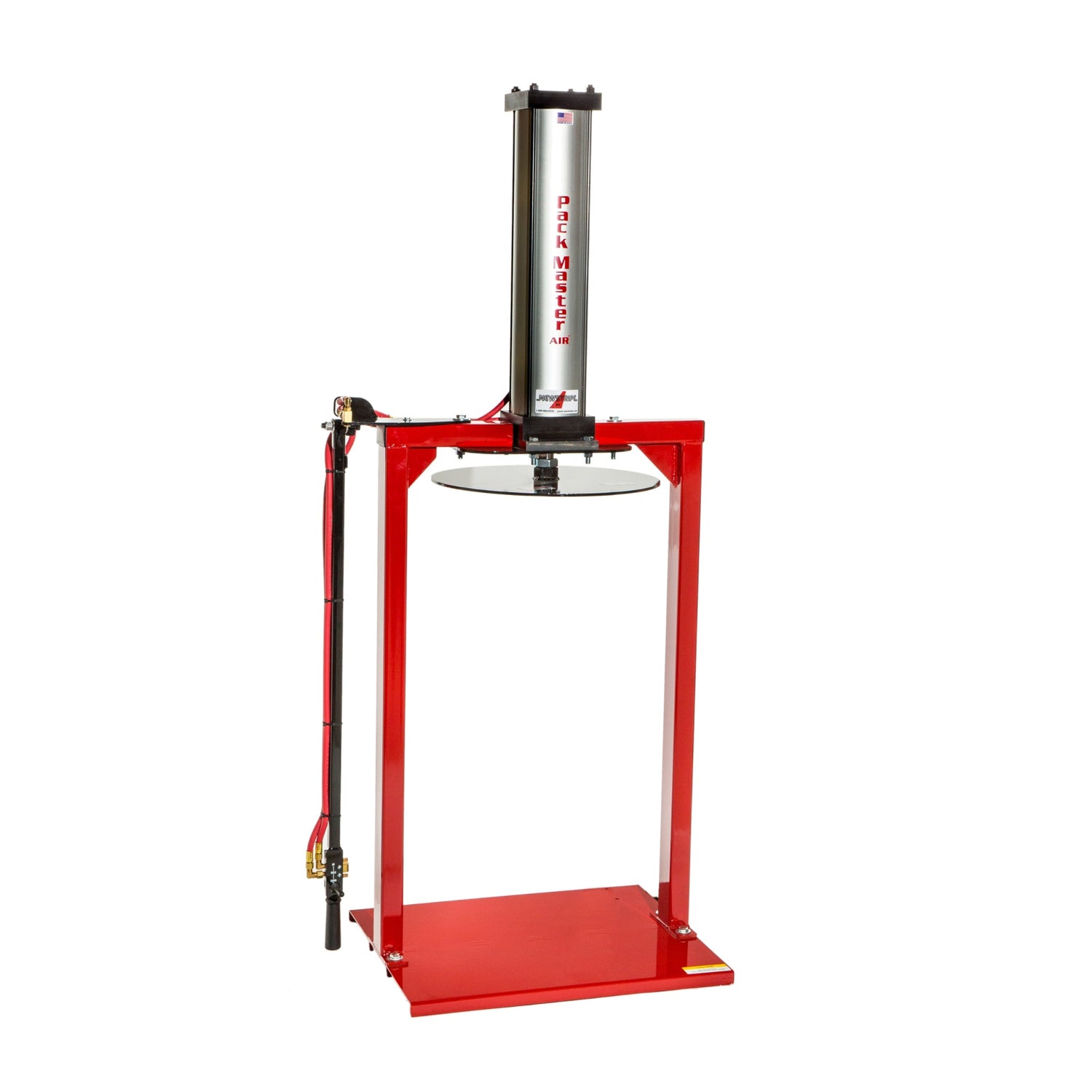

Newstripe PackMaster Air Powered Compactor

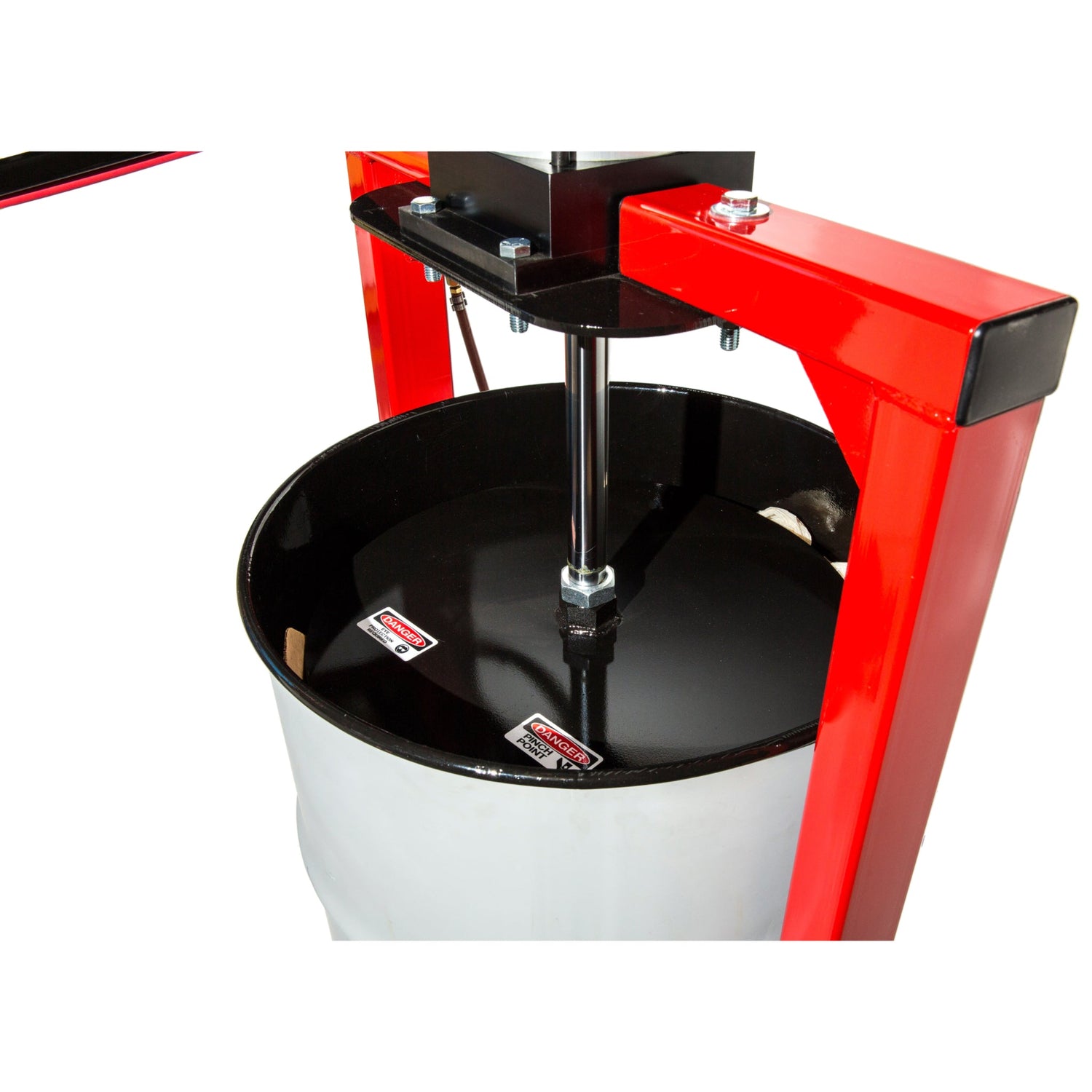

The PackMaster™ Air Powered Compactor is a pneumatic drum compactor engineered for 55-gallon drum compatibility, achieving up to 75% reduction in waste disposal volume. An optional 17″ ram plate (sold separately) extends compatibility to 30-gallon drums, supporting both standard industrial drum sizes from a single unit.

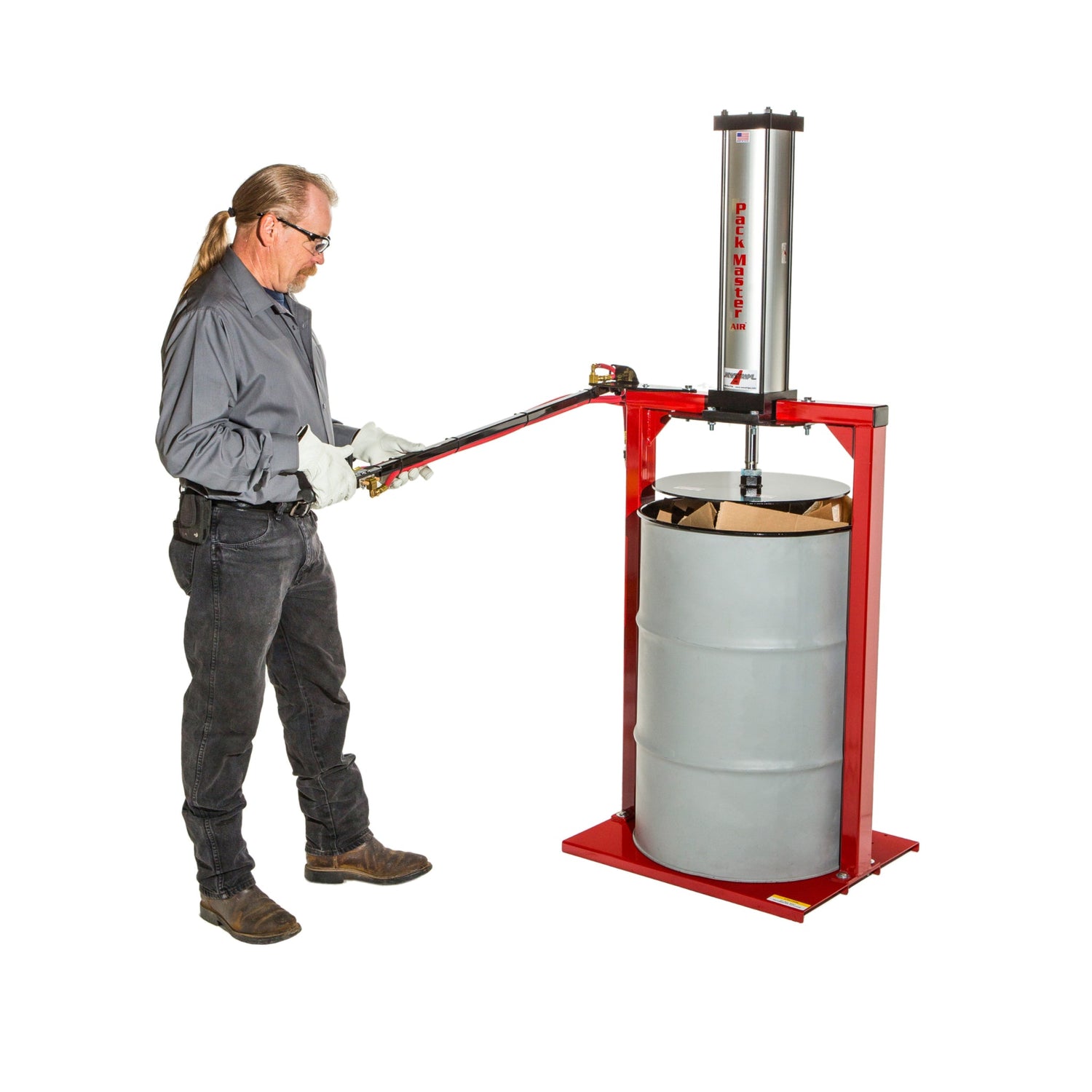

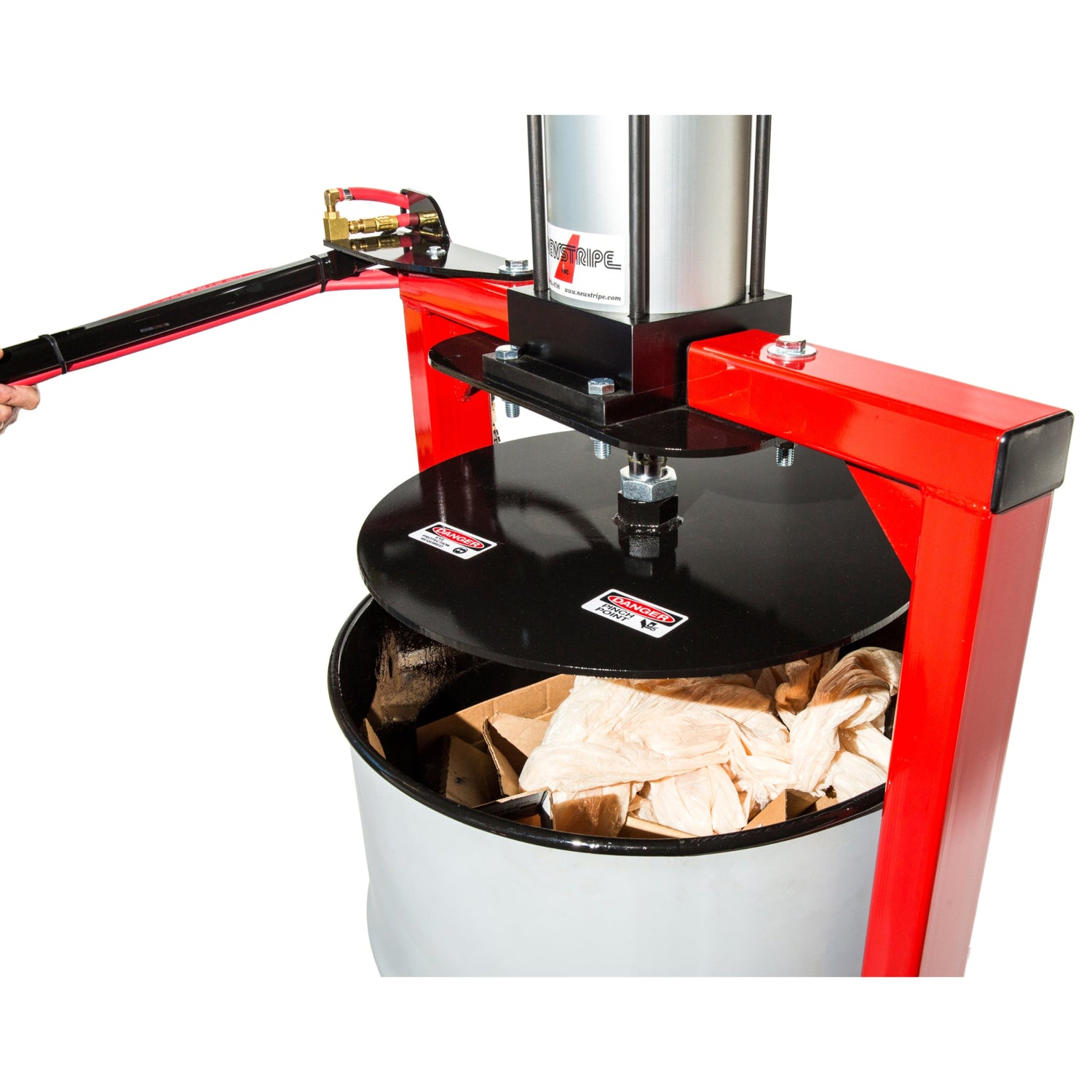

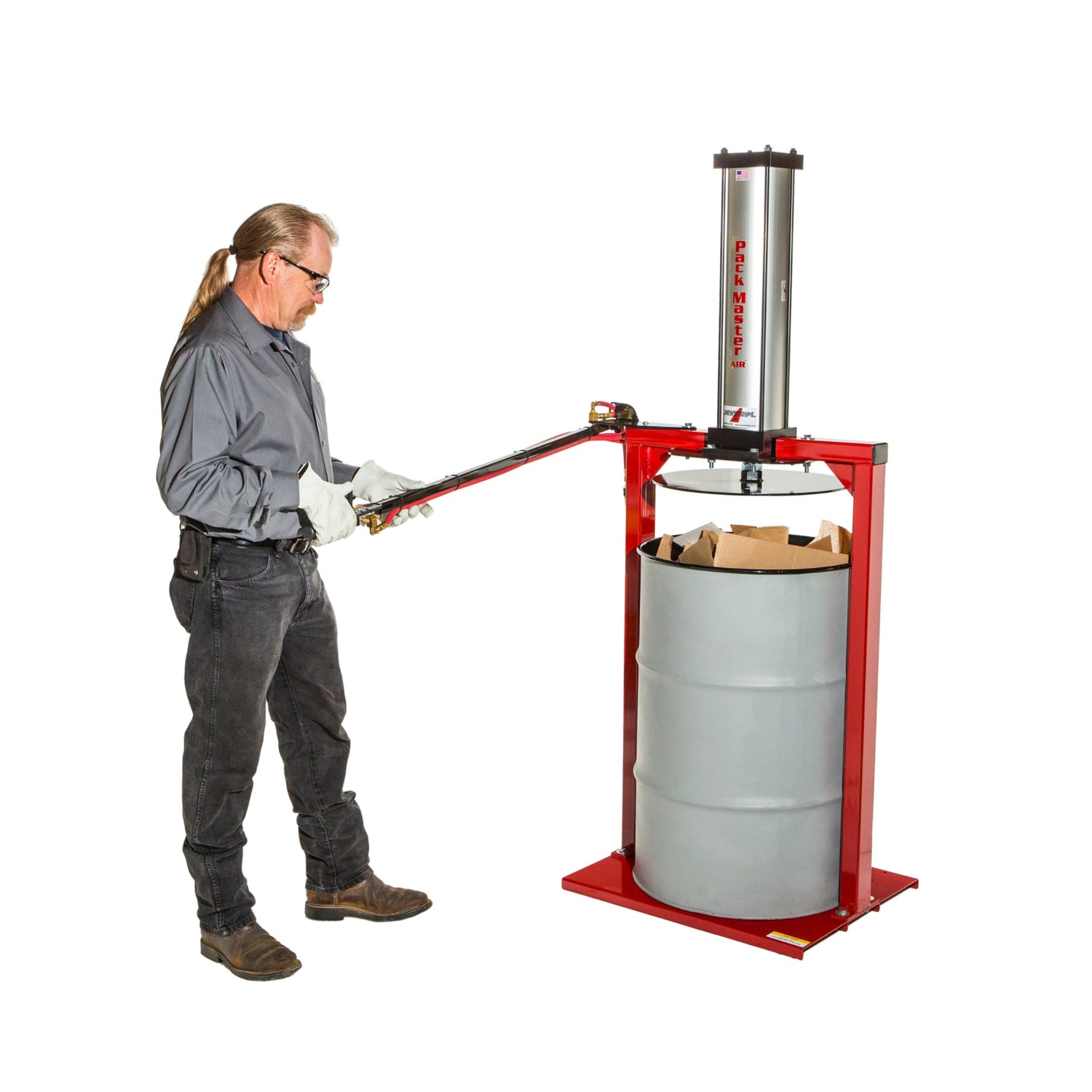

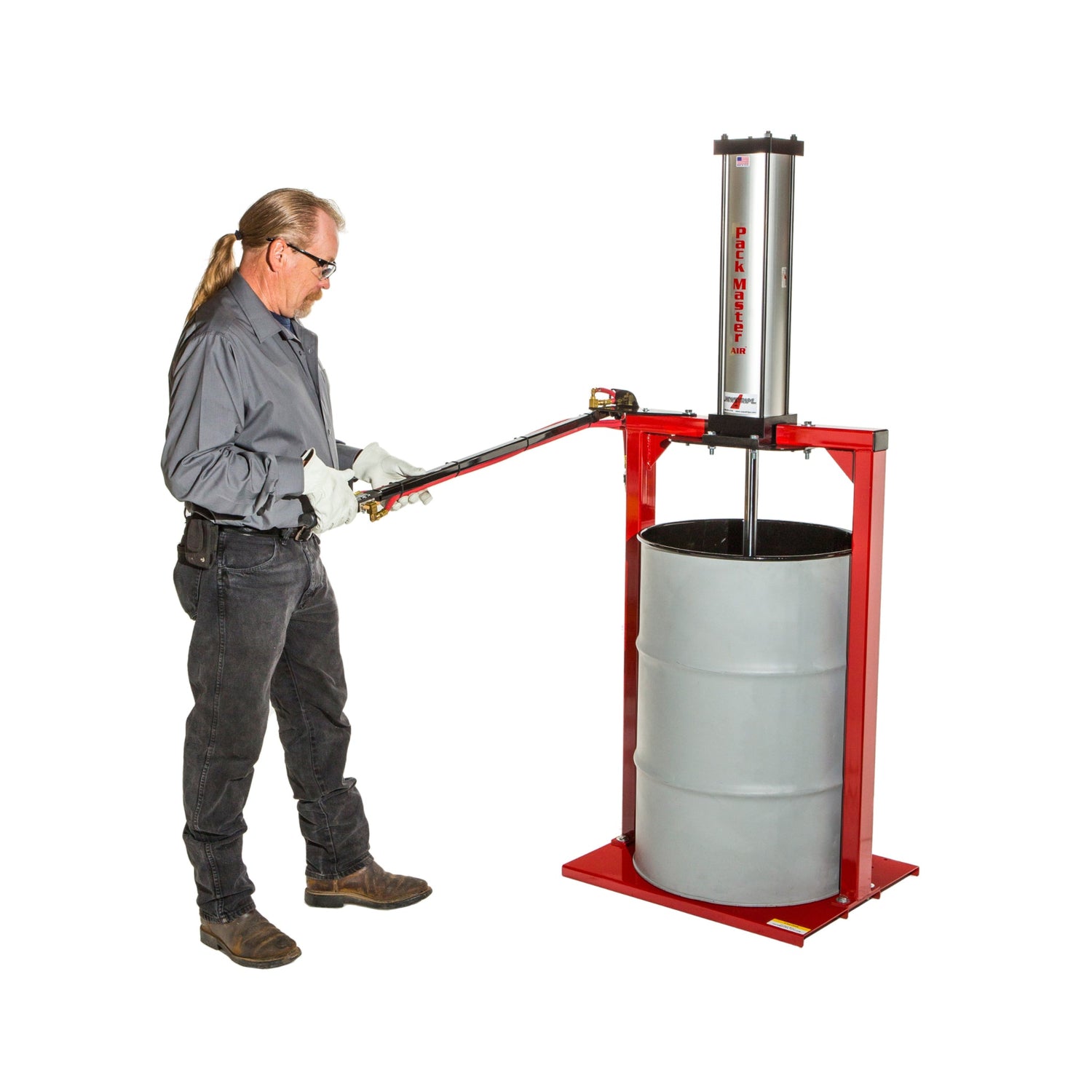

The compaction cycle completes in approximately 30 seconds at 100 psi supply pressure, with operation controlled via a joystick mounted on the lift arm. A two-handed safety lever is integrated into the control system, requiring simultaneous engagement to actuate the ram and keeping operator hands clear of the compaction zone during cycle execution. Loading is performed by placing the drum on the base and lowering the arm into position.
Compatibility is limited to non-hazardous compressible solids. The unit is not rated for glass containers, brittle or shatter-prone materials, sealed containers, or any waste stream containing volatile vapors or pressurized contents. A continuous compressed air supply at 100 psi is required for rated cycle performance; pressure below specification will extend cycle time proportionally.
Features
- 75% disposal volume reduction via pneumatic compaction
- 30-second compaction cycle at 100 psi air supply

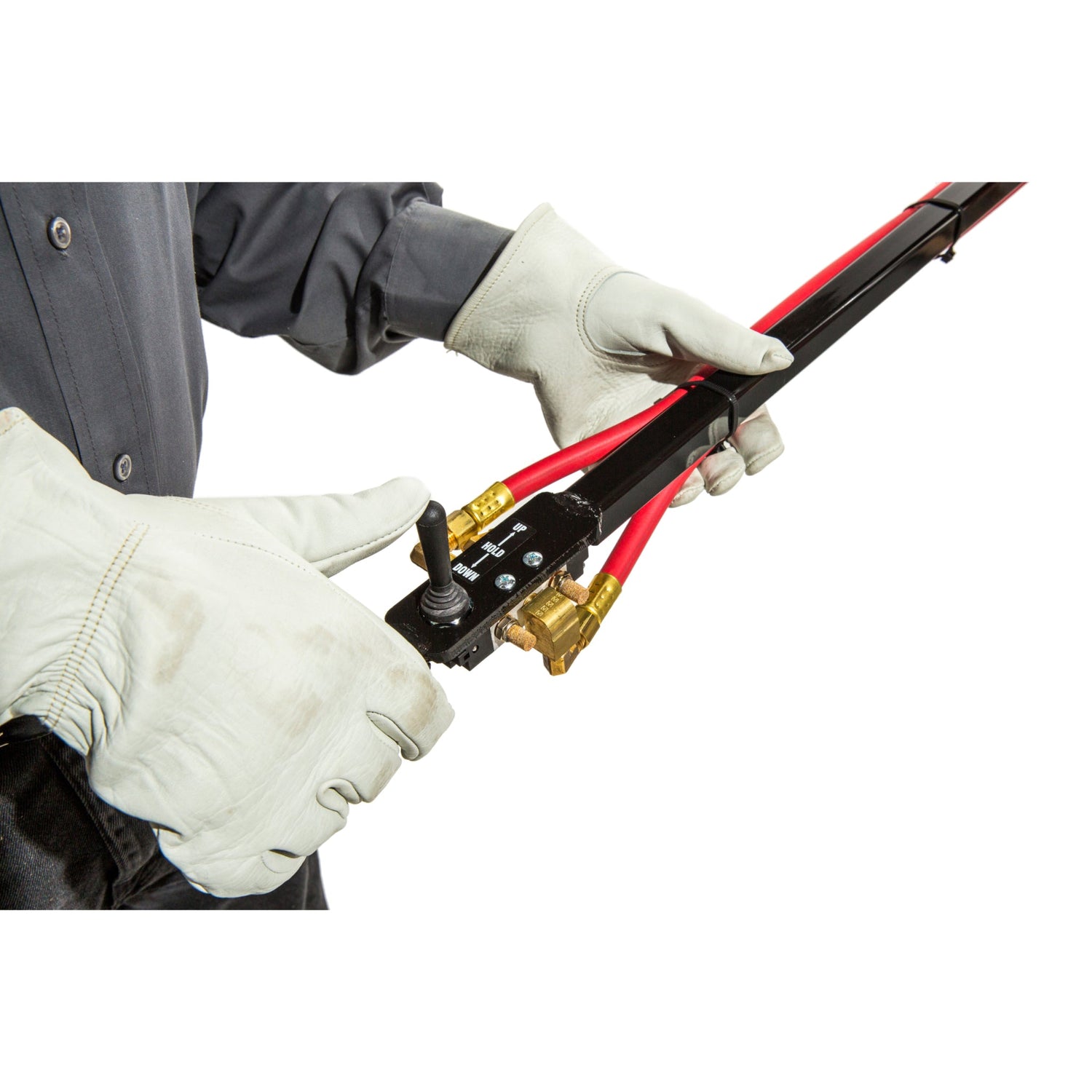

- Joystick-controlled operation mounted on lift arm
- Two-handed safety lever prevents accidental actuation
- 55-gallon drum compatibility (standard)
- 30-gallon drum compatibility with optional 17″ ram plate (sold separately)
- Not rated for glass, shatter-prone materials, or volatile/flammable waste
What's Included
- Base Plate
- Upright Arms (2)
- Air Cylinder Assembly
- Air Cylinder Mounting Plate
- Ram Plate
- Control Arm w/ Mounting Bracket
- (5) ½” x 2” Long Bolts
- (5) ½” x 1 ½” Long Bolts
- (16) ½” Washers
- (10) ½” Lock Nuts
- Product Manual
Specifications
| APPLICATION | |
|---|---|
| Application | Waste Compaction |
| Power Source | Air Powered (100 psi minimum) |
| COMPATIBILITY | |
| 55-Gallon Drum | Compatible (included 20" Ram Plate) |
| 30-Gallon Drum | Compatible (optional 17" Ram Plate) |
| PERFORMANCE | |
| Compaction Force | 3500 lbs at 125 psi |
| Compaction Time | 30 Seconds |
| DIMENSIONS & WEIGHT | |
| Dimensions | 36" L × 24" W × 76" H |
| Ship Dimensions | 48" L × 25" W × 18" H |
| Weight | 190 lbs |
| Ship Weight | 210 lbs |
| ORIGIN & WARRANTY | |
| Origin | Made in the USA |
| Warranty | 18 Months |
| Shipping | Free shipping within contiguous U.S. |
