Triumph NTO-10A 10,000 lb Two Post Overhead Auto Lift
Triumph NTO-10A 10,000 lb Two Post Overhead Auto Lift - Warehouse Pickup is backordered and will ship as soon as it is back in stock.
New Customer Discount
Tap the code below to copy, then paste at checkout
Triumph NTO-10A 10,000 lb Two Post Overhead Auto Lift
Questions Before Buying?
Description
Description
Description

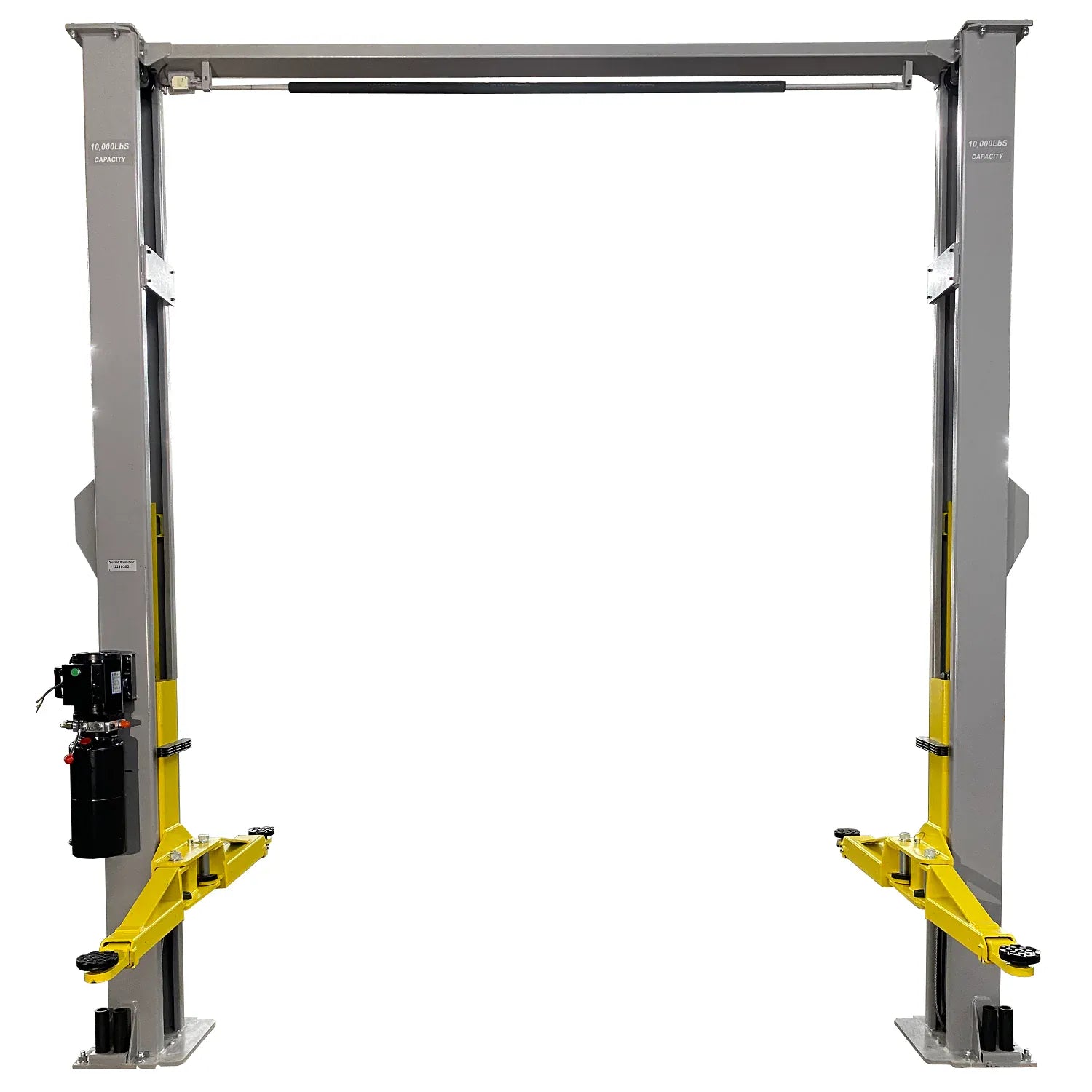

The Triumph NTO-10A is a 10,000-lb two-post overhead automotive lift built for working shops and serious home garages that need to raise everything from compact cars to three-quarter-ton trucks. The overhead design routes the equalizer cables and hydraulic hoses across the top beam instead of the floor, so the bay between the columns stays clear for rolling tools, transmission jacks, and drained fluids.
Two posts carry the load on a pair of factory-installed hydraulic cylinders, with a chain-drive lifting system and cable equalization that keeps both carriages rising together. Full lift takes about 40 seconds, and the carriages hold on mechanical safety locks at the position you set. The 72-inch lifting height gives most technicians room to stand and work under the vehicle, and the lift settles to a 4.5-inch lowered height so low-clearance cars drive on without ramps.
The NTO-10A bolts to a level concrete slab, a minimum 4-inch, 3,000-PSI floor, and runs on 220V single-phase power. Plan for a bay with at least 12 feet of ceiling clearance and have a qualified electrician make the power connection. Most installers set the lift up in three to four hours.
Features
- Single-point lock release: one lever drops the carriage locks so you can lower the lift quickly and consistently.

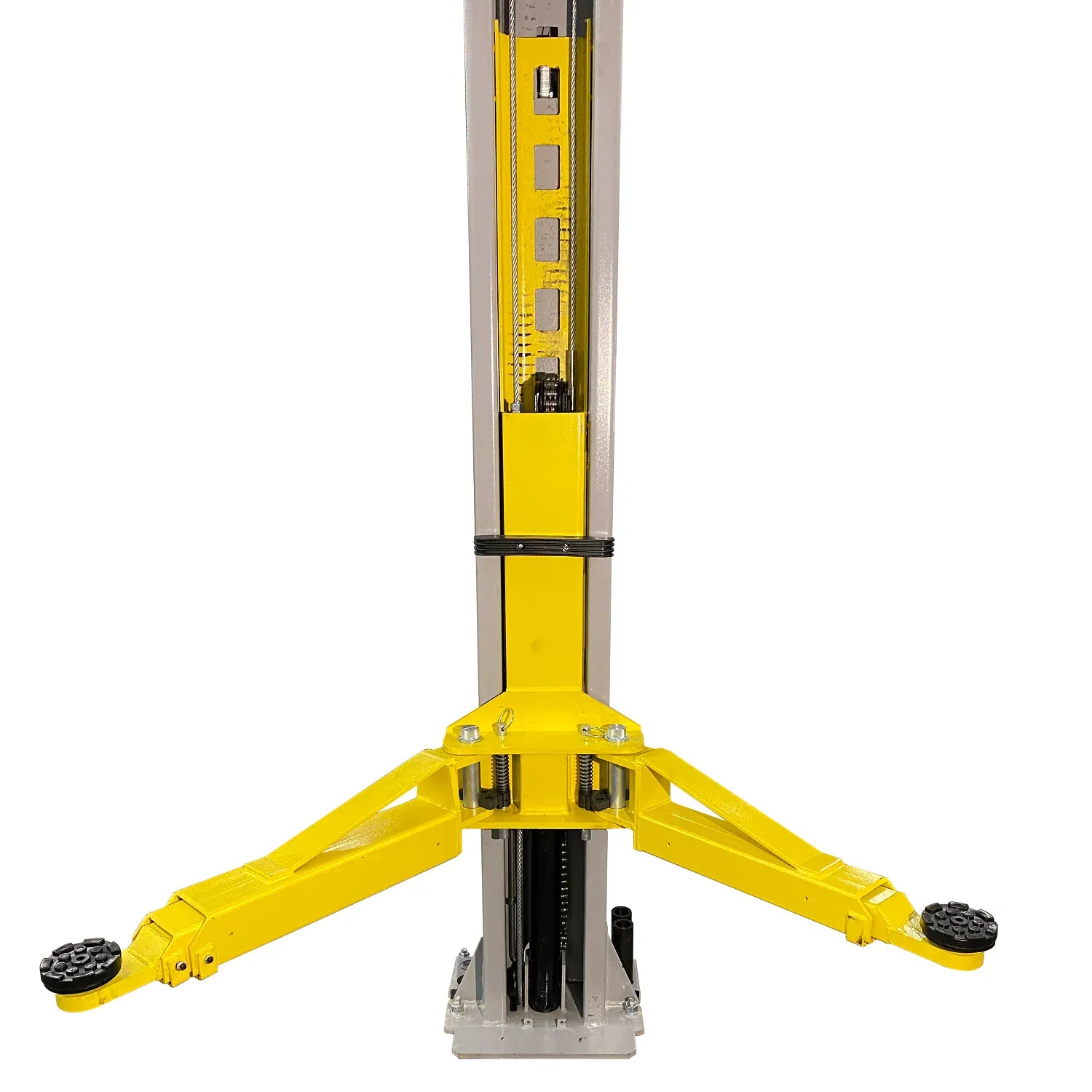

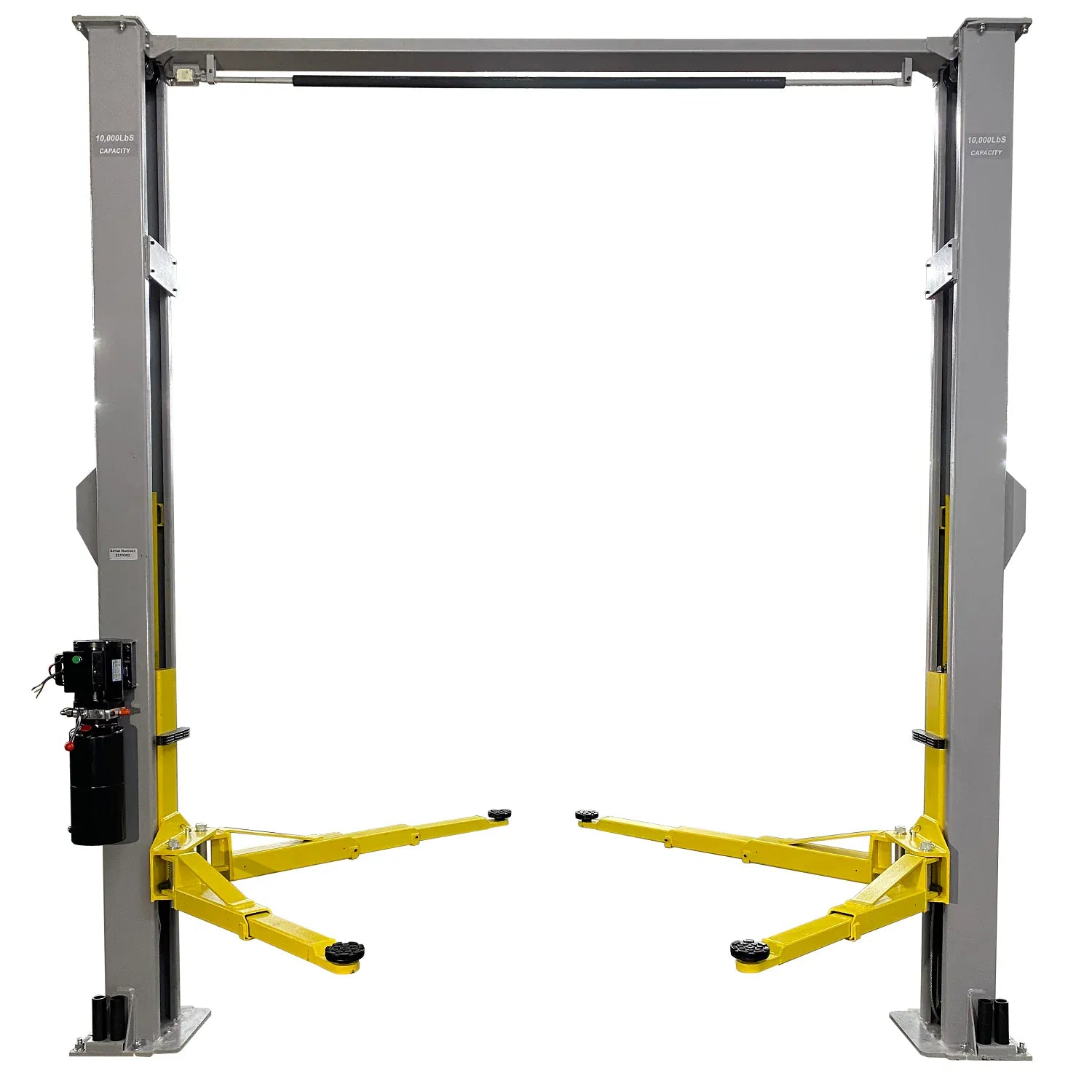

- Versymmetric three-stage arm set: two three-stage front arms reach in to short wheelbases and out to long ones, while two two-stage rear arms support the back of the vehicle. Front arms extend from 29 to 51.5 inches; rear arms from 27 to 41.5 inches.
- Padded overhead cutoff bar: an electric safety cutoff stops the lift before the vehicle contacts the top beam.

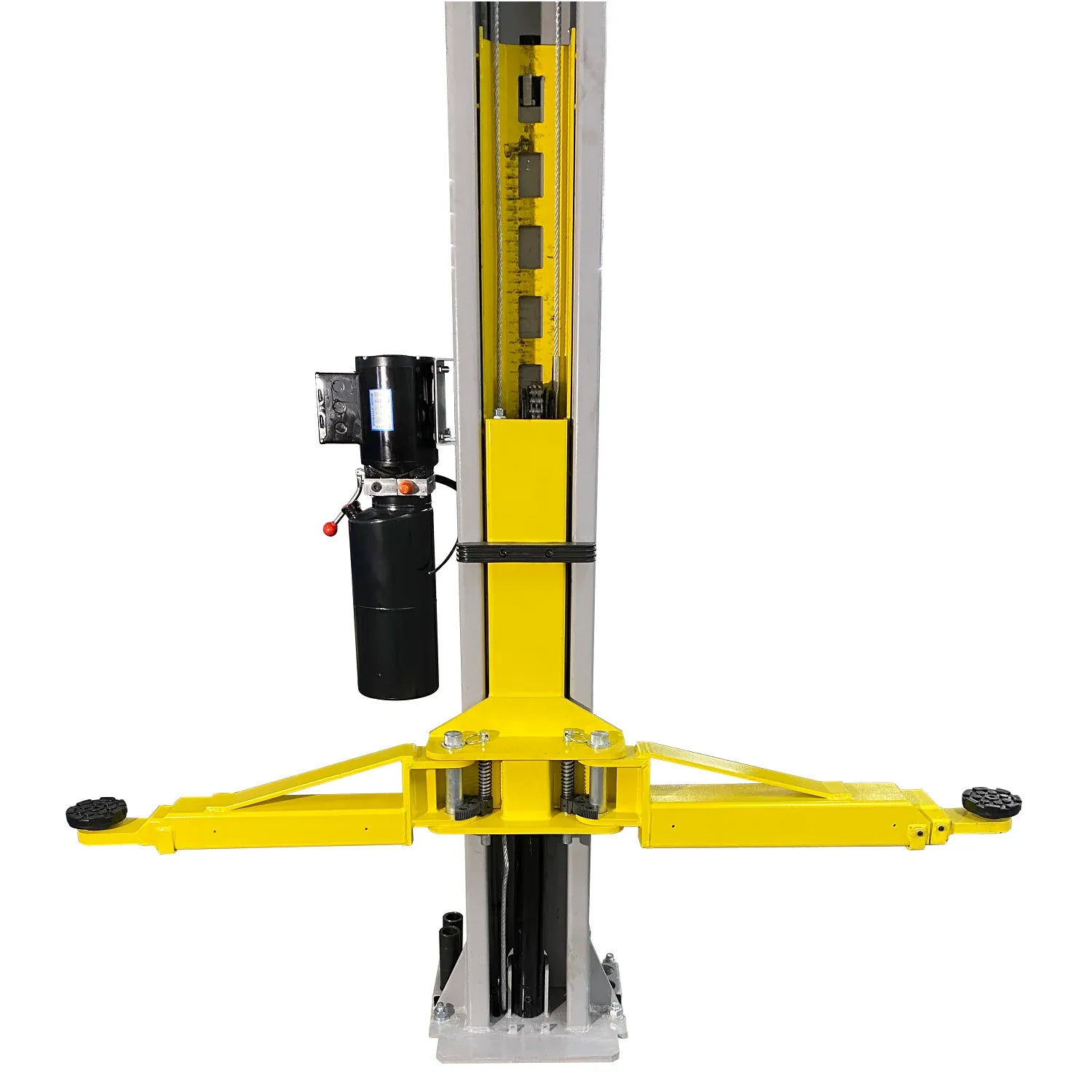

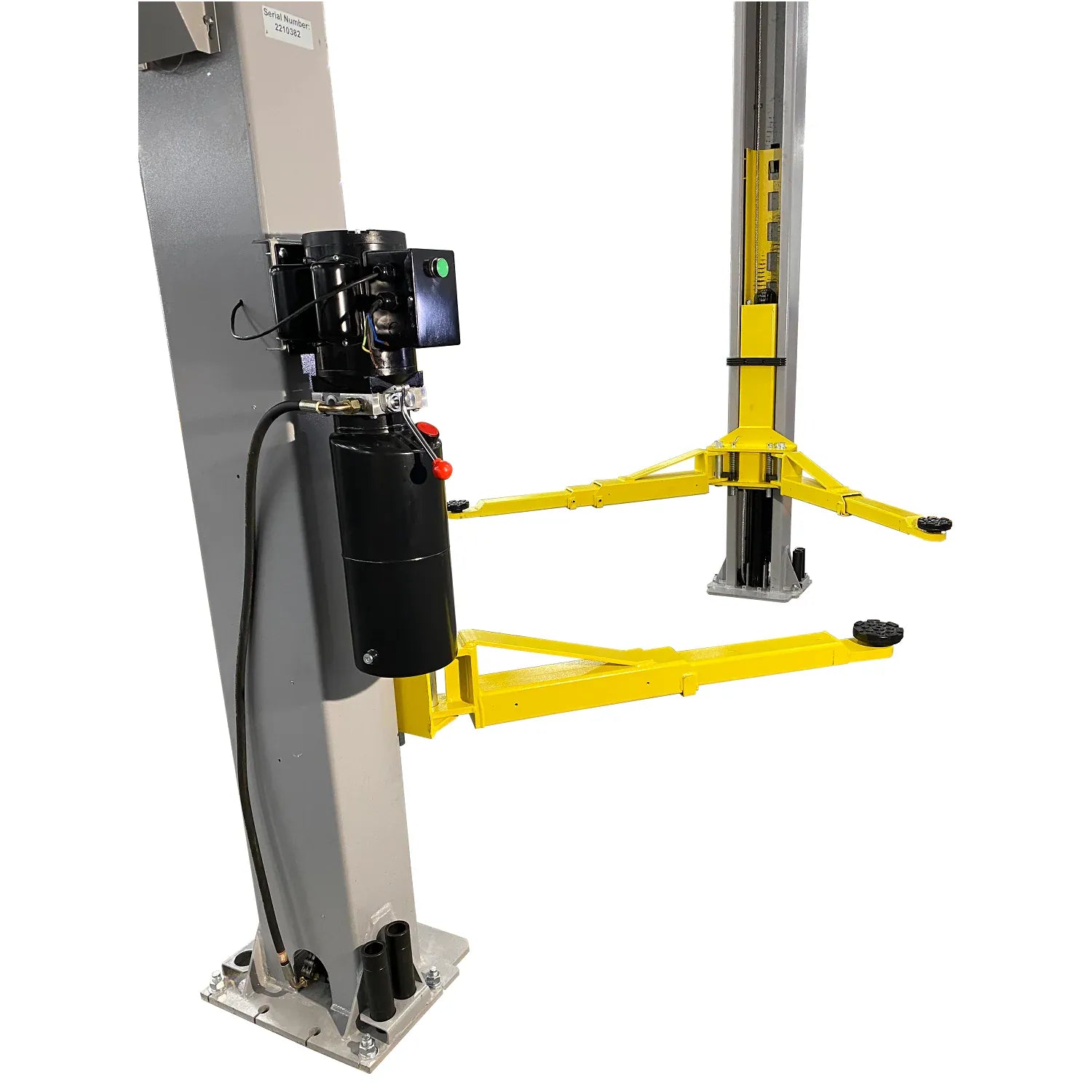

- 220V, 3 HP power unit: single-phase, 60 Hz motor with a steel-tank reservoir, mounted on the column for easy access.
- Chain-drive lifting with cable equalization: leaf chain over the cylinders does the lifting; equalizer cables keep the two carriages synchronized.

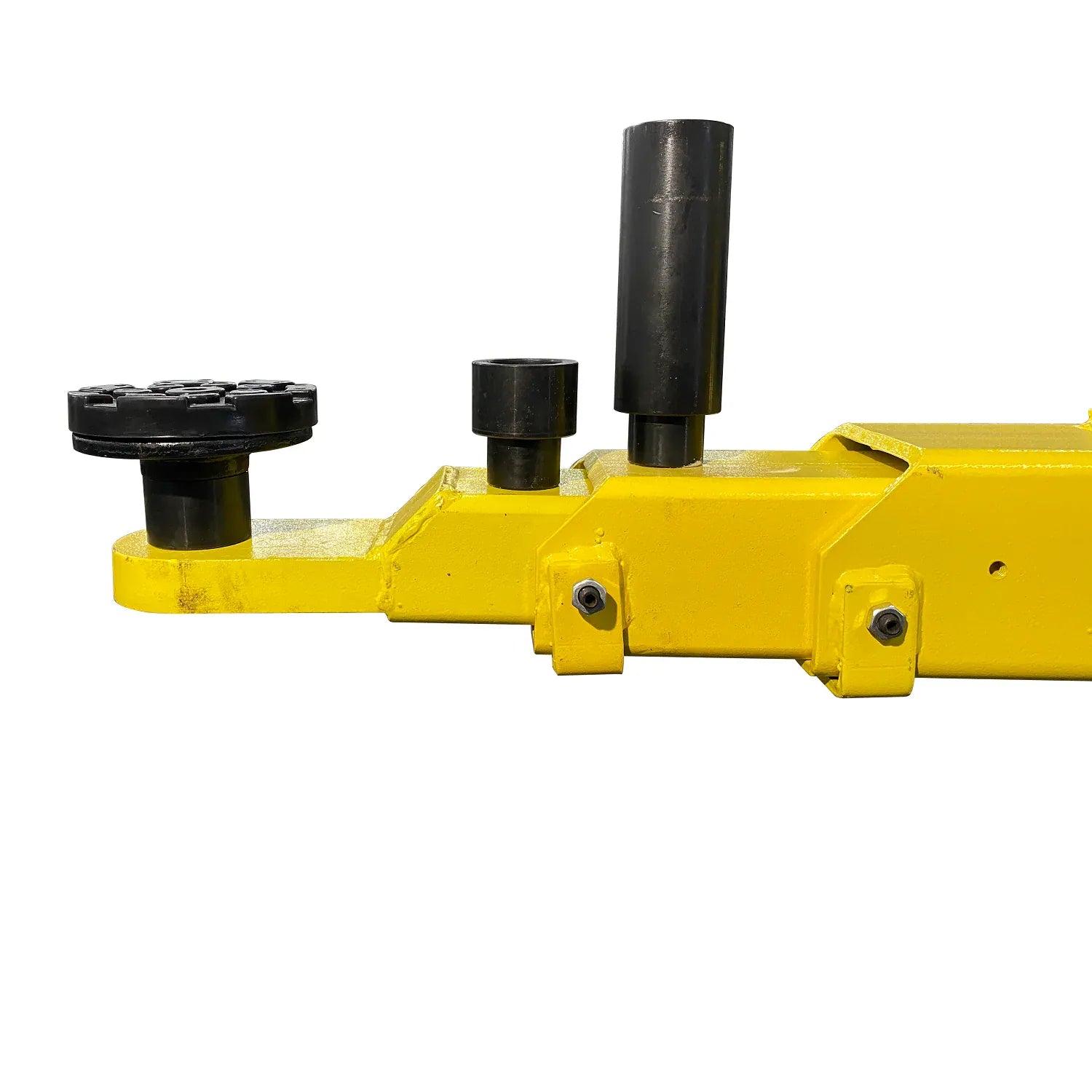

- Drop-in truck adapters: stackable adapters in 1.5-, 3-, and 6-inch heights raise the contact point for trucks and SUVs.
- Rubber door protectors: column-mounted guards shield vehicle doors during loading and unloading.
What's Included
- 220V, 3 HP power unit and motor
- Floor mounting hardware and anchor bolts
- Drop-in truck adapters in 1.5-, 3-, and 6-inch heights
- Rubber door protectors for both columns
- Installation and owner's manual
The NTO-10A is filled with AW32 non-detergent hydraulic oil, the reservoir holds about 12 quarts. Confirm fluid availability when you order so the lift is ready to commission after installation.
Specifications
| Triumph NTO-10A Two Post Overhead Lift Specifications | |
|---|---|
| Capacity | 10,000 lbs |
| Lifting Height | 72" |
| Lift Time | About 40 seconds |
| Lowered Height | 4.5" |
| Overall Height | 145" |
| Overall Width | 133" |
| Distance Between Posts | 107" |
| Drive-Thru Width | 96" |
| Base Plate Size | 18" x 17" |
| Arms | Two 3-stage front arms, two 2-stage rear arms |
| Truck Adapters | Yes, drop-in adapters in 1.5", 3", and 6" heights |
| Lock Release | Single point |
| Safety | Electric safety cutoff (padded overhead bar) |
| Power Unit | 220V single-phase, 60 Hz, 3 HP |
| Hydraulic Fluid | AW32 non-detergent, about 12 qt capacity |
| Concrete | 4" minimum slab, 3,000 PSI |
| Style | Overhead |
| Shipping Weight | About 1,407 lbs |
| Plan for at least 12 ft of ceiling clearance. Power connection must be made by a qualified electrician. See the installation manual for complete concrete, anchoring, and electrical requirements. | |
Warranty
The NTO-10A carries a 1-year parts warranty (parts only, no labor). If a part fails, you call Triumph, troubleshoot the problem over the phone, and the replacement part ships to you free of charge by ground service at no cost for the part or the shipping. Labor to install the replacement is not covered. Rubber lifting pads are not covered. The hydraulic cylinders carry a 30-day full warranty, after which a seal kit is provided.
Shipping & Delivery
The NTO-10A ships by LTL common-carrier freight on a standard semi-trailer and weighs about 1,407 lbs on the pallet. The driver delivers to your address but does not unload, you are responsible for removing the lift from the truck with a forklift, telehandler, tractor, or similar equipment, and lift-gate service is not available for automotive lifts of this size. The freight carrier sets up a delivery appointment to a physical address; if a semi cannot reach your location, the lift can be routed to the carrier's nearest terminal for pickup with a trailer. To schedule freight delivery or ask about terminal pickup, email support@projectfoundry.co or call 331-272-5655.
FAQ
What vehicles will the NTO-10A handle?
It is rated at 10,000 lbs, with three-stage front arms and two-stage rear arms that adjust to short and long wheelbases. Drop-in adapters in 1.5-, 3-, and 6-inch heights extend the reach to truck and SUV pickup points.
How much ceiling height do I need?
Plan for a bay with at least 12 feet of ceiling clearance. Confirm the exact clearance for your installation against the installation manual.
What concrete does it require?
A level concrete slab of at least 4 inches at 3,000 PSI, anchored per the installation manual. The lift cannot be installed on asphalt or other unstable surfaces.
What are the electrical requirements?
The power unit runs on 220V single-phase, 60 Hz power and draws 3 HP. A qualified electrician should make the connection on a dedicated, properly protected circuit.
How long does installation take?
Most installers complete setup in about three to four hours, plus the electrical hookup. The lift anchors to the slab and is cycled several times to bleed air before any vehicle is loaded.
What is covered under warranty?
Parts are covered for 1 year (no labor). Failed parts are diagnosed by phone and shipped free by ground. The hydraulic cylinders have a 30-day full warranty, then a seal kit is provided. Rubber lifting pads and labor are not covered.
