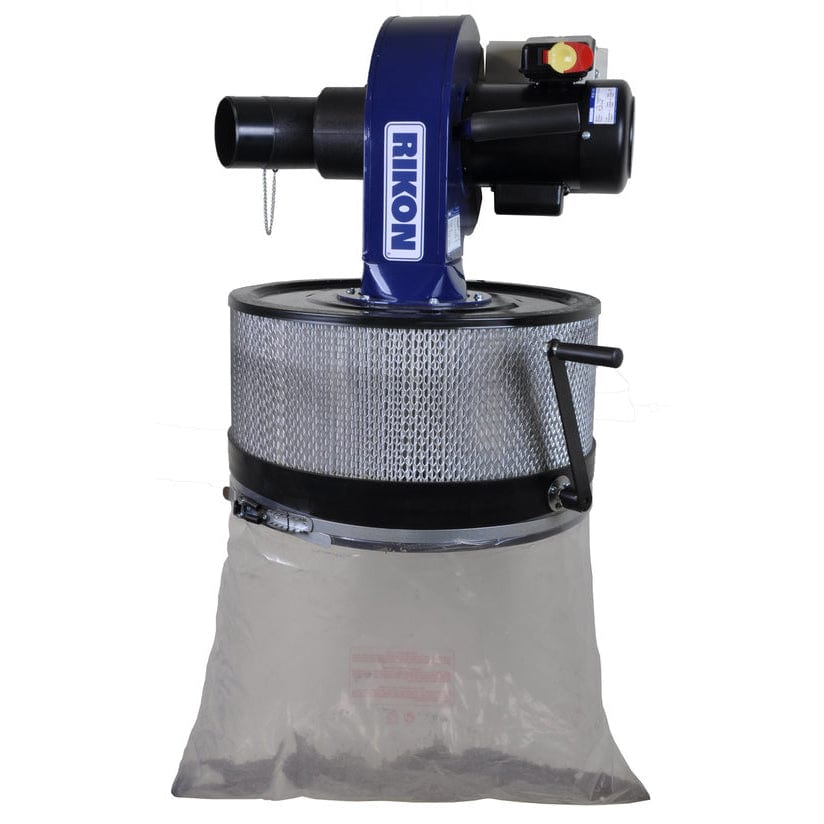

RIKON Wall Mount Dust Collector - 1 HP
RIKON Wall Mount Dust Collector - 1 HP is backordered and will ship as soon as it is back in stock.
Ships fast. Enter your ZIP for a delivery date.
Save $150 Today
Up To15% OffUp to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.
RIKON Wall Mount Dust Collector - 1 HP
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
The 60-101 dust collector has a single 5" dust port with a dual 4" Y fitting for use with two operating machines at once. Just cap one of the inlets for full air drawing power on one device, then quickly switch inlets to use with the other machine! Polyester spun bond pleated canister filter includes an internal flapper to clean its air-filtering fabric. Just turn the unit's side handle to activate the cleaner! All the wood collection debris falls into the bottom clear plastic bag for easy disposal.
Dust Collector includes wall mounting bracket, pleated canister filter with cleaning handle assembly, disposable plastic dust bag, strap clamp, dual 4" inlet fitting, 4" inlet cap, on/off safety switch, and instruction manual.
Features:
- 1 HP totally-enclosed, fan-cooled motor
- Powerful 800 or 1,100 CFM suction
- Two 4" dust port inlets for attaching to a single or multiple machine set-up
- Wall mount bracket for space-saving, out-of-the-way positioning in your shop
- Pleated canister filter captures particles as small as 1 micron
- Cleans easily with rotating internal flappers
- Includes clear plastic disposable bottom bag with a quick-release band clamp
- For dry use only, not for wet applications
- Motor: 1 HP, TEFC (Totally-Enclosed, Fan-Cooled)
- Voltage: 120/240V (for use with 3-wire 120V receptacle)
- Motor Speed (no load): 3450 RPM
- Amp, Hertz, Phase: 7/3.5A, 60 Hz, 1-Phase
- Dust Collection Velocity CFM: 800 at 4" or 1100 at 5" inlet
- Maximum Static Pressure at 0 CFM: 7.2"
- Blower Impeller: 10" diameter, aluminum
- Sound Rating at 6 feet: <86.375 dB
- Canister Filtration rating: 1 micron
- Filtration Efficiency: 99%
- Canister Pleated Filter Size: 19-5/8" x 7-1/8"
- Total Pleated Filter Surface: 13.46 sq. ft.
- Filter Cleaning Method: Hand crank, internal rotating flapper
- Plastic Bag Length (installed): 20"
- Plastic Bag Capacity: 1.5 cu. ft.
- Dust Ports/Hose Connections: 1 at 5", 2 at 4"
- Intake Funnel Size: 5" diameter
- Machine Certification: CSA
- Construction: All metal frame
- Overall Size (L x W x H): 23-1/2” x 21” x 46”
- Net Weight: 61 lb.
- (1) Rikon® 1 HP Wall Mount Dust Collector (60-101)
