The Dk2 18” Trencher,Kohler Ch270 7 Hp Engine - OPT118

Product Description

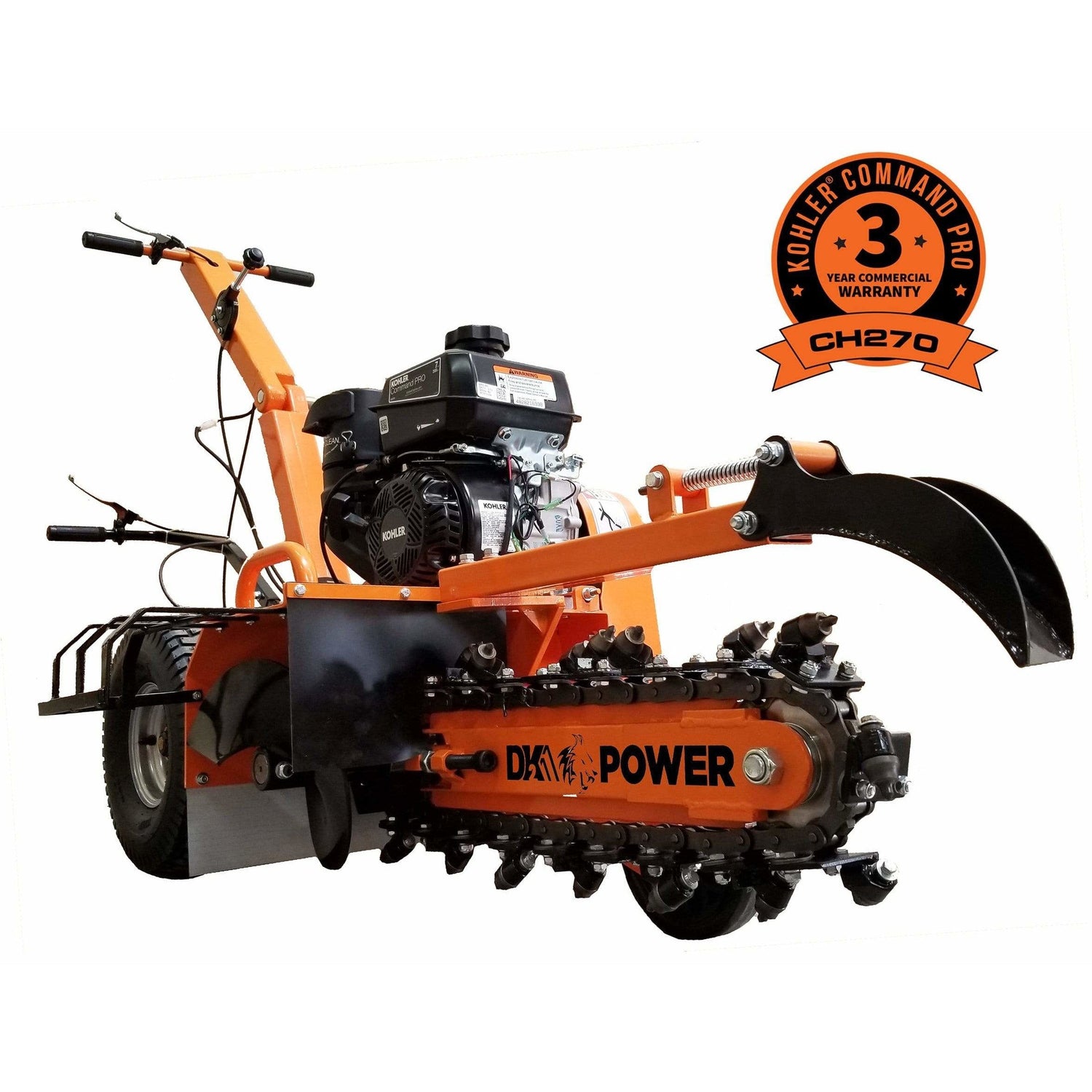

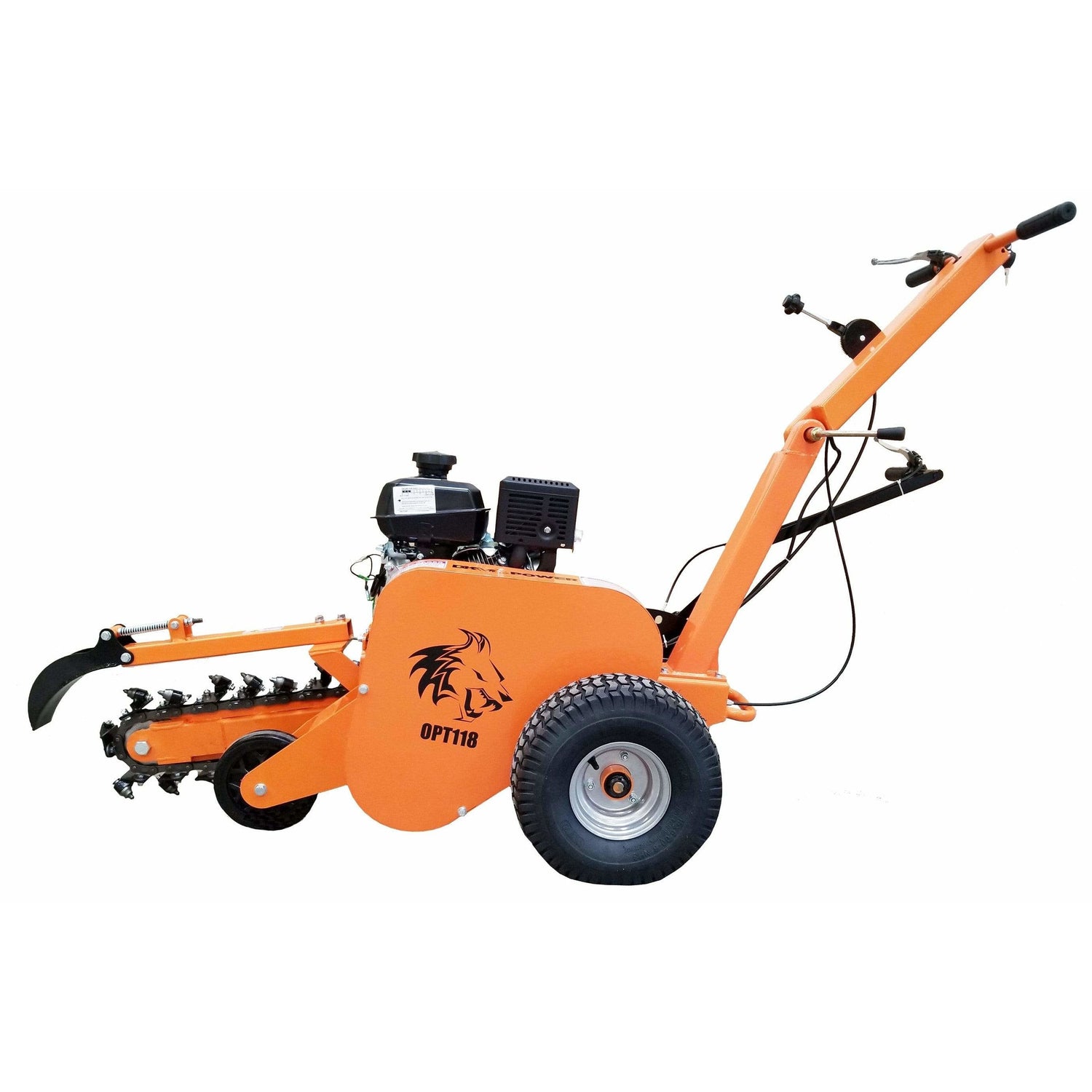

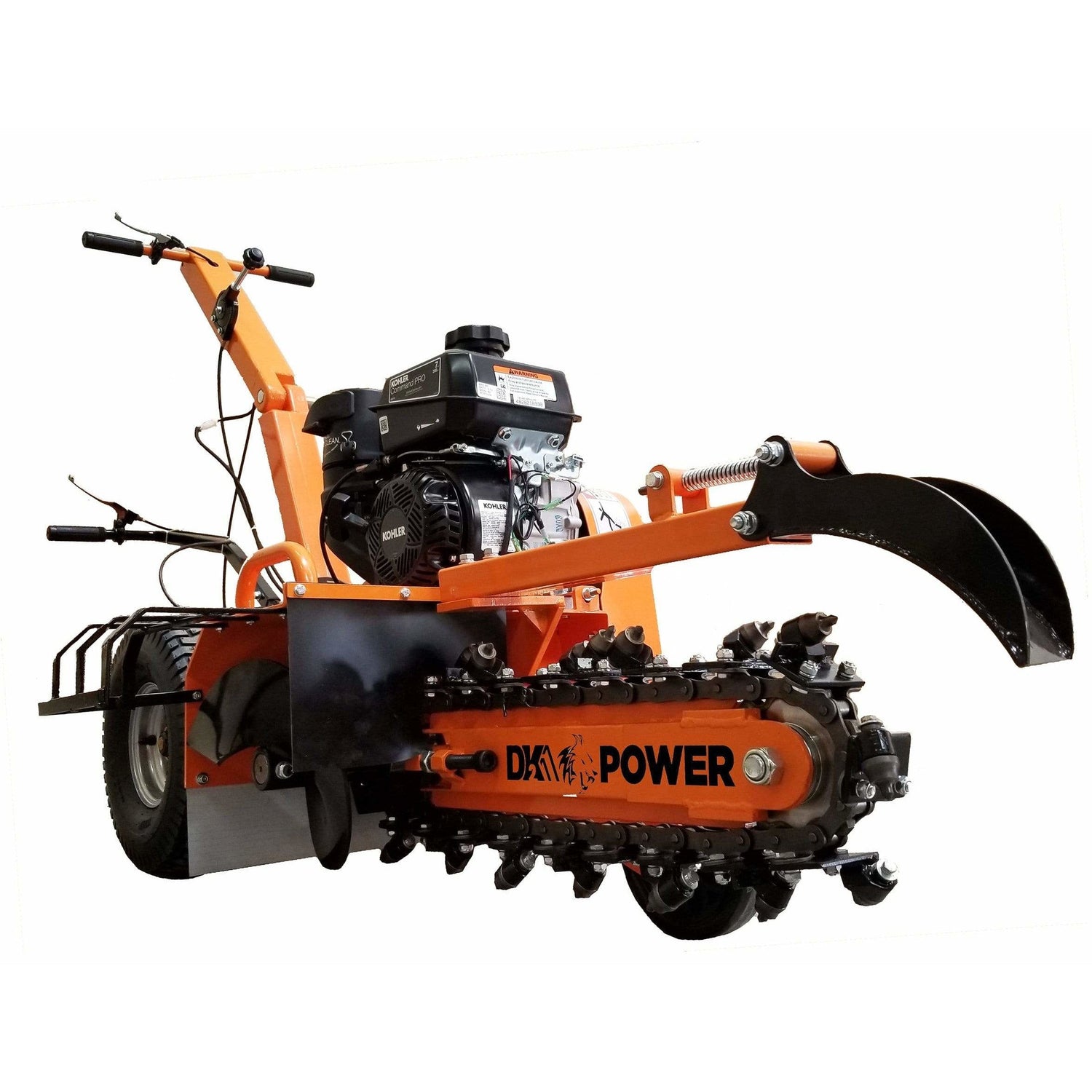

The Dk2 18” Trencher, Kohler Ch270 7 Hp Engine - OPT118

Features

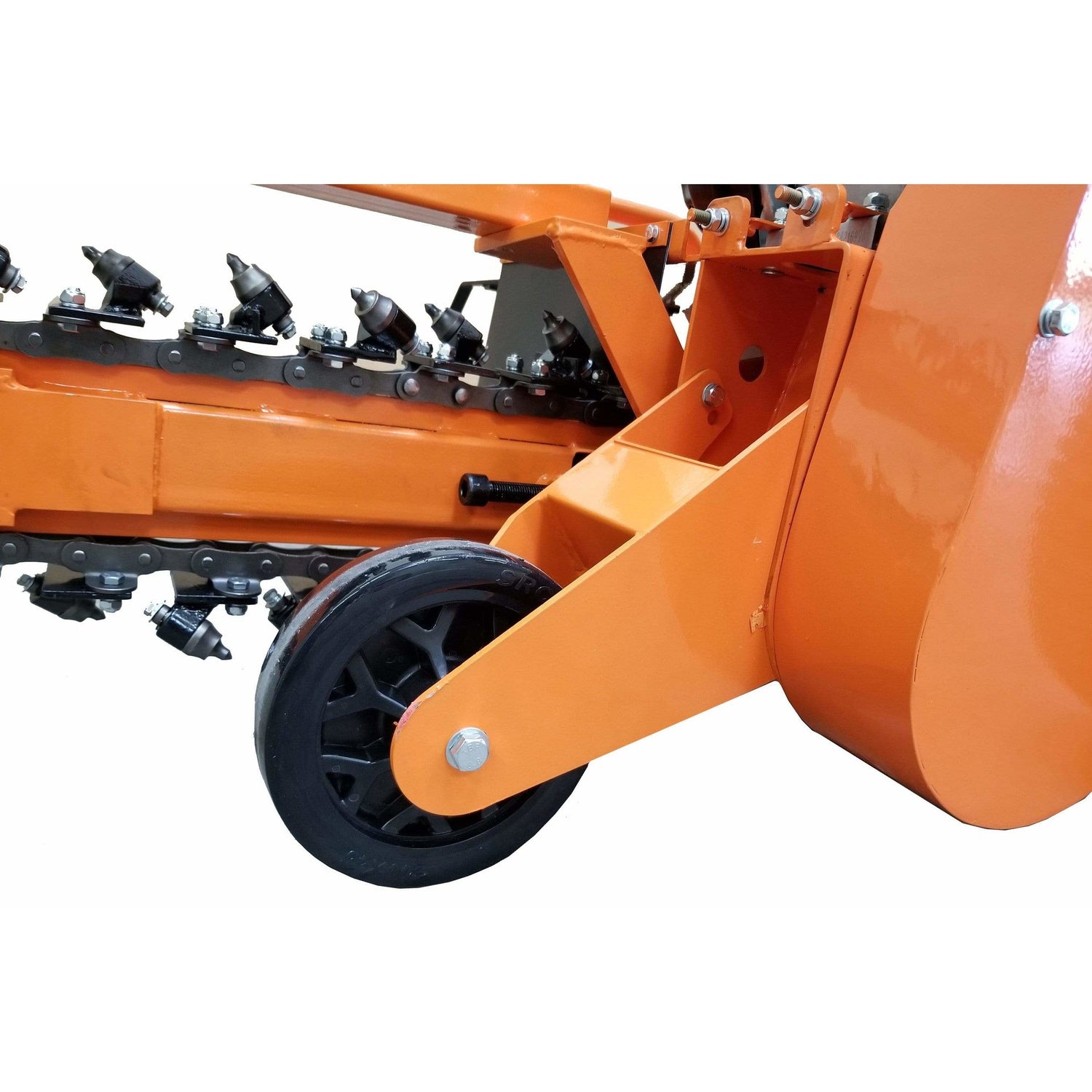

High pressure sintered 21 Tungsten Carbide cutters are mounted on a 63 in. chain and spin at 400RPM. The unit can trench at 200 ft./hour and provides an aggressive 10.5 ft./lbs. of torque that easily digs 4 in. W trenches. The unit features an adjustable leveling handle, axle auto lock when in reverse, quick all position depth change, quick change teeth with 3/8 in. plow plates and HD trolley wheel for easy transportation and digging stability. DK2 Power engineers and manufactures high performance equipment for the hard-working professional. The Trencher is covered by the Commercial Command Pro 3-Year Kohler warranty.

DK2 POWER ENGINEERS & MANUFACTURES HIGH PERFORMANCE EQUIPMENT FOR THE HARD-WORKING PROFESSIONAL.

• KOHLER® 7 HP CH270 engine with commercial 3-year warranty
• Direct chain drive trencher chain & auger

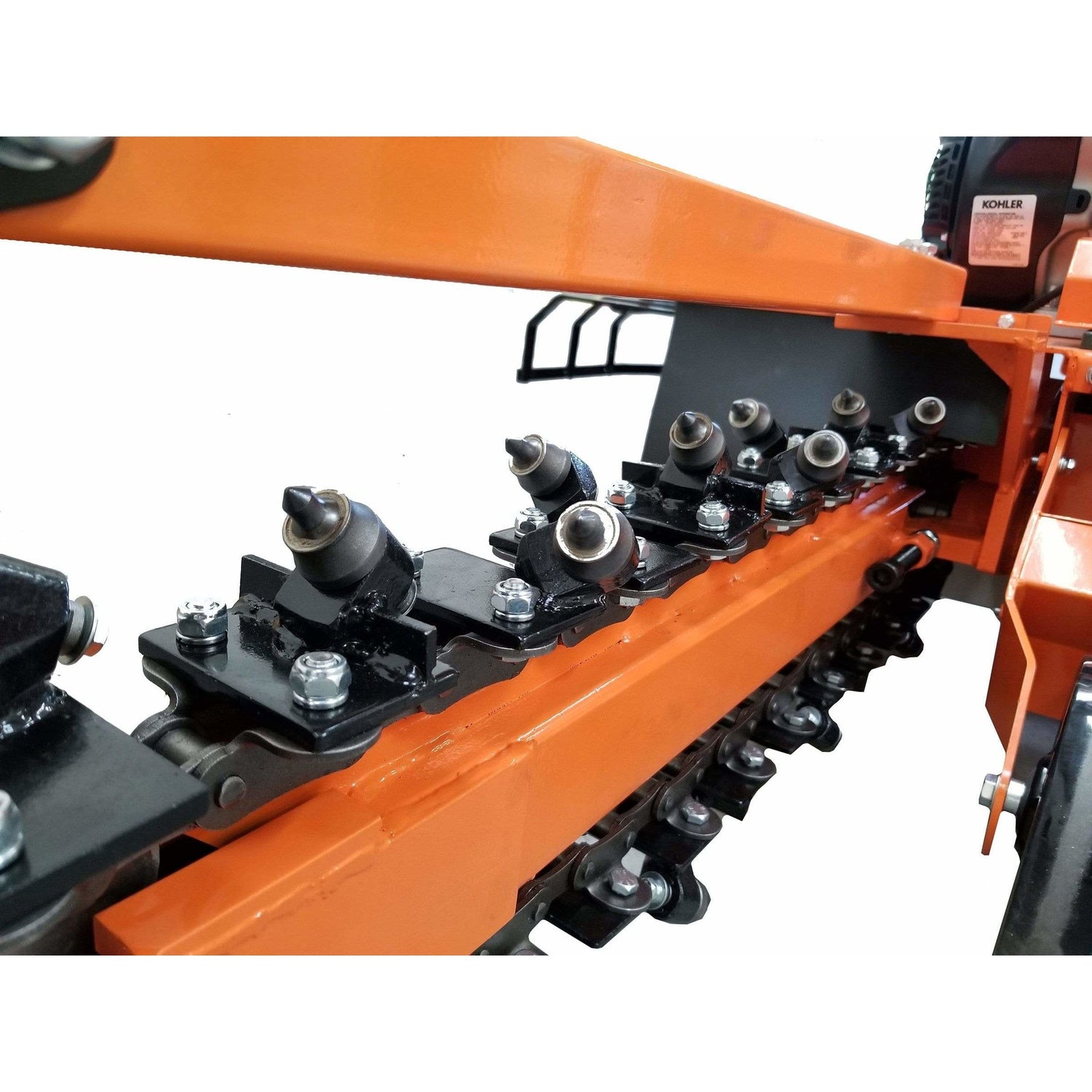

• High pressure sintered carbide teeth
• 5 depth positions

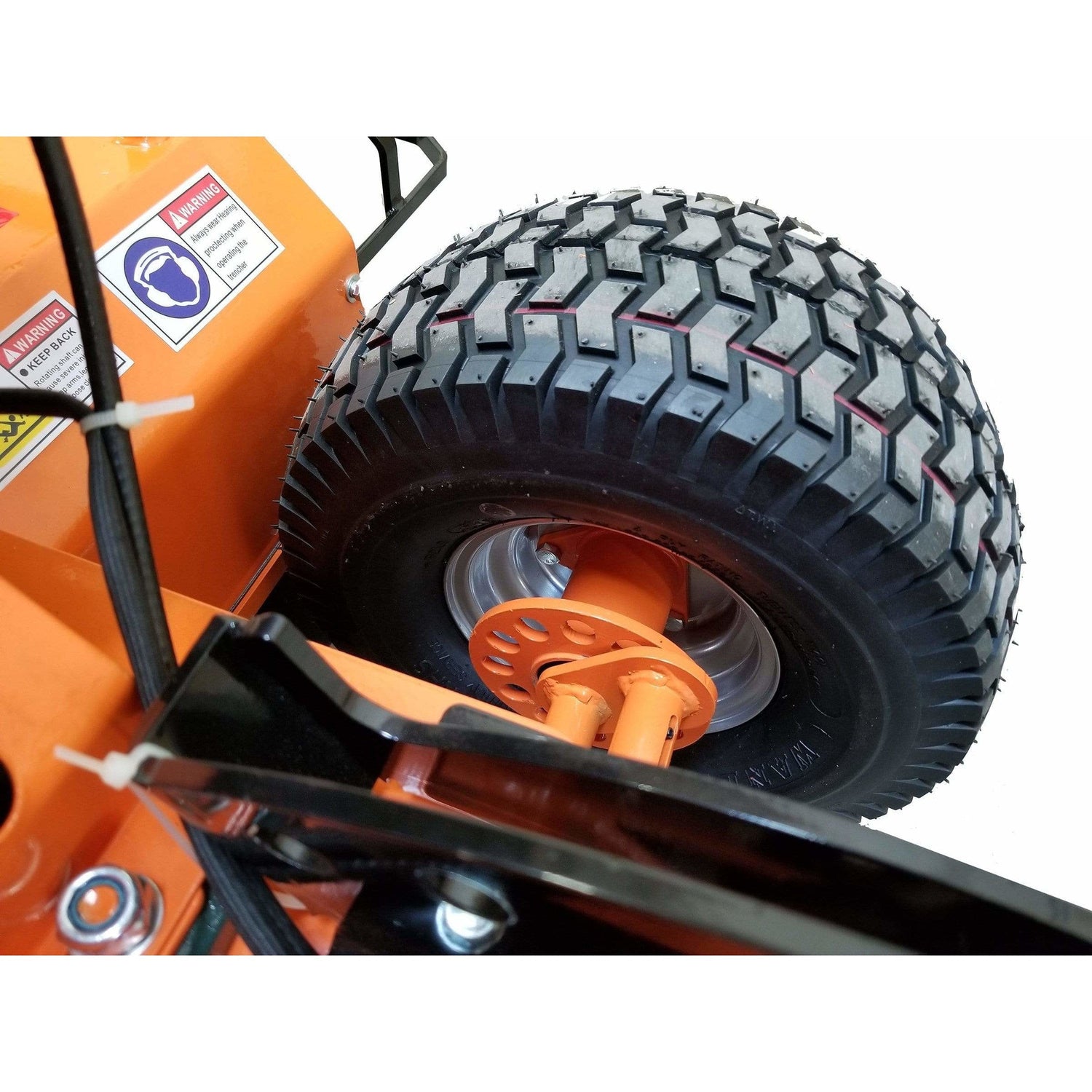

• Dual locking wheels for digging in reverse
• 3/8 plow plates with quick change teeth

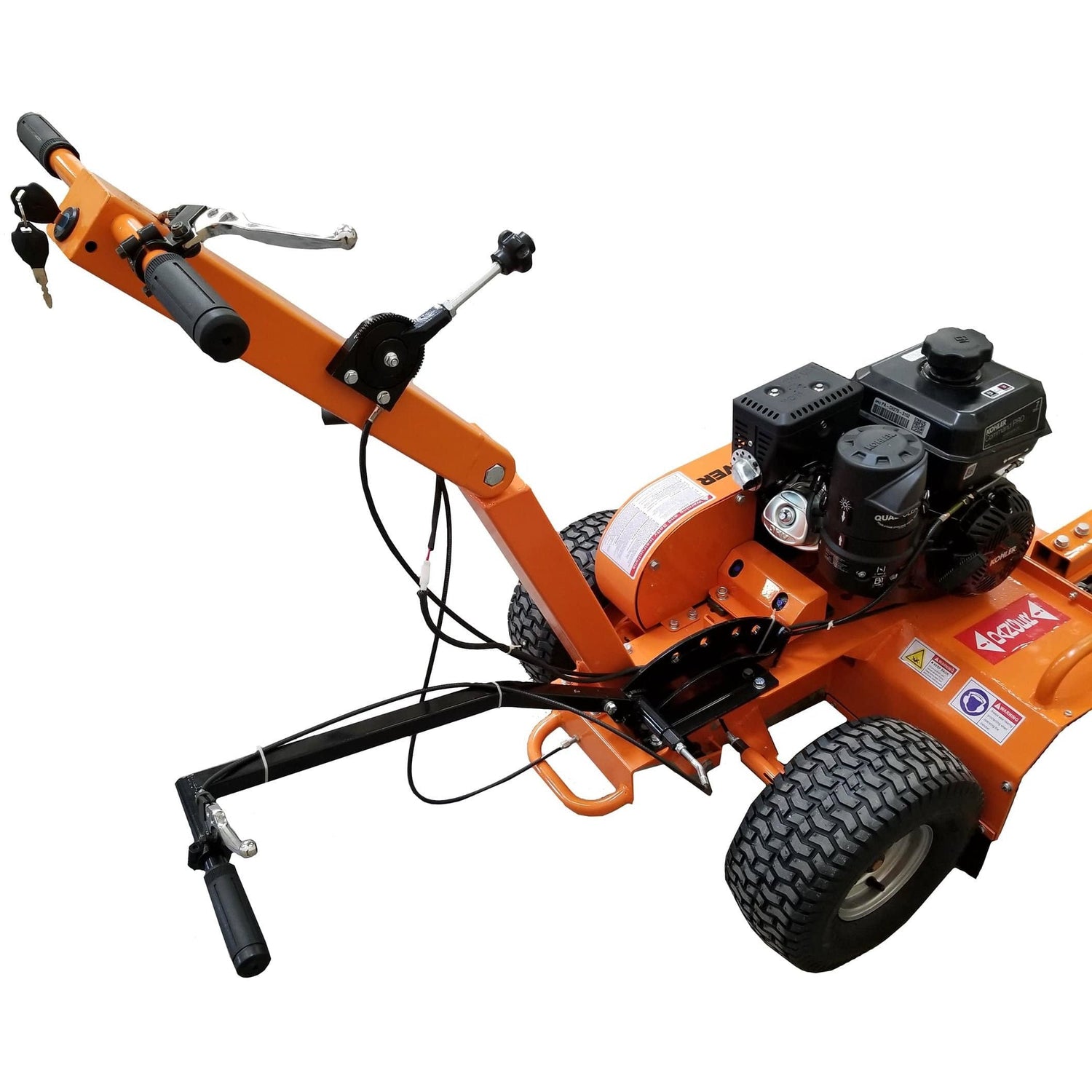

• Adjustable handle
• 6” direct drive auger
• Heavy gauge steel construction
• 4000 RPM direct drive with 400 RPM tri-cut teeth chain drive at 200ft per hour dig rate
• Release and stop safety hand grip
• Includes 3 year KOHLER® Commercial Warranty and 1 year DK2 Warranty

Specifications

ENGINE MODEL: KOHLER CH270
ENGINE: 7 HP COMMAND PRO COMMERCIAL
RATED POWER: 7 HP
RATED SPEED: 4000 RPM
CHAIN SPEED: 1800 FT PER MINUTE
CHAIN DIMENSION: 63"
TRENCH: 4 x 18
CUTTING TEETH & SPEED: 21 CARBIDE ALLOY HIGH PRESSURE TEETH @ 400 RPM
GEARBOX: DUAL BELT CHAIN DRIVE AUGER
AUGER: SIDE OFFLOAD DIRECT DRIVE
TIRES: DUAL AUTO LOCK IN REVERSE DIG
WARRANTY: 3 YEAR ENGINE, 1 YEAR CHASSIS
DIMENSIONS: 71 x 36 x 48"
WEIGHT: 320 LBS
SHIPPING DIMENSIONS: 41 x 30 x 34"
SHIPPING WEIGHT: 374 LBS
