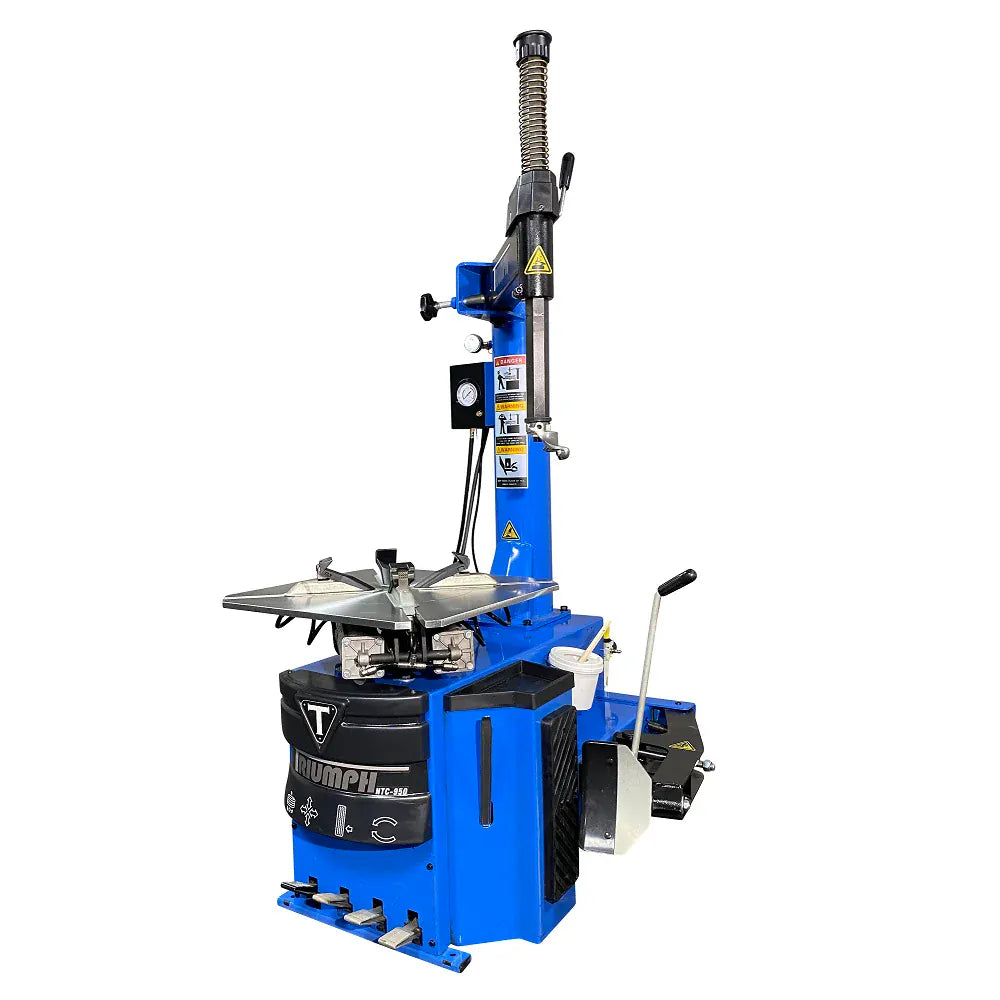

Triumph NTC-950 Tire Changer — Swing-Arm Rim Clamp, 16–28″ Clamping, 5,500-lb Bead Breaker, 110V
Triumph NTC-950 Tire Changer — Swing-Arm Rim Clamp, 16–28″ Clamping, 5,500-lb Bead Breaker, 110V - Warehouse Pickup is backordered and will ship as soon as it is back in stock.
New Customer Discount
Tap the code below to copy, then paste at checkout
Triumph NTC-950 Tire Changer — Swing-Arm Rim Clamp, 16–28″ Clamping...
Questions Before Buying?
Description
Description
Description

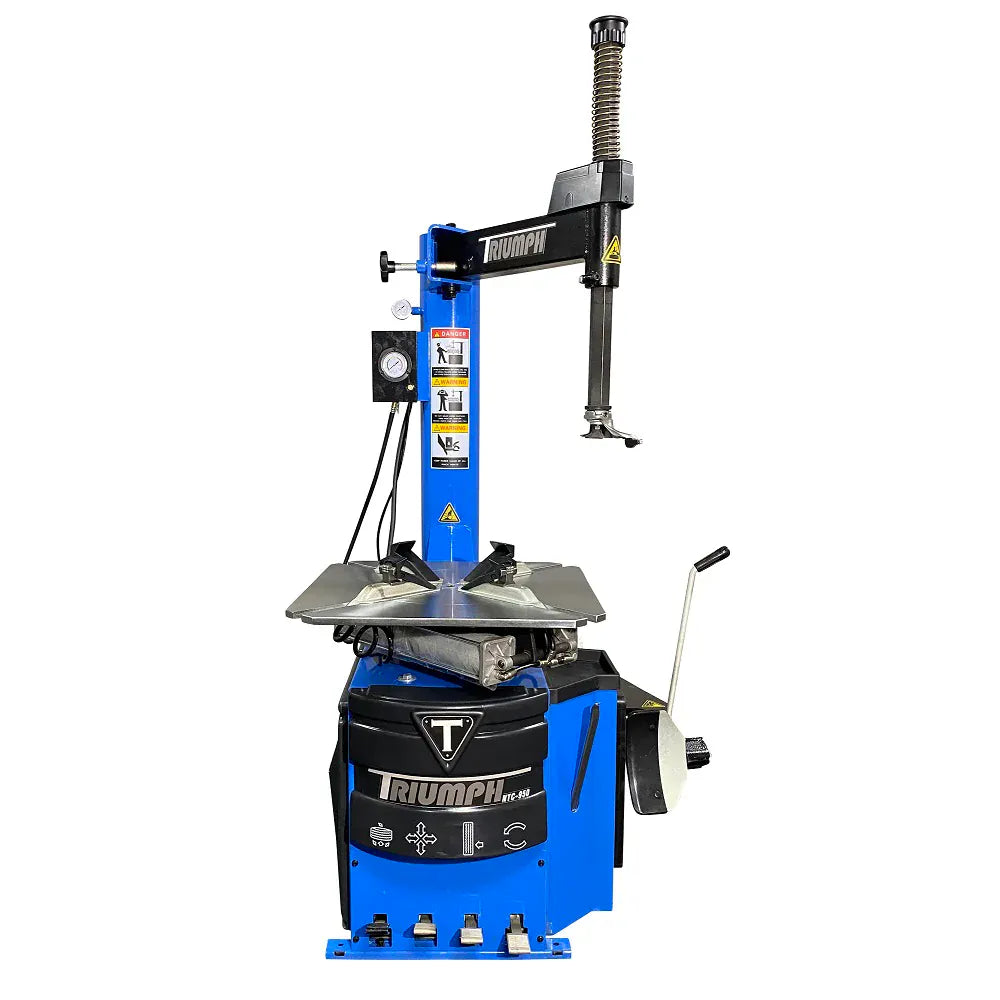

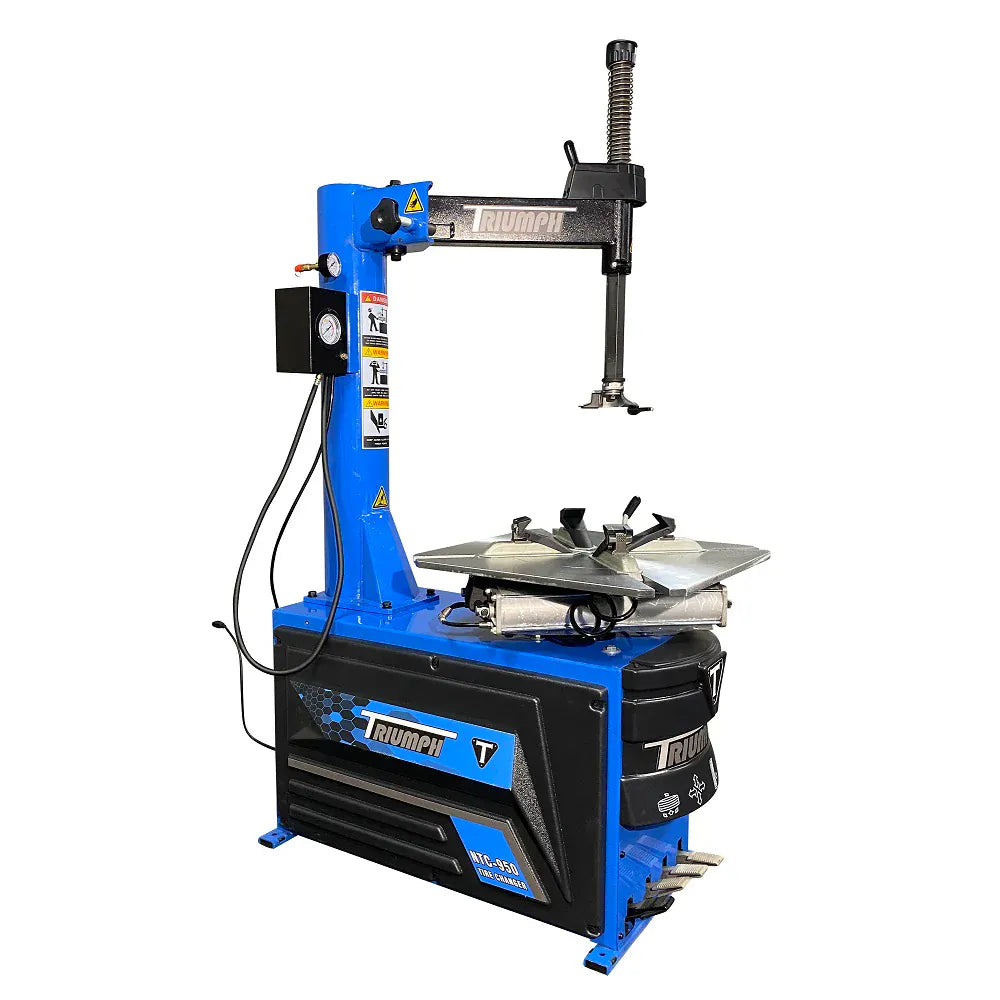

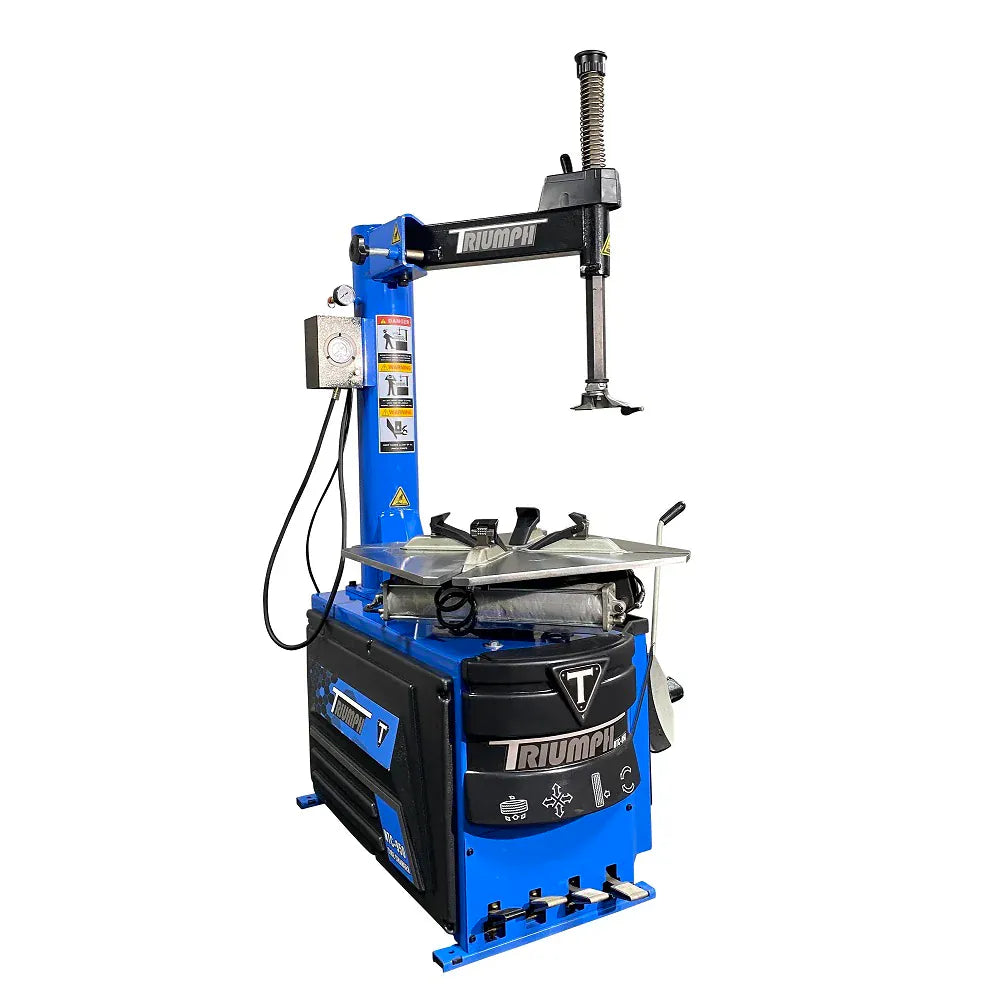

The Triumph NTC-950 is a stand-alone, swing-arm rim-clamp tire changer built for shops getting into tire service without overbuying. It mounts and demounts passenger-car and light-truck tires on a four-jaw clamping turntable, pairing an air-powered 5,500-lb bead breaker with a built-in bead blast system that seats stubborn beads. It runs on standard 110V shop power, so most one- and two-bay shops can plug it in without electrical work.
The NTC-950 ships as a stand-alone clamp machine with no helper arm, start lean, expand later. Its design accepts one or two helper arms as your tire volume grows, and we also stock the machine pre-fitted with a single assist arm as the NTC-950-1, or with two arms as the NTC-950-2, if you would rather buy the expanded configuration up front.
Features
- 5,500-lb bead breaker: an air-powered bead breaker delivers 5,500 lbs of force to break beads on cars and light trucks.
- Bead blast seating system: a built-in air burst helps seat the bead on hard-to-mount tires.

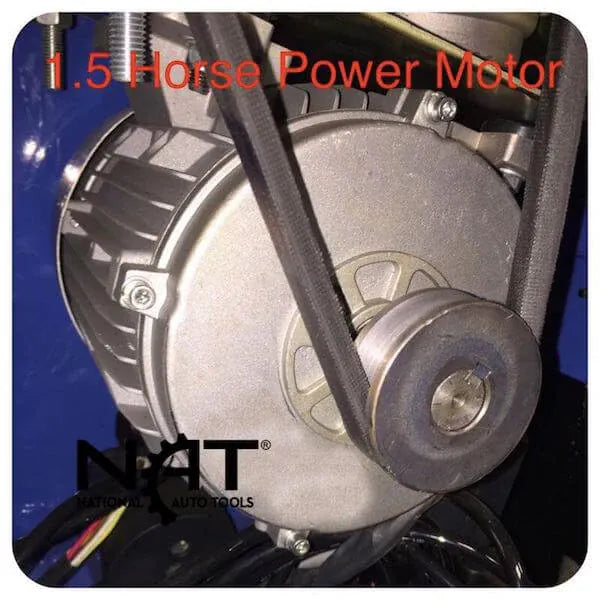

- 1.5 HP motor: drives the clamping turntable for steady commercial use.

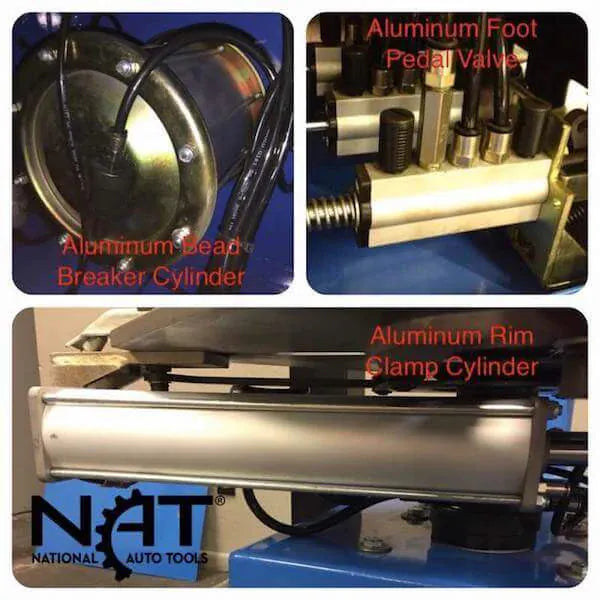

- Aluminum cylinders: aluminum bead-breaker cylinder, rim-clamp cylinder, and foot-pedal valve.

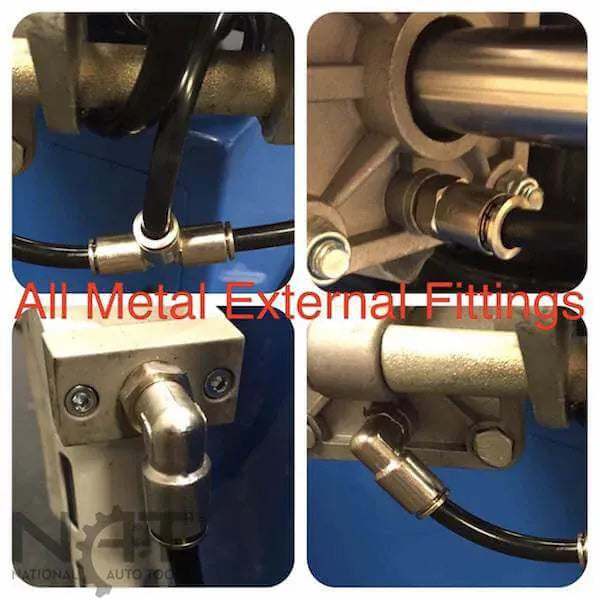

- All-metal external fittings: metal air fittings throughout the external air lines.

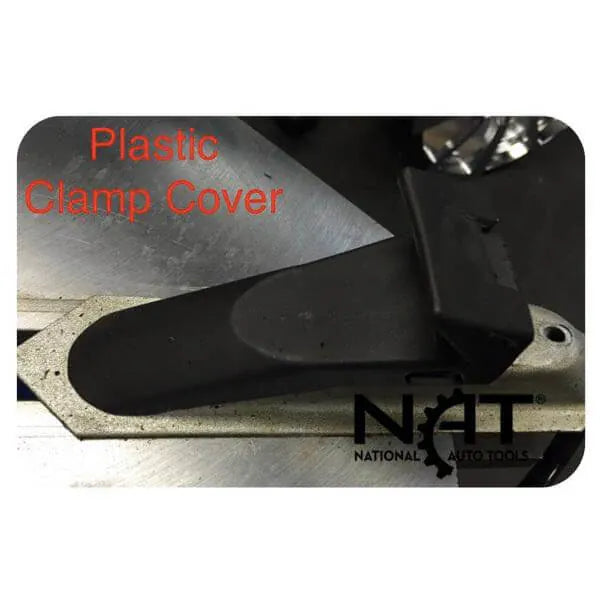

- Plastic clamp covers: shield rims from the steel jaws during clamping.

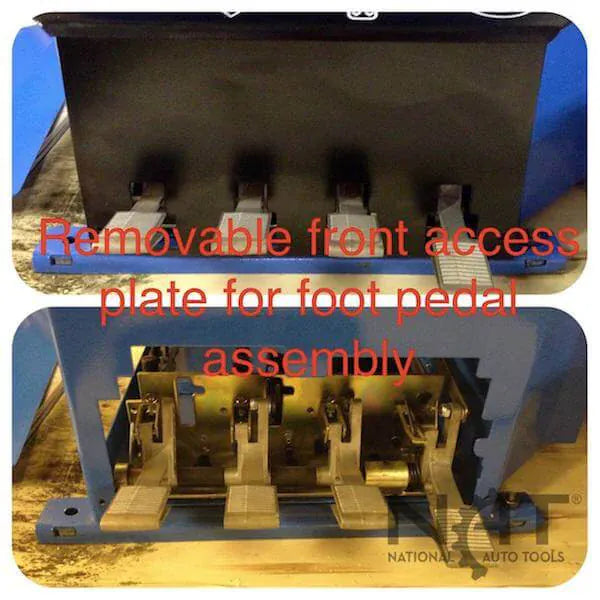

- Removable front access plate: lifts off for direct access to the foot-pedal valve assembly, which simplifies service.

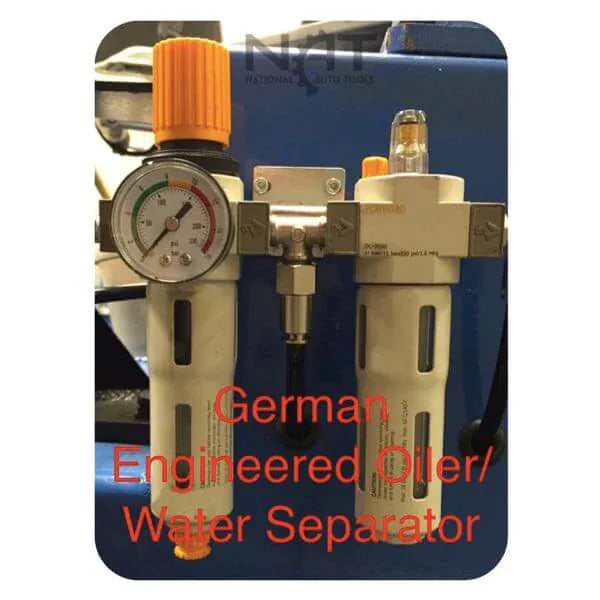

- Oiler and water separator: an inline air filter and regulator with an oiler and water separator conditions incoming shop air.
Compatibility
The NTC-950 is rated for passenger cars and light trucks up to 1 ton, including Load Range C, D, and E tires, on 14- to 24-inch and 16.5-inch wheels. Motorcycle wheels can be serviced with an additional adapter. It is not rated for box trucks, over-the-road trucks, 19.5- or 21.5-inch wheels, implement tires, or run-flat tires, those call for a larger machine in the Triumph tire-changer line.
Specifications
| Triumph NTC-950 Tire Changer Specifications | |
|---|---|
| Inside Clamping | 16-28" |
| Outside Clamping | 14-26" |
| Max Wheel Width | 15" |
| Max Tire Diameter | 43" |
| Bead Breaker Force | 5,500 lbs |
| Bead Blast | Yes |
| Motor | 1.5 HP |
| Max Air Pressure | 120 PSI |
| Voltage | 110V |
| Assembled Size | 56" x 40" x 80" |
| Shipping Size | 51" x 38" x 51" |
| Shipping Weight | 700 lbs |
Warranty
The NTC-950 carries Triumph's standard 1-year parts warranty.
FAQ
Does the NTC-950 include a helper arm?
No. It is a stand-alone clamp machine designed for single-operator use. You can run it as-is and add one or two helper arms later, or order it pre-configured as the NTC-950-1 with one arm or the NTC-950-2 with two.
What tire and wheel sizes does it handle?
It clamps rims from 16 to 28 inches on the inside and 14 to 26 inches on the outside, with a maximum wheel width of 15 inches and a maximum tire diameter of 43 inches, covering passenger cars and light trucks up to 1 ton.
Can it mount run-flat tires?
The stand-alone NTC-950 and single-arm NTC-950-1 are not rated for run-flat tires; the two-arm NTC-950-2 is. If run-flats are part of your regular work, choose the two-arm configuration.
Can it change motorcycle tires?
Yes, with an additional motorcycle adapter.
What power supply does it need?
Standard 110V shop power. The clamping turntable is driven by a 1.5 HP motor.
How does it ship?
It ships by freight in a crate measuring 51 by 38 by 51 inches with a shipping weight of 700 lbs.
